24V | |
|---|---|
Passengers | 1 |
Load Capacity | 225 kg |
Towing Capacity | 905 kg |
Speed | 12 kmh |
Turning Radius | 2000 mm |
36V | |
|---|---|
Passengers | 1 |
Load Capacity | 225 kg |
Towing Capacity | 2720 kg |
Speed | 12 kmh |
Turning Radius | 2000 mm |

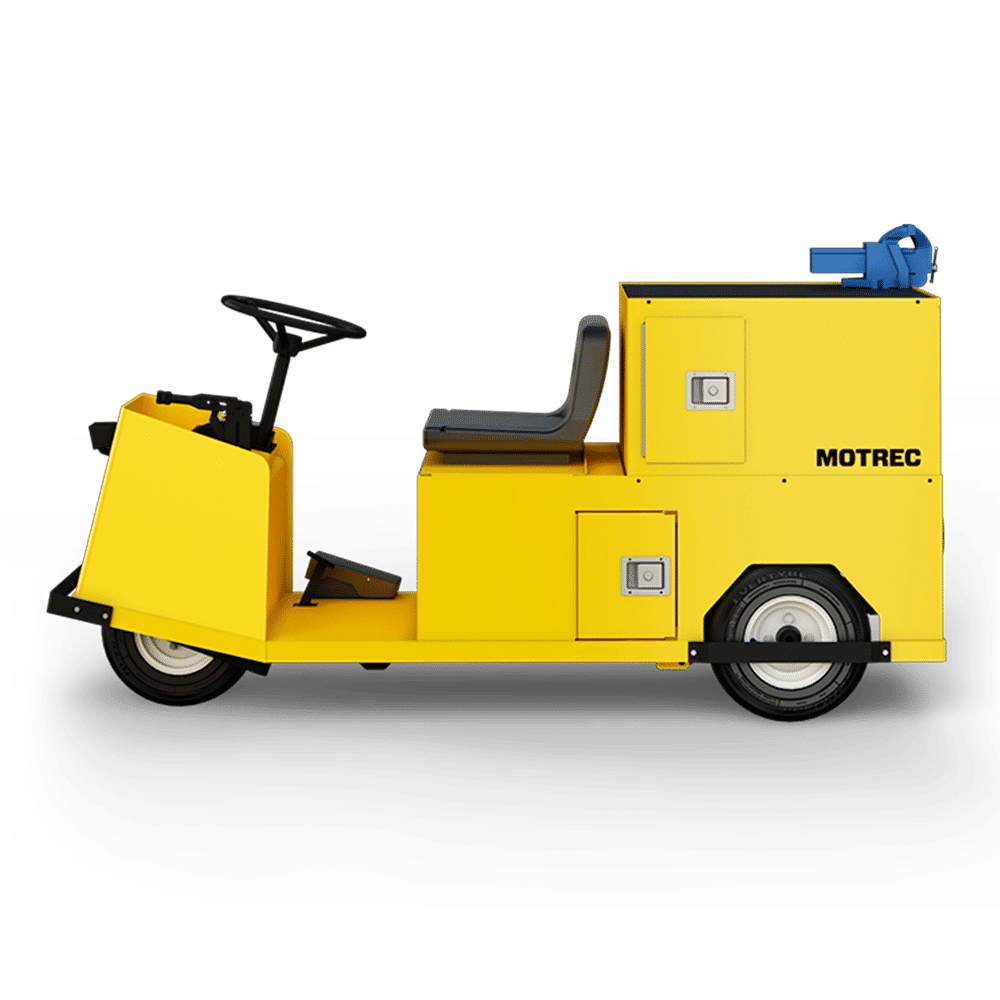

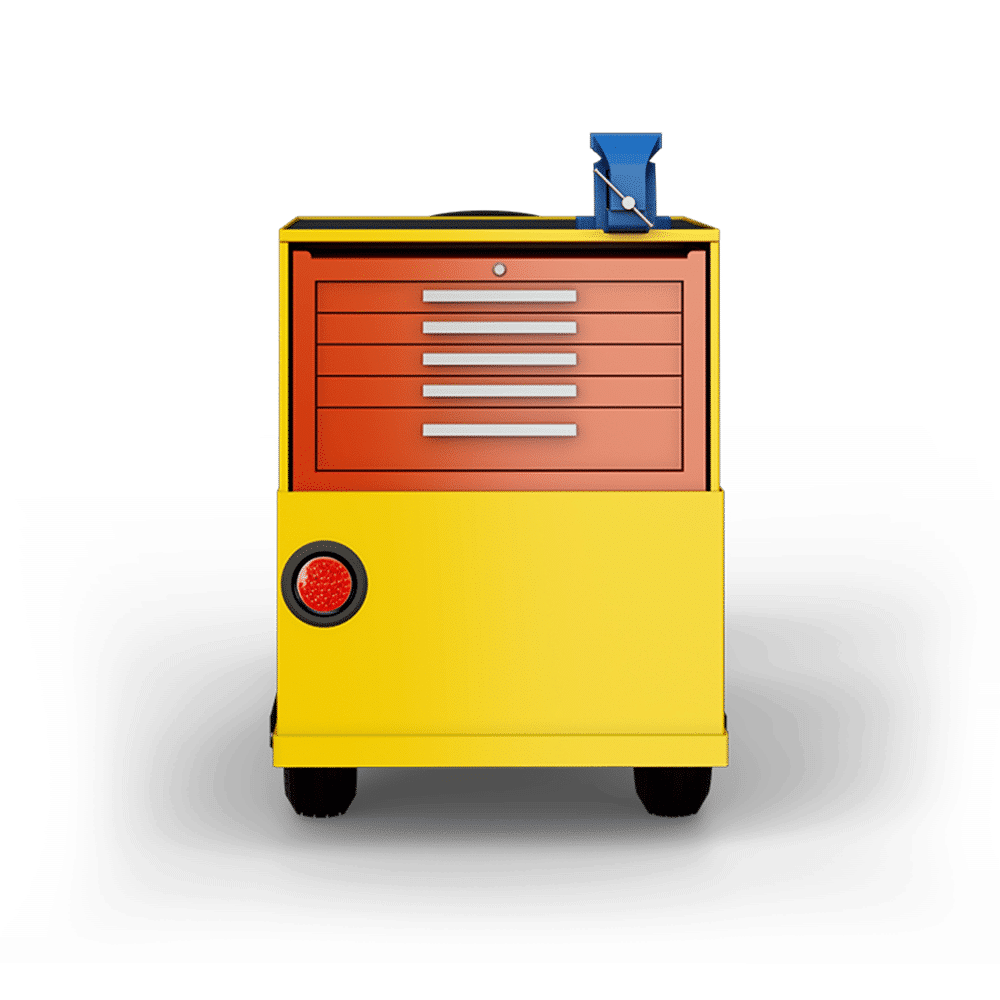

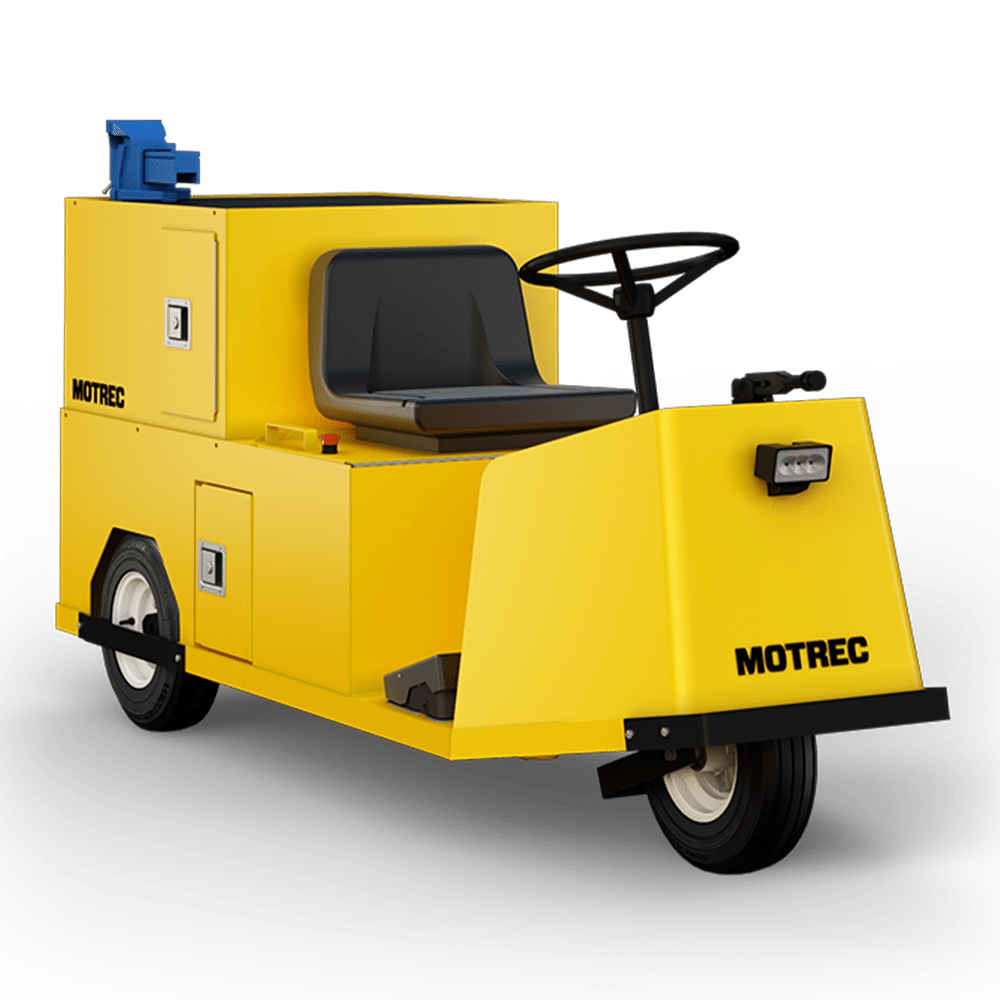

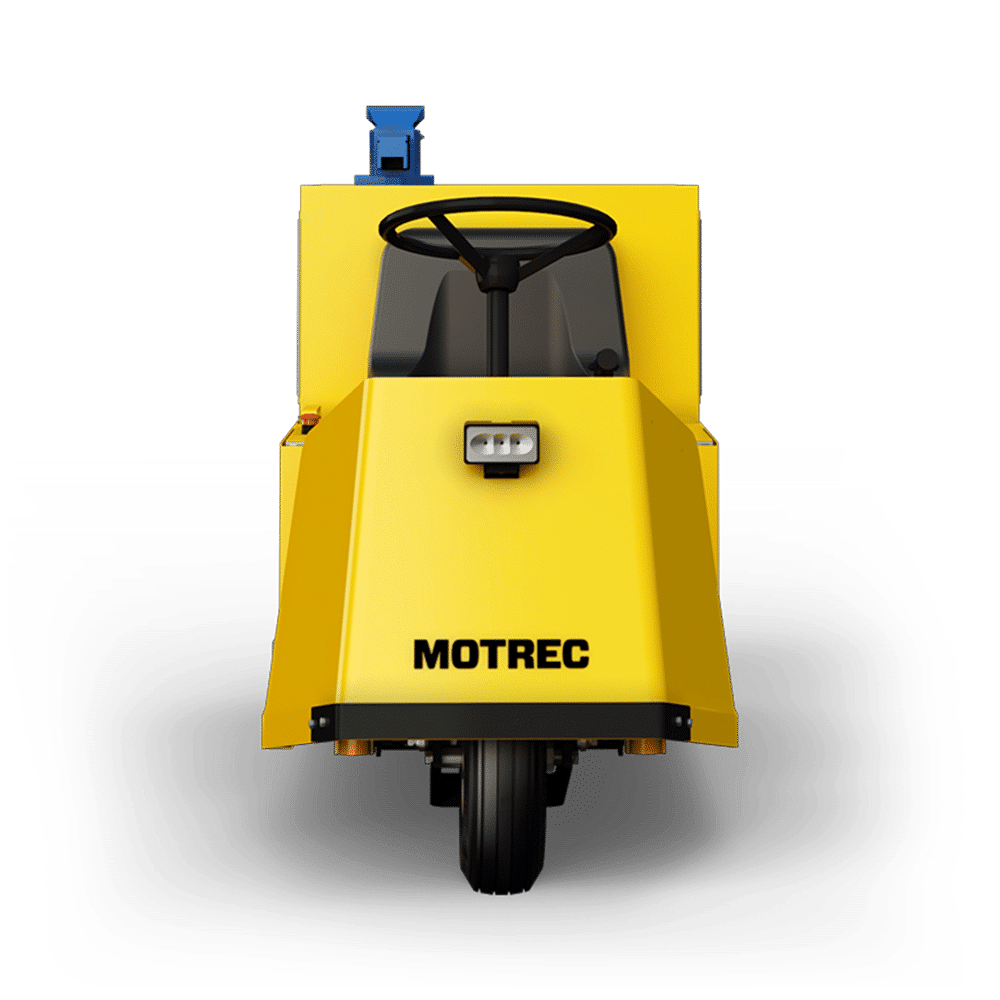

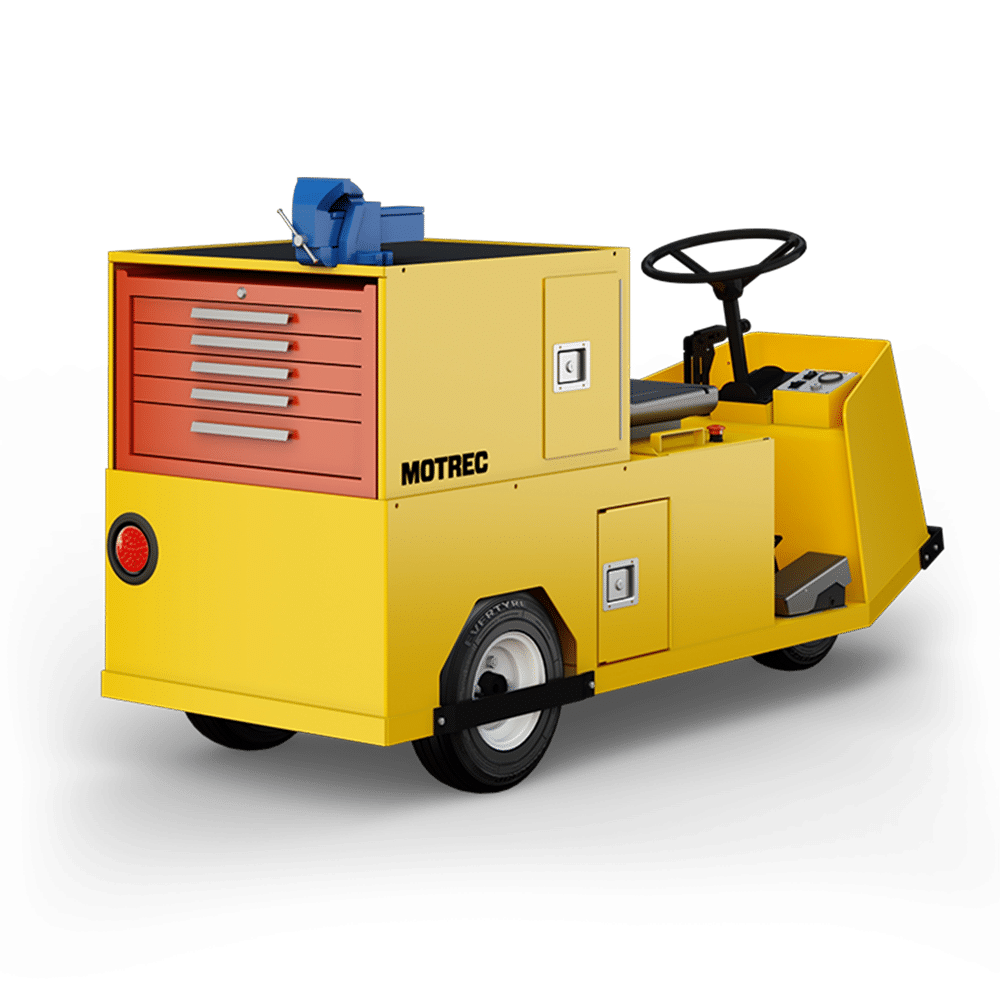

This dependable compact work truck adapts to a wide variety of jobs. Use it to access restricted spaces, or to quickly cover long distances much faster than on foot. The full-sized 5-drawer tool chest and 2 large lockable compartments will hold all the parts and tools you need — and keep them safely where they belong. Standard features also include vice. Our zero-emission electric maintenance trucks can also be customized to your exact needs.
PASSENGER | LOAD CAPACITY | TOWING CAPACITY | SPEED | TURNING RADIUS |
|---|
Specifications and standard equipment are subject to change without notice. | |||||
|---|---|---|---|---|---|
24V | 1 | 225 kg | 905 kg | 12 kmh | 2000 mm |
36V | 1 | 225 kg | 2720 kg | 12 kmh | 2000 mm |
24V | |
|---|---|
Passengers | 1 |
Load Capacity | 225 kg |
Towing Capacity | 905 kg |
Speed | 12 kmh |
Turning Radius | 2000 mm |
36V | |
|---|---|
Passengers | 1 |
Load Capacity | 225 kg |
Towing Capacity | 2720 kg |
Speed | 12 kmh |
Turning Radius | 2000 mm |
24V | 36V |
|---|---|
POWER TRAIN | |||||
|---|---|---|---|---|---|
Motor | |||||
6 HP shunt motor | 10 HP shunt motor | ||||
Drive Axel | |||||
Helical gear Differential | Helical gear Differential | ||||
Transmission | |||||
Direct drive | Direct drive | ||||
Controller | |||||
SEPEX Electronic speed controller | SEPEX Electronic speed controller | ||||
ENERGY | |
|---|---|
Voltage | |
24V | 36V |
Battery | |
Four 6V-225AH batteries | Six 6V-225AH batteries |
Charger | |
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic | High-Frequency Charger, improves battery performance, prevents current surge, 50/60HZ, 110/220VAC |
CHASSIS | |
|---|---|
Body | |
All-steel unibody construction. Powder Coating | All-steel unibody construction. Powder Coating |
Suspension | |
Dual coil springs and shock absorber on rear | Dual coil springs and shock absorber on rear |
Brakes | |
Dual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking | Dual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking |
Wheels | |
4.8×8 LRC pneumatic tires | 4.8×8 LRC pneumatic tires |
Steering | |
Automotive steering wheel | Automotive steering wheel |
Seats | |
Bucket seat on slide adjusters | Bucket seat on slide adjusters |
EQUIPMENT | |||||
|---|---|---|---|---|---|
Lights | |||||
LED headlight & tail/brake light | LED headlight & tail/brake light | ||||
Indicators | |||||
Battery status indicator | Battery status indicator | ||||
Accessories | |||||
Bolt-on bumpers and rear wheel guards, 12V accessories | Bolt-on bumpers and rear wheel guards, 12V accessories | ||||
Safety | |||||
Reverse alarm, deadman seat switch, horn | Reverse alarm, deadman seat switch, horn | ||||
Specifications and standard equipment are subject to change without notice.
Motor | |
|---|---|
24V | 10 HP shunt motor |
24V | 10 HP shunt motor |
Drive Axle | |
|---|---|
24V | Helical gear Differential |
36V | Helical gear Differential |
Transmission | |
|---|---|
24V | Direct drive |
36V | Direct drive |
Controller | |
|---|---|
24V | SEPEX Electronic speed controller |
36V | SEPEX Electronic speed controller |
Voltage | |
|---|---|
24V | 24V |
24V | 36V |
Battery | |
|---|---|
24V | Four 6V-225AH batteries |
36V | Six 6V-225AH batteries |
Charger | |
|---|---|
24V | High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic |
36V | High-Frequency Charger, improves battery performance, prevents current surge, 50/60HZ, 110/220VAC |
Body | |
|---|---|
24V | All-steel unibody construction. Powder Coating |
36V | All-steel unibody construction. Powder Coating. |
Suspension | |
|---|---|
24V | Dual coil springs and shock absorber on rear |
24V | Dual coil springs and shock absorber on rear |
Brakes | |
|---|---|
24V | Dual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking |
36V | Dual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking |
Wheels | |
|---|---|
24V | 4.8×8 LRC pneumatic tires |
36V | 4.8×8 LRC pneumatic tires |
Steering | |
|---|---|
24V | Automotive steering wheel |
36V | Automotive steering wheel |
Seats | |
|---|---|
24V | Bucket seat on slide adjusters |
36V | Bucket seat on slide adjusters |
Lights | |
|---|---|
24V | LED headlight & tail/brake light |
36V | LED headlight & tail/brake light |
Indicators | |
|---|---|
24V | Battery status indicator |
36V | Battery status indicator |
Accessories | |
|---|---|
24V | Bolt-on bumpers and rear wheel guards, 12V accessories |
36V | Bolt-on bumpers and rear wheel guards, 12V accessories |
Safety | |
|---|---|
24V | Reverse alarm, deadman seat switch, horn |
36V | Reverse alarm, deadman seat switch, horn |
Specifications and standard equipment are subject to change without notice.
