WCB Crane Bins – 2000kg Load Capacity

WCB Crane Bins - 2000kg Load Capacity

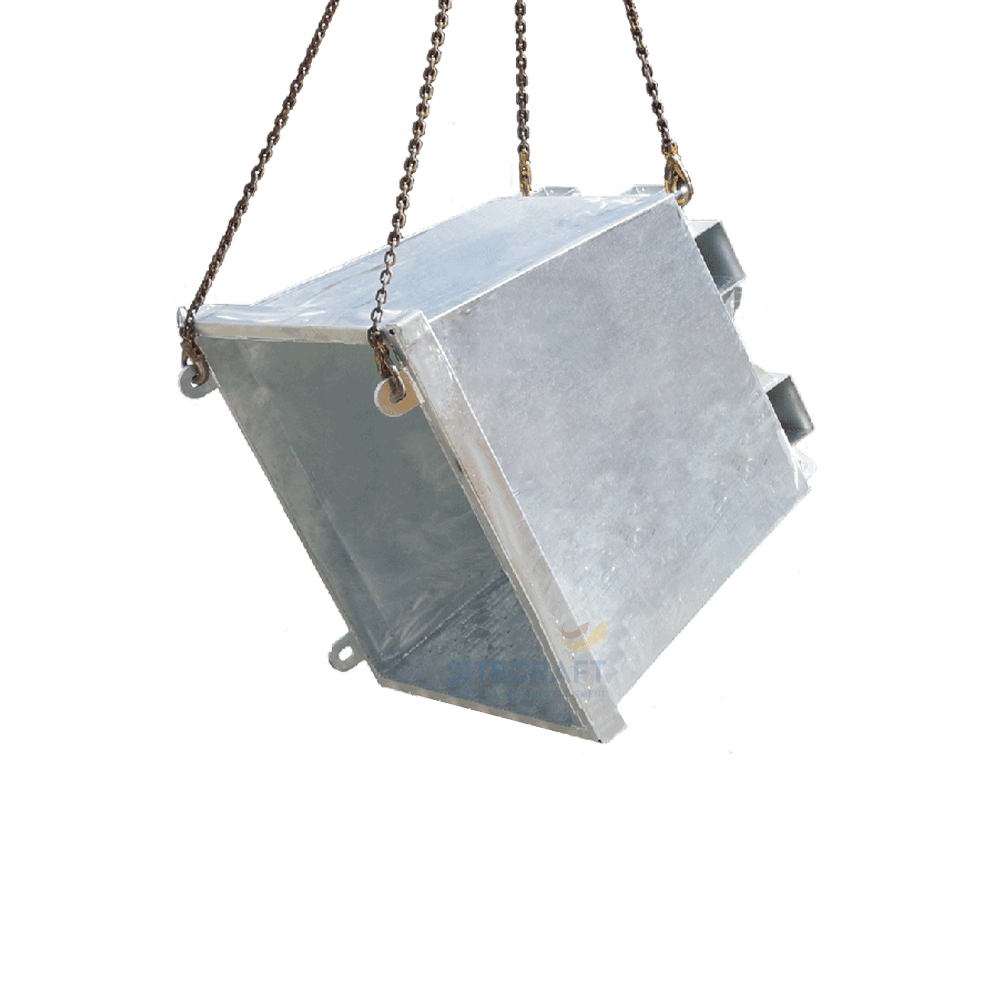

These crane bins can upended to empty content in two ways.  Firstly by using a crane and the bin's crane lugs.  Secondly, the bins have 4-way fork pockets so a forklift with rotating forks can be used.  These bins nest for compact storage and transport and they have a zinc coated finish.  An optional caster wheel kit is available.

Product Code Product Name External Dimensions (mm)Fork Pocket Centre (mm)Fork Pocket Size (mm)Load Capacity (kg)Weight (kg) Price
3001465 WCB Crane Bin 0.85cu/m 1156L x 1156W x 1100H  450  Pair A.160x95 Pair B.160x75  2000  162
3001572 WCB Crane Bin 1.3cu/m 1716L x 1156W x 1100H  450  Pair A.160x95 Pair B.160x75  2000  240
3001473 WCB Crane Bin 2.5cu/m 2316L x 1516W x 1100H  790  Pair A.160x95 Pair B.160x75  2000  335

Specifications

Product Code 3001465 3001572 3001473
Product Name WCB Crane Bin 0.85cu/m WCB Crane Bin 1.3cu/m WCB Crane Bin 2.5cu/m
External Dimensions (mm) 1156L x 1156W x 1100H 1716L x 1156W x 1100H 2316L x 1516W x 1100H
Fork Pocket Centre (mm) 450 450 790
Fork Pocket Size (mm) Pair A.160×95 Pair B.160×75 Pair A.160×95 Pair B.160×75 Pair A.160×95 Pair B.160×75
Load Capacity (kg) 2000 2000 2000
Weight (kg) 162 240 335

Specifications

Product Code 3001465 3001572 3001473
Product Name WCB Crane Bin 0.85cu/m WCB Crane Bin 1.3cu/m WCB Crane Bin 2.5cu/m
External Dimensions (mm) 1156L x 1156W x 1100H 1716L x 1156W x 1100H 2316L x 1516W x 1100H
Fork Pocket Centre (mm) 450 450 790
Fork Pocket Size (mm) Pair A.160×95 Pair B.160×75 Pair A.160×95 Pair B.160×75 Pair A.160×95 Pair B.160×75
Load Capacity (kg) 2000 2000 2000
Weight (kg) 162 240 335
