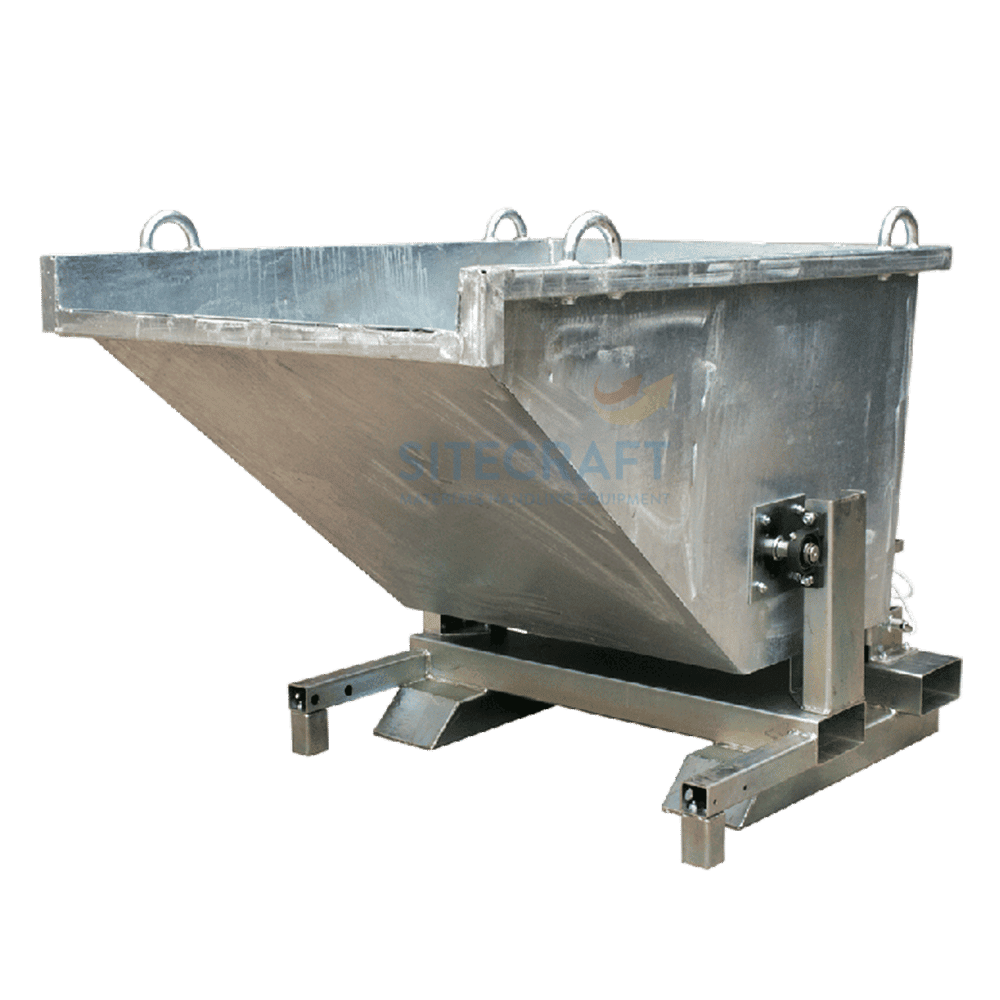

WRF Roll-Over Forklift Tipping Bins

Code: 3001485

The WRF Tipping Bin has been designed for a smooth tipping action with minimal impact during emptying. Side bearings prevent the bin being dislodged during tipping as is common with roll over style bins. The cut away front design makes this bin ideal for tipping liquids. The release mechanism is activated by the forklift operator pulling a pull cord from the driver’s seat. Four-way fork pocket allows entry for sideways tipping action.  Crane lugs and drain plug are fitted as standard and this bin has a galvanised finish.

Working Load Limit (kg): 1500
Fork Pocket Centres (mm): 850
Fork Pocket Size (mm): 185 x 65

Specifications

Product Code 3001485
Product Name WRF Roll-Over Forklift Tipping Bins
External Dimensions (mm) 1690L x 1156W x 1238H
Net Weight (kg) 235

Specifications

Product Code 3001485
Product Name WRF Roll-Over Forklift Tipping Bins
External Dimensions (mm) 1690L x 1156W x 1238H
Net Weight (kg) 235
