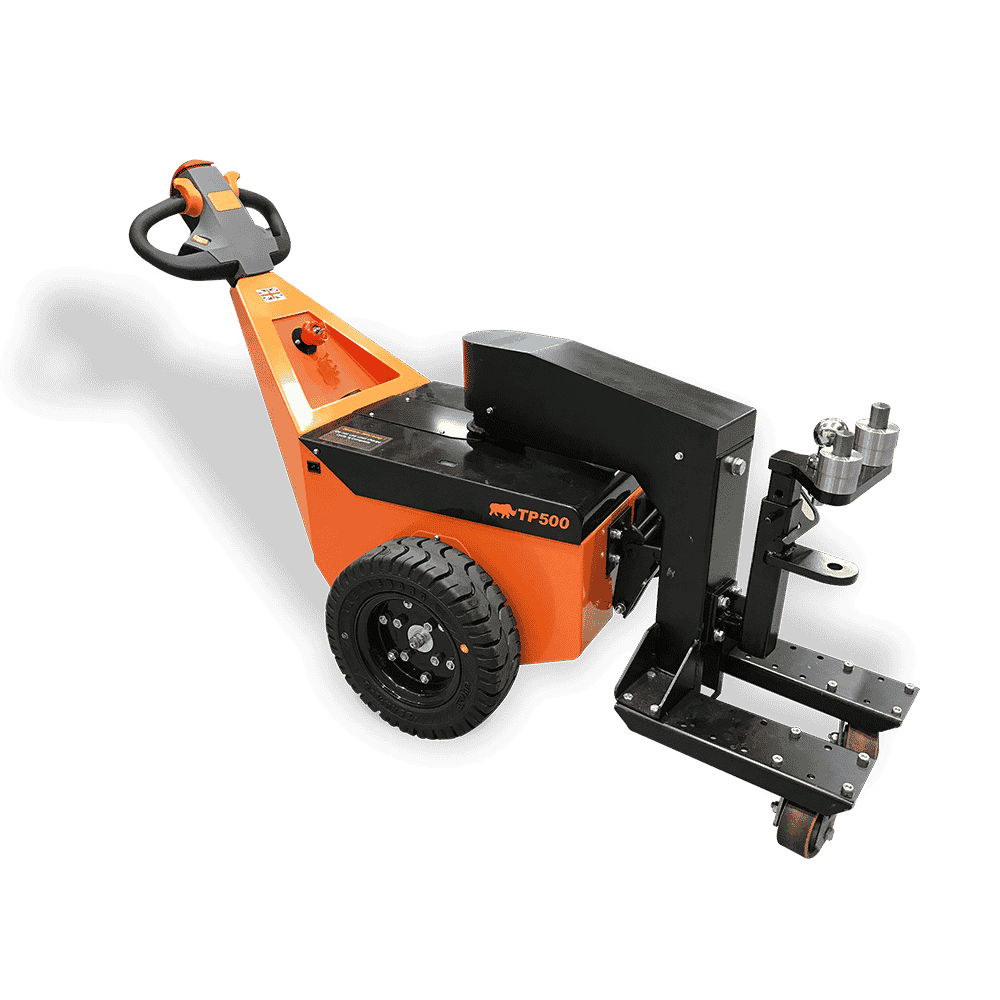

Logistec TP500 All-Terrain Tow Tug – 7,500Kg Capacity

Code: 8461002

The logistec powered tug features a brushless motor which allows it to provide a number of market leading features. Firstly, the brushless motor has superior holding abilities, meaning that the tug will brake faster with a load behind it and it will also provide superior park braking when stationary. Secondly, the brushless motor runs cooler, meaning that the motor will last longer, work in hotter climates. It also allows proper sealing of the motor compartment, making higher ip ratings achievable. This makes operation possible in wet conditions. Thirdly, the brushless motor is heavier, giving the needed ballast for the tug which provides excellent traction. A smart control unit monitors the motor to ensure it provides trouble-free service and it flags an alarm when service is due. The control unit displays fault codes to simplify any diagnosis of faults. It can also send the tug into limp mode if it detects a potentially dangerous fault and this function can also be set if service is overdue.

Product Features

Gearbox: Transaxle 24V
Charger Type: On-Board Auto Voltage Detect
Input: 240V
Recharge Time: 8 Hours
Trolley On Rails Pushing Capacity: 50,000kg
Trolley On Casters Pushing Capacity: 7,500kg
Draw Bar Pull: 5000N

Specifications

Product Code 8461002
Product Name Logistec TP500 All-Terrain Tow Tug – 7,500Kg Capacity
Capacity (kg) 7,500
Motor (kW) 24V 1500W
Power Source Battery Capacity: 140A/h
Speed (kph) 6
Weight (kg) 200

Specifications

Product Code 8461002
Product Name Logistec TP500 All-Terrain Tow Tug – 7,500Kg Capacity
Capacity (kg) 7,500
Motor (kW) 24V 1500W
Power Source Battery Capacity: 140A/h
Speed (kph) 6
Weight (kg) 200
