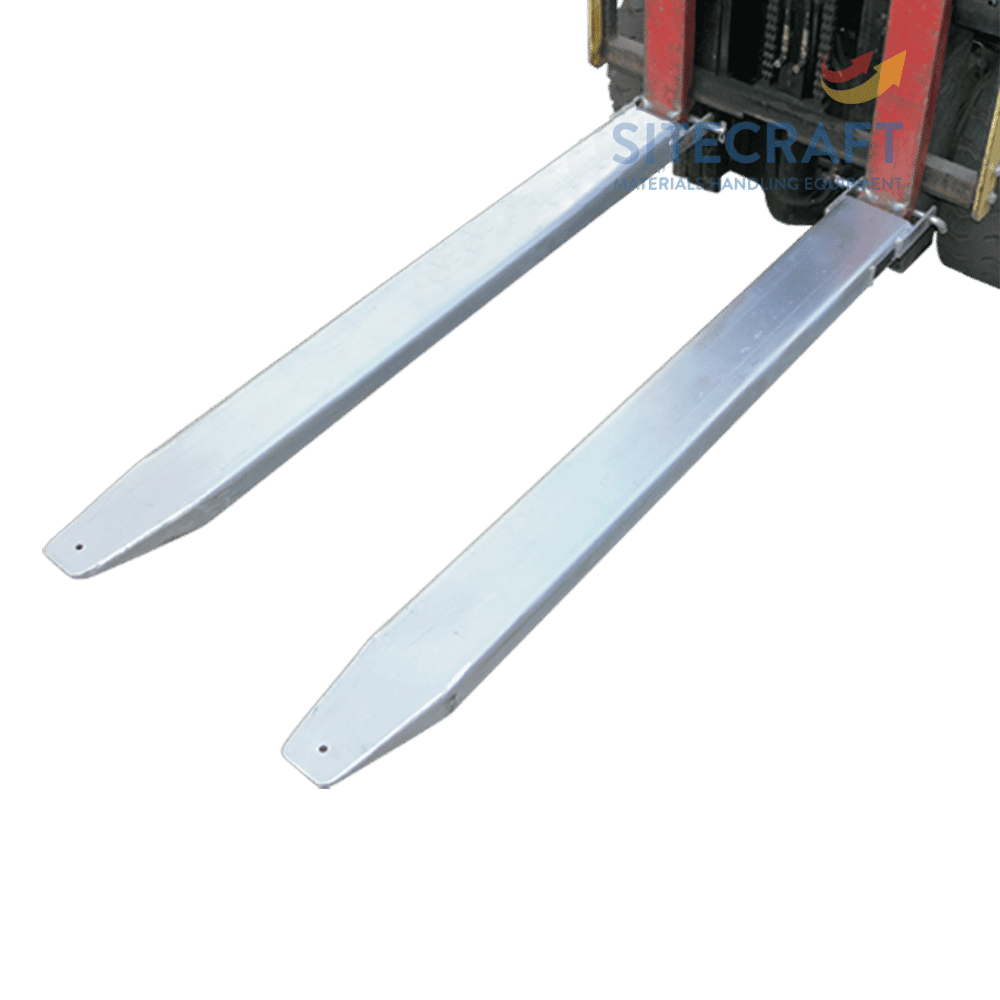

Fork Extension Slippers

Fork extensions slippers extend the versatility of the fork truck. These slim profile slippers have been designed and manufactured in accordance with AS2359.15 which requires the slippers used for general usage to be not longer than 167% of the supporting tine's length. If the slippers are longer than 167% beyond the tine length, the usage must be restricted to their specific application.Made from high tensile grade steel

Supplied with instructions
High safe working load (SWL) rating
Supplied with toggle locking pins
Fitted with rating plate
Zinc plated for corrosion protection,
custom built units have a painted finish
Product Code Product Name Length (mm)Net Weight (kg)Safe Working Load (Kg)To Suit Max Tine Size Price
3001039 Fork Extension Slippers 1600  50  3000  100 x 45
3001040 Fork Extension Slippers 1800  56  3000  100 x 45
3001041 Fork Extension Slippers 2100  66  3000  100 x 45
3001042 Fork Extension Slippers 2400  75  3000  100 x 45
3001043 Fork Extension Slippers 1600  60  4500  130 x 50
3001044 Fork Extension Slippers 1800  66  4500  130 x 50
3001045 Fork Extension Slippers 2100  78  4500  130 x 50
3001046 Fork Extension Slippers 2400  88  4500  130 x 50
3001047 Fork Extension Slippers 1600  91  6500  155 x 55
3001048 Fork Extension Slippers 1800  102  6500  155 x 55
3001049 Fork Extension Slippers 2100  119  6500  155 x 55
3001050 Fork Extension Slippers 2400  136  6500  155 x 55
3001051 Fork Extension Slippers 1800  133  8500  160 x 65
3001052 Fork Extension Slippers 2100  155  8500  160 x 65
3001053 Fork Extension Slippers 2400  177  8500  160 x 65
3001054 Fork Extension Slippers 3000  221  8500  160 x 65
3001169 Fork Extension Slippers 1800  170  8000  Custom Built to suit
3001170 Fork Extension Slippers 2100  200  8000  Custom Built to suit
3001171 Fork Extension Slippers 2400  220  8000  Custom Built to suit
3001172 Fork Extension Slippers 3000  280  8000  Custom Built to suit
3001173 Fork Extension Slippers 2100  380  12000  Custom Built to suit
3001174 Fork Extension Slippers 2400  430  12000  Custom Built to suit
3001175 Fork Extension Slippers 3000  540  12000  Custom Built to suit
3001176 Fork Extension Slippers 3500  630  12000  Custom Built to suit
3001177 Fork Extension Slippers 2400  520  16000  Custom Built to suit
3001178 Fork Extension Slippers 3000  650  16000  Custom Built to suit
3001179 Fork Extension Slippers 3500  760  16000  Custom Built to suit
3001256 Fork Extension Slippers 3000  170  6500  155 x 55

Specifications

Product Code 3001039 3001040 3001041 3001042 3001043 3001044 3001045 3001046 3001047 3001048 3001049 3001050 3001051 3001052 3001053 3001054 3001169 3001170 3001171 3001172 3001173 3001174 3001175 3001176 3001177 3001178 3001179 3001256
Product Name Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers
Length (mm) 1600 1800 2100 2400 1600 1800 2100 2400 1600 1800 2100 2400 1800 2100 2400 3000 1800 2100 2400 3000 2100 2400 3000 3500 2400 3000 3500 3000
Net Weight (kg) 50 56 66 75 60 66 78 88 91 102 119 136 133 155 177 221 170 200 220 280 380 430 540 630 520 650 760 170
Safe Working Load (Kg) 3000 3000 3000 3000 4500 4500 4500 4500 6500 6500 6500 6500 8500 8500 8500 8500 8000 8000 8000 8000 12000 12000 12000 12000 16000 16000 16000 6500
To Suit Max Tine Size 100 x 45 100 x 45 100 x 45 100 x 45 130 x 50 130 x 50 130 x 50 130 x 50 155 x 55 155 x 55 155 x 55 155 x 55 160 x 65 160 x 65 160 x 65 160 x 65 Custom Built to suit Custom Built to suit Custom Built to suit Custom Built to suit Custom Built to suit Custom Built to suit Custom Built to suit Custom Built to suit Custom Built to suit Custom Built to suit Custom Built to suit 155 x 55

Specifications

Product Code 3001039 3001040 3001041 3001042 3001043 3001044 3001045 3001046 3001047 3001048 3001049 3001050 3001051 3001052 3001053 3001054 3001169 3001170 3001171 3001172 3001173 3001174 3001175 3001176 3001177 3001178 3001179 3001256
Product Name Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers Fork Extension Slippers
Length (mm) 1600 1800 2100 2400 1600 1800 2100 2400 1600 1800 2100 2400 1800 2100 2400 3000 1800 2100 2400 3000 2100 2400 3000 3500 2400 3000 3500 3000
Net Weight (kg) 50 56 66 75 60 66 78 88 91 102 119 136 133 155 177 221 170 200 220 280 380 430 540 630 520 650 760 170
Safe Working Load (Kg) 3000 3000 3000 3000 4500 4500 4500 4500 6500 6500 6500 6500 8500 8500 8500 8500 8000 8000 8000 8000 12000 12000 12000 12000 16000 16000 16000 6500
To Suit Max Tine Size 100 x 45 100 x 45 100 x 45 100 x 45 130 x 50 130 x 50 130 x 50 130 x 50 155 x 55 155 x 55 155 x 55 155 x 55 160 x 65 160 x 65 160 x 65 160 x 65 Custom Built to suit Custom Built to suit Custom Built to suit Custom Built to suit Custom Built to suit Custom Built to suit Custom Built to suit Custom Built to suit Custom Built to suit Custom Built to suit Custom Built to suit 155 x 55
