2.5 Tonne Tilting Forklift Jib – Short

Code: 3001214

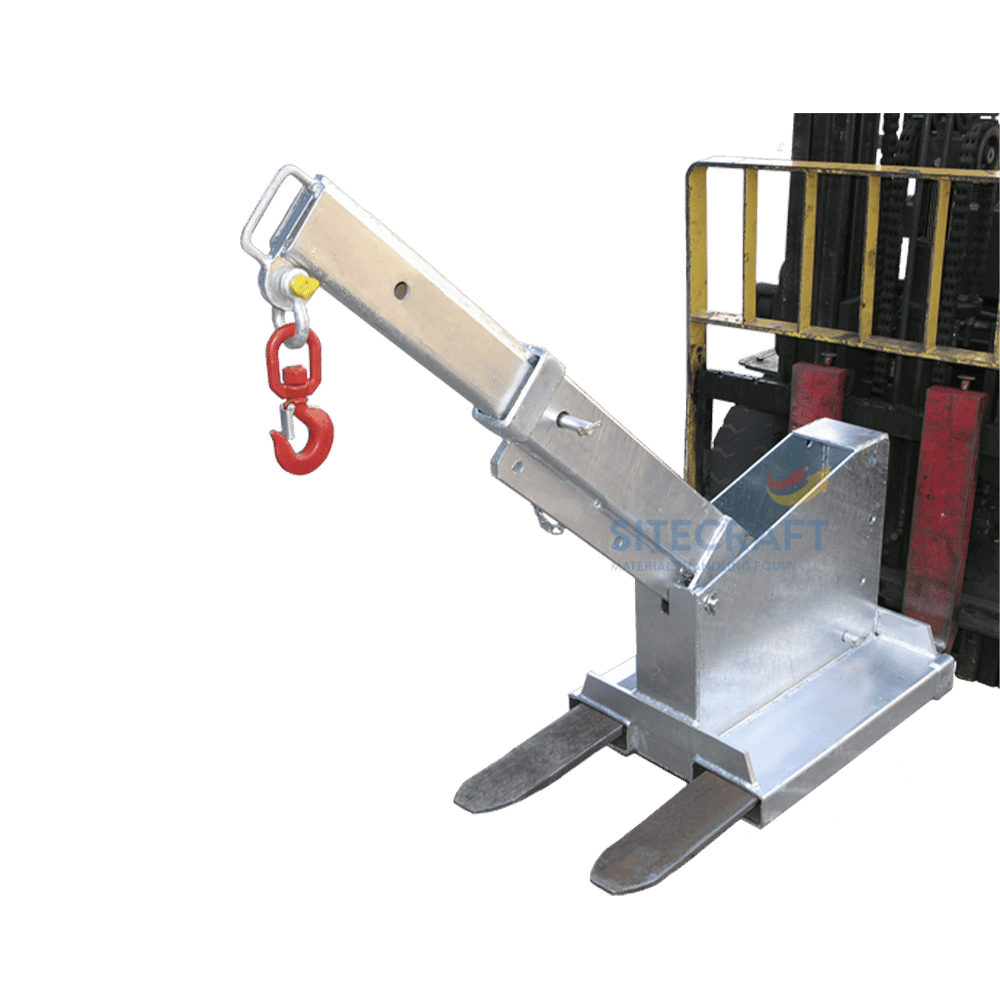

The 2.5 Tonne Tilting Jib is designed with a tilt facility allowing extra height to compensate for the hook and sling length lost when lifting with a Jib attachment. A maximum height of 1.4 metres can be gained while the Jib can be fully extended to 2.02 metres. This slip-on attachment is held to the Forklift by a safety chain. The Jibs overall length when closed is 1.35 metres. The standard finish is Zinc Plated.

Note: The lift capacities stated are a structural rating for the jib only, and make no claim as to the suitability of the forklift. Actual forklift capacity may be less than the structural capacity of the jib. Check with the forklift supplier for actual working capacities. In accordance with AS2359.1, when lifting with a jib attachment, the net lifting capacity should be 0.8 times the rating of the forklift, to allow for a swinging load.

Safe Working Load: (SWL) 2500kg Max
Unit Weight: 130kg
Load Centre: 825mm
Pocket Size: 165 x 65mm
Pocket Centres: 337 mm
Horizontal Centre of Gravity: 650mm
Vertical Centre of Gravity: 300mm

Specifications

Product Code 3001214
Product Name Short Tilting Jibs
Safe Working Load (Kg) 2500

Specifications

Product Code 3001214
Product Name Short Tilting Jibs
Safe Working Load (Kg) 2500
