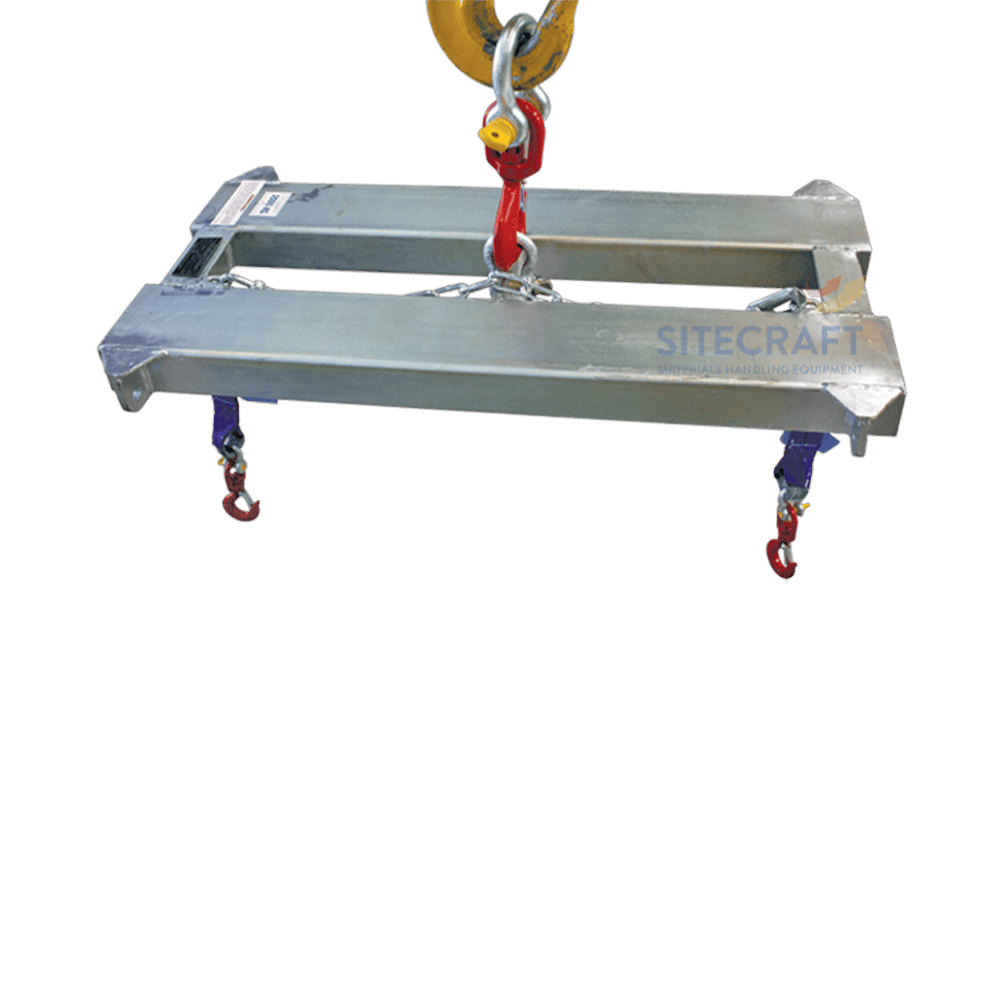

This jib is used for the removal and placement of battery packs into electric operated forklifts. Supplied with multiple lifting points and supplied with four slings, this unit can be used for both two-point and four-point lift battery packs.
Note: The lift capacities stated are a structural rating for the jib only, and make no claim as to the suitability of the forklift. Actual forklift capacity may be less than the structural capacity of the jib. Check with the forklift supplier for actual working capacities. In accordance with AS2359.1, when lifting with a jib attachment, the net lifting capacity should be 0.8 times the rating of the forklift, to allow for a swinging load.
Product Code | 3001490 |
Product Name | Battery Removal Jib |
Fork Pocket Centre (mm) | 285 |
Fork Pocket Size (mm) | 165 x 65 |
Net Weight (kg) | 64 |
Safe Working Load (Kg) | 2000 |
Product Code | 3001490 |
Product Name | Battery Removal Jib |
Fork Pocket Centre (mm) | 285 |
Fork Pocket Size (mm) | 165 x 65 |
Net Weight (kg) | 64 |
Safe Working Load (Kg) | 2000 |
