2.5 Tonne General Purpose Fixed Jibs – Long

Code: 3001059

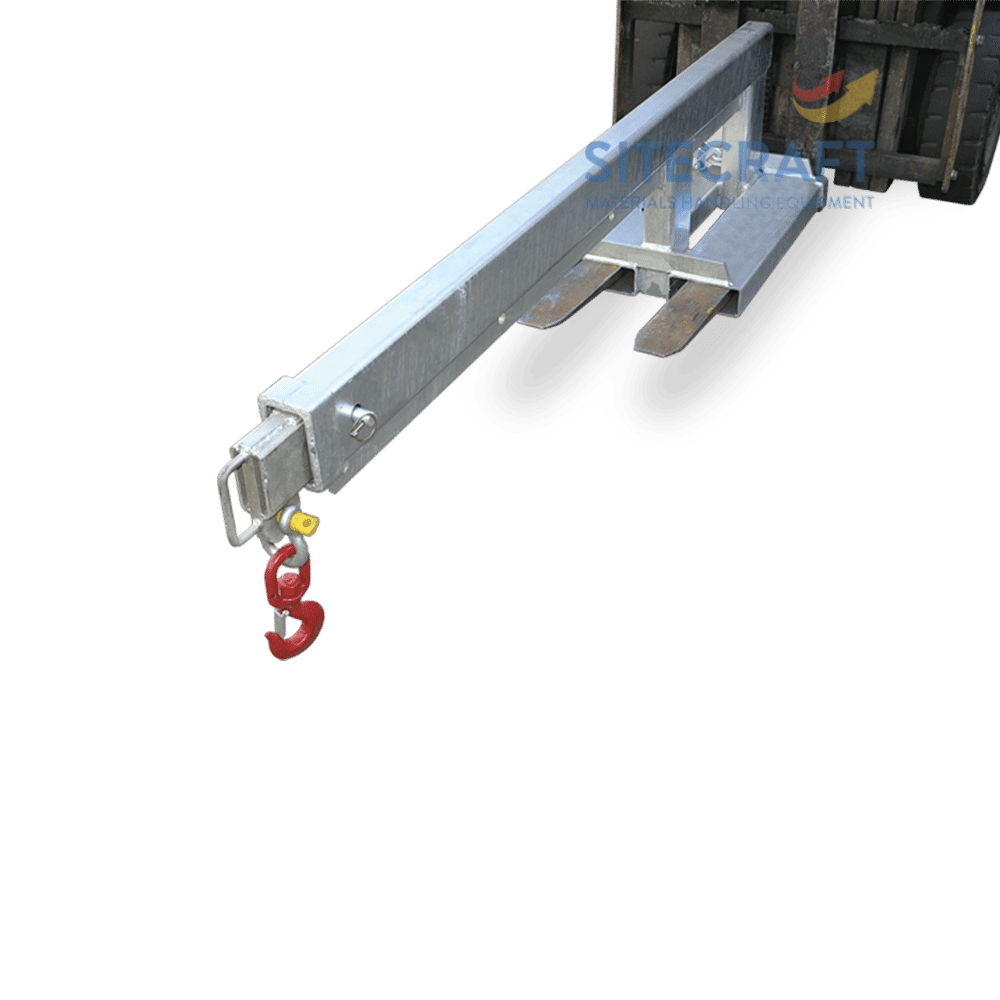

The type General Purpose Fixed Jib (Long) is designed as an affordable general purpose Jib with a 3.5 metre reach when fully extended. This slip-on attachment is held to the forklift by a safety chain. The overall length of the jib when closed is 2.1 metres. The standard finish is Zinc Plated.

Note: The lift capacities stated are a structural rating for the jib only, and make no claim as to the suitability of the forklift. Actual forklift capacity may be less than the structural capacity of the jib. Check with the forklift supplier for actual working capacities.In accordance with AS2359.1, when lifting with a jib attachment, the nett lifting capacity should be 0.8 times the rating of the forklift, to allow for a swinging load.

Safe Working Load: (SWL) 2500kg Max
Unit Weight: 135kg
Load Centre: 950mm
Pocket Size: 185 x 65mm
Pocket Centres: 275 mm
Horizontal Centre of Gravity: 1160mm
Vertical Centre of Gravity: 185mm

Specifications

Product Code 3001059
Product Name 2.5 Tonne General Purpose fixed jibs

Specifications

Product Code 3001059
Product Name 2.5 Tonne General Purpose fixed jibs
