4.75 Tonne General Purpose Fixed Jibs

4.75 Tonne General Purpose Fixed Jibs

Code: 3001060

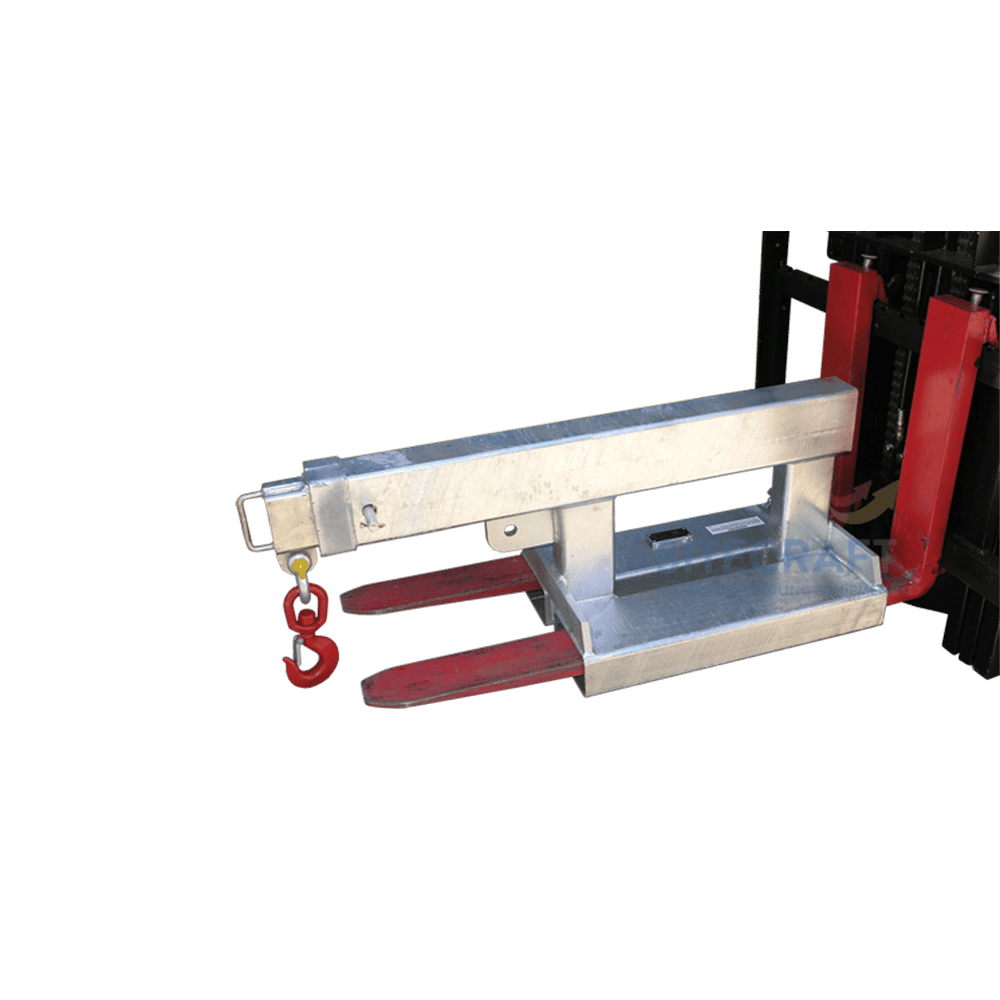

The General Purpose Fixed Jib (Short) is designed as an affordable general purpose Jib able to manoeuvre in confined spaces, with a 1.96 metre reach when fully extended. This slip-on Forklift attachment is held to the Forklift by a safety chain. The Jibs overall length when closed is 1.3 metres. The standard finish is Zinc Plated.
Note: The lift capacities stated are a structural rating for the jib only, and make no claim as to the suitability of the forklift. Actual forklift capacity may be less than the structural capacity of the jib. Check with the forklift supplier for actual working capacities.In accordance with AS2359.1, when lifting with a jib attachment, the nett lifting capacity should be 0.8 times the rating of the forklift, to allow for a swinging load.

Safe Working Load (SWL) 4750kg Max
Unit Weight 130kg
Load Centre 780mm
Pocket Size 185 x 75mm
Pocket Centres 275 mm
Horizontal Centre of Gravity: 700mm
Vertical C of G 165mm
Safe working load: 5000kg maximum capacity when jib is retracted to ist's shortest length. Ask Sitecraft for safe working load for per position table.

Specifications

Product Code 3001060
Product Name 5 Tonne General Purpose Fixed Jibs

Specifications

Product Code 3001060
Product Name 5 Tonne General Purpose Fixed Jibs
