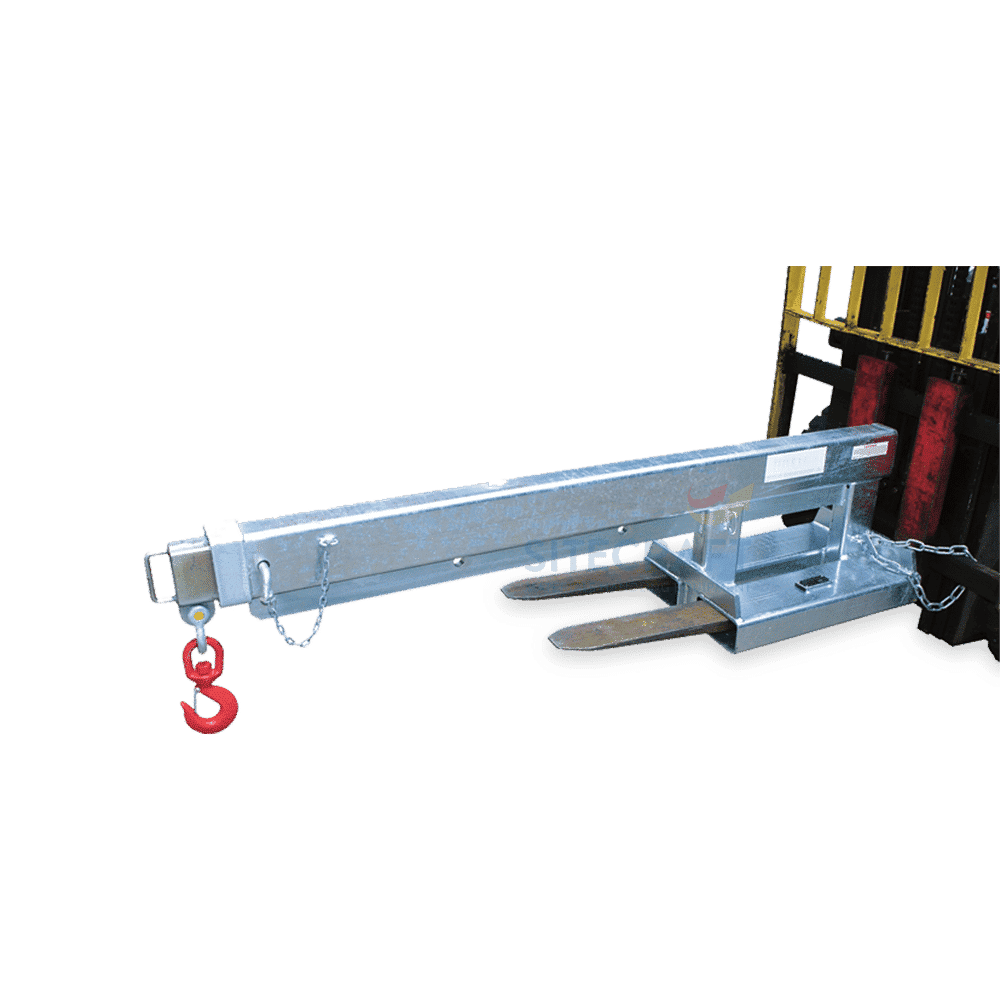

4.75 Tonne General Purpose Fixed Jib – Long

4.75 Tonne General Purpose Fixed Jib - Long

Code: 3001058

5 Tonne General Purpose Fixed Jib available with either a 1.96 metre or 3.5 metre reach when extended.

Note: The lift capacities stated are a structural rating for the jib only, and make no claim as to the suitability of the forklift. Actual forklift capacity may be less than the structural capacity of the jib. Check with the forklift supplier for actual working capacities. In accordance with AS2359.1, when lifting with a jib attachment, the net lifting capacity should be 0.8 times the rating of the forklift, to allow for a swinging load.

Fork pocket size: 185 x 75mm
Fork pocket centres: 275mm
Galvanised finish
Safe working load: 5000kg maximum capacity

Specifications

Product Code 3001058
Product Name 5 Tonne General Purpose Fixed Jibs

Specifications

Product Code 3001058
Product Name 5 Tonne General Purpose Fixed Jibs
