10 Tonne General Purpose Fixed Jibs – Long

10 Tonne General Purpose Fixed Jibs - Long

Code: 3001151

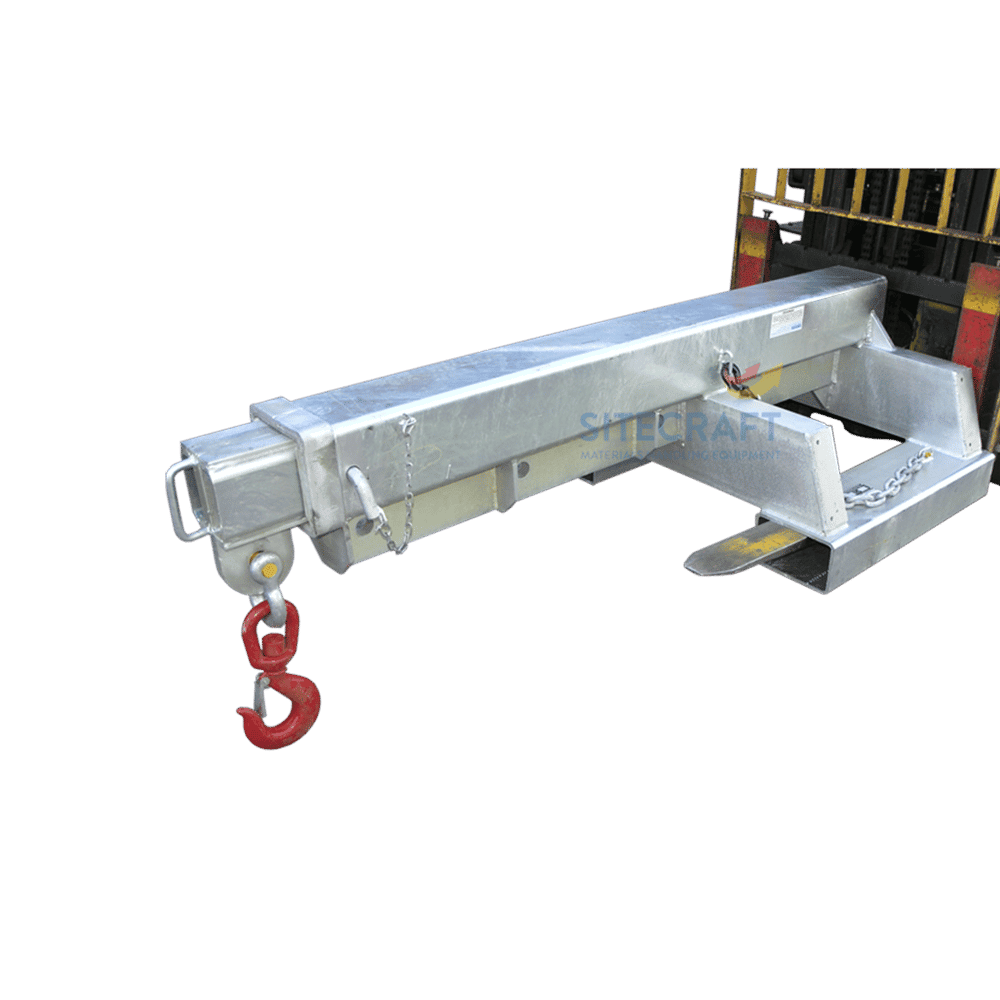

The 10 Tonne General Purpose Fixed Jib (Long) is designed as an affordable general purpose Jib with a 3.56 metre reach when fully extended. This Jib has been designed with wide pockets suitable for Forklifts with special hydraulic Tine Positioners. This slip-on Forklift attachment is held to the Forklift by a safety chain. The Jibs overall length when closed is 2.19 metres.Supplied with safety swivel hook and shackle.
Note: The lift capacities stated are a structural rating for the jib only, and make no claim as to the suitability of the forklift. Actual forklift capacity may be less than the structural capacity of the jib. Check with the forklift supplier for actual working capacities.In accordance with AS2359.1, when lifting with a jib attachment, the nett lifting capacity should be 0.8 times the rating of the forklift, to allow for a swinging load.

Safe Working Load (SWL) 10,000kg Max.
Unit Weight 515kg
Load Centre 920mm
Pocket Size 230 x 110
Pocket Centres 875 mm
Horizontal Centre of Gravity 1200mm
Vertical Centre of Gravity 100mm
Zinc Finish

Specifications

Product Code 3001151
Product Name 10 Tonne General Purpose Fixed Jibs – Long
Safe Working Load (Kg) 10000

Specifications

Product Code 3001151
Product Name 10 Tonne General Purpose Fixed Jibs – Long
Safe Working Load (Kg) 10000
