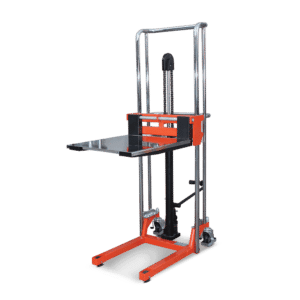

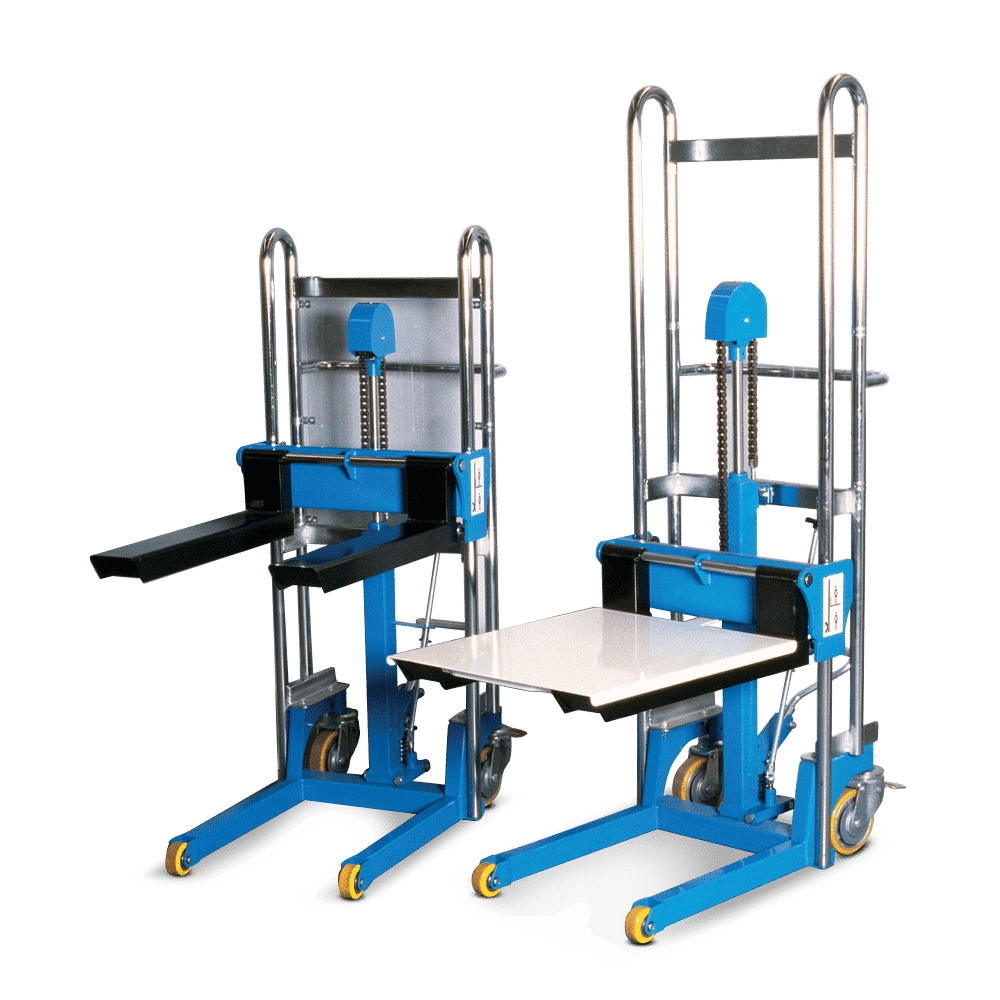

Heavy Duty Hydraulic Lift Tables

With a maximum lift capacity of 400 kg. Features adjustable forks with a removable load platform. Hydraulic foot pump allows easy incremental load raising and controlled lowering. Supplied with polyurethane castors ‰ÛÓ 75mmØ rigid castors at front, plus two 150mmØ locking swivel castors at the rear. Battery powered units are available for quick and effortless operation.

Heavy duty foot operated hydraulic pump or battery powered operation
3 lift heights available: 1200mm, 1500mm or 1700mm
Features adjustable forks with a removable table top
Durable powdercoat and chrome finish handles
All units supplied with perspex safety shield
Maximum capacity 400kg
Product Code Product Name Fork Length (mm)Fork Width (mm)Load Capacity (kg)Max Platform Height (mm)Min Platform Height (mm)Operation Price
6041084 Heavy Duty Hydraulic Lift Tables 645  110  400  1200  90  Manual Foot Pump
6041085 Heavy Duty Hydraulic Lift Tables 645  110  400  1200  90  Battery Hydraulic
6041086 Heavy Duty Hydraulic Lift Tables 645  110  400  1500  90  Manual Foot Pump
6041087 Heavy Duty Hydraulic Lift Tables 645  110  400  1500  90  Battery Hydraulic
6041088 Heavy Duty Hydraulic Lift Tables 645  110  400  1700  90  Manual Foot Pump
6041089 Heavy Duty Hydraulic Lift Tables 645  110  400  1700  90  Battery Hydraulic

Specifications

Product Code 6041084 6041085 6041086 6041087 6041088 6041089
Product Name Heavy Duty Hydraulic Lift Tables Heavy Duty Hydraulic Lift Tables Heavy Duty Hydraulic Lift Tables Heavy Duty Hydraulic Lift Tables Heavy Duty Hydraulic Lift Tables Heavy Duty Hydraulic Lift Tables
Fork Length (mm) 645 645 645 645 645 645
Fork Width (mm) 110 110 110 110 110 110
Load Capacity (kg) 400 400 400 400 400 400
Max Platform Height (mm) 1200 1200 1500 1500 1700 1700
Min Platform Height (mm) 90 90 90 90 90 90
Operation Manual Foot Pump Battery Hydraulic Manual Foot Pump Battery Hydraulic Manual Foot Pump Battery Hydraulic

Specifications

Product Code 6041084 6041085 6041086 6041087 6041088 6041089
Product Name Heavy Duty Hydraulic Lift Tables Heavy Duty Hydraulic Lift Tables Heavy Duty Hydraulic Lift Tables Heavy Duty Hydraulic Lift Tables Heavy Duty Hydraulic Lift Tables Heavy Duty Hydraulic Lift Tables
Fork Length (mm) 645 645 645 645 645 645
Fork Width (mm) 110 110 110 110 110 110
Load Capacity (kg) 400 400 400 400 400 400
Max Platform Height (mm) 1200 1200 1500 1500 1700 1700
Min Platform Height (mm) 90 90 90 90 90 90
Operation Manual Foot Pump Battery Hydraulic Manual Foot Pump Battery Hydraulic Manual Foot Pump Battery Hydraulic

Need Help With Selecting The Right Product ?
Contact a Sitecraft Product Specialist Call: 1300 363 152
