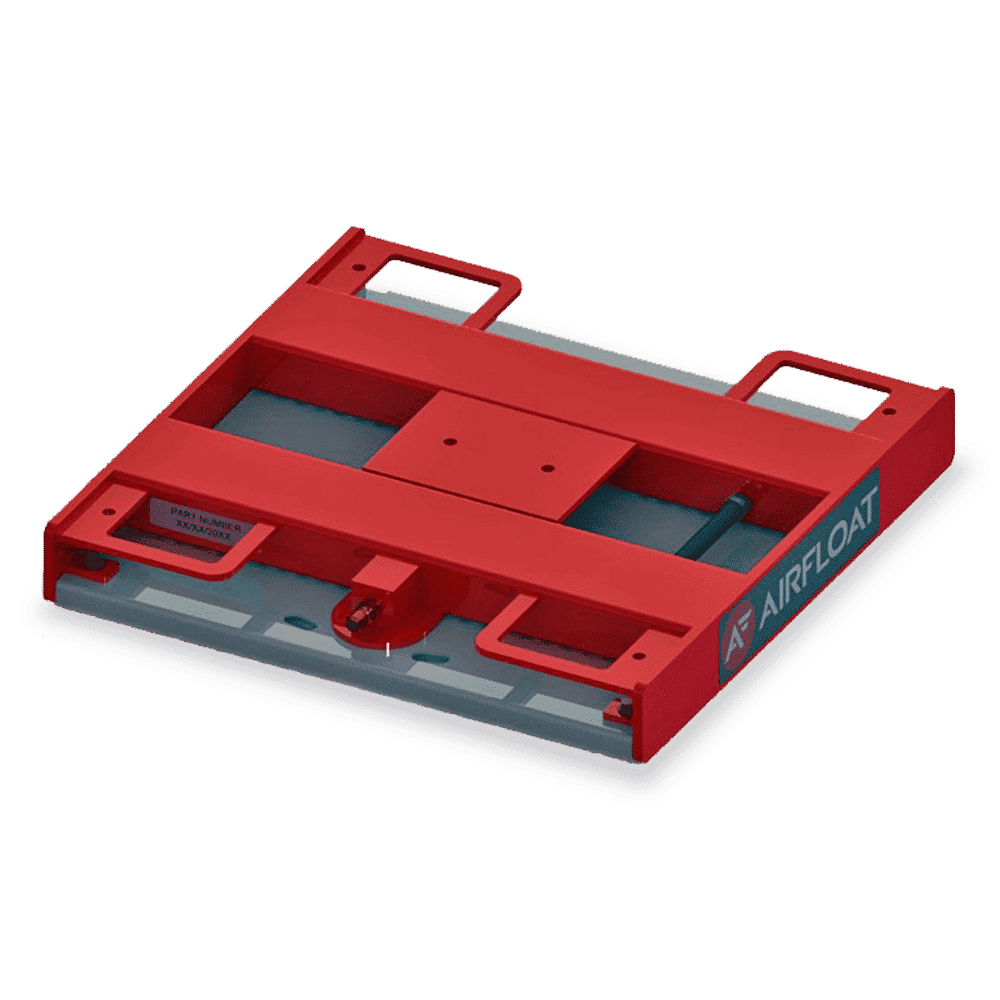

Air Skid 500mm

Airfloat Air Bearing Skids (orair castors) are a versatile pneumatic/air support device. These allow the safe, near frictionless movement of heavy loads and large equipment. Underneath the heavy duty, load support platform is a durable and flexible urethane diaphragm that is inflated using compressed air. This air inflates the diaphragm, passing through the many small holes in the diaphragm, which enables the load to float on a thin film of air.

The 500 mm single air skid has a load capacity of 3,750 kg. Sitecraft can supply these as a single unit or in a four piece kit. This will provide ca combined load capacity of 15,000 kg.

Flexible - designed to handle a wide range of weights and machinery/equipment
Simple - Low maintenance, easy to operate and very reliable
Omnidirectional - Move with ease in any direction and operates in normally confined spaces
Configurable - Can be placed in various configurations or fixed under existing equipment or products for safe and easy movement
Virtually friction free - move 450 kg with only 450 grams of force
Product Code Product Name Capacity (kg)Height (mm)Length (mm)Weight (kg)Width (mm) Price
49641008 Single Air Skid 500mm 3750  76  546  26  540
49641009 4 Piece Air Skid Kit 15000  76  546  105  540

Specifications

Product Code 49641008 49641009
Product Name Single Air Skid 500mm 4 Piece Air Skid Kit
Capacity (kg) 3750 15000
Height (mm) 76 76
Length (mm) 546 546
Weight (kg) 26 105
Width (mm) 540 540

Specifications

Product Code 49641008 49641009
Product Name Single Air Skid 500mm 4 Piece Air Skid Kit
Capacity (kg) 3750 15000
Height (mm) 76 76
Length (mm) 546 546
Weight (kg) 26 105
Width (mm) 540 540
