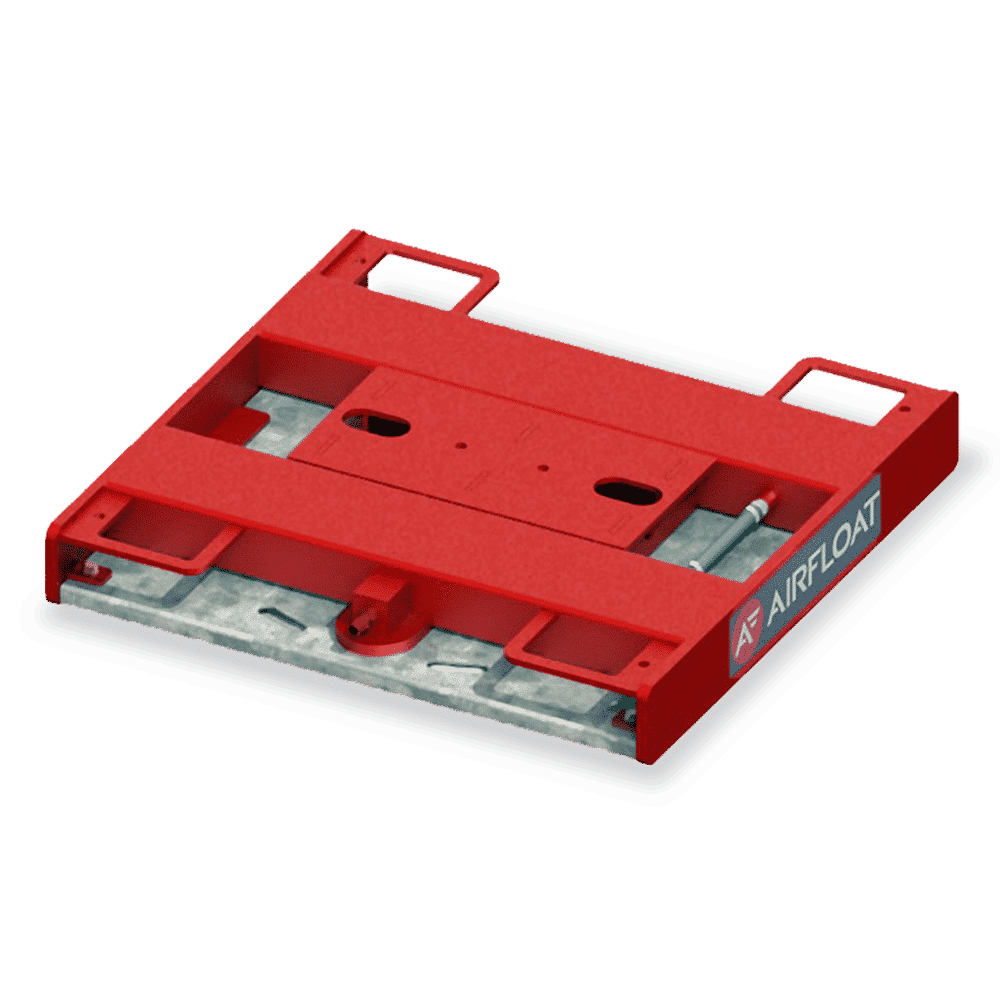

Air Skid 600mm

Airfloat Air Bearing Skids (or air castors) are a versatile pneumatic/air support device. The air skids allow the safe, almost frictionless movement of heavy loads and large equipment. Underneath the strong steel load support platform is a durable and flexible urethane diaphragm that is inflated using compressed air. This air inflates the diaphragm, passing through the many small holes, which enables the load to float on a thin film of air.

The 600 mm single air skid can support loads of up to 5,680 kg. Often these are supplied in a four piece kit, to be located under the corners of the load platform. This will provide a maximum capacity of 22,720 kg.

Flexible - designed to handle a wide range of weights and machinery/equipment
Simple - Low maintenance, easy to operate and very reliable
Omnidirectional - Move with ease in any direction and operates in normally confined spaces
Configurable - Can be placed in various configurations or fixed under existing equipment or products for safe and easy movement
Virtually friction free - move 450 kg with only 450 grams of force
Product Code Product Name Capacity (kg)Height (mm)Length (mm)Weight (kg)Width (mm) Price
49641010 Single Air Skid 600mm 5682  89  654  45  641
49641011 4 Piece Air Skid Kit 22727  89  654  178  641

Specifications

Product Code 49641010 49641011
Product Name Single Air Skid 600mm 4 Piece Air Skid Kit
Capacity (kg) 5682 22727
Height (mm) 89 89
Length (mm) 654 654
Weight (kg) 45 178
Width (mm) 641 641

Specifications

Product Code 49641010 49641011
Product Name Single Air Skid 600mm 4 Piece Air Skid Kit
Capacity (kg) 5682 22727
Height (mm) 89 89
Length (mm) 654 654
Weight (kg) 45 178
Width (mm) 641 641
