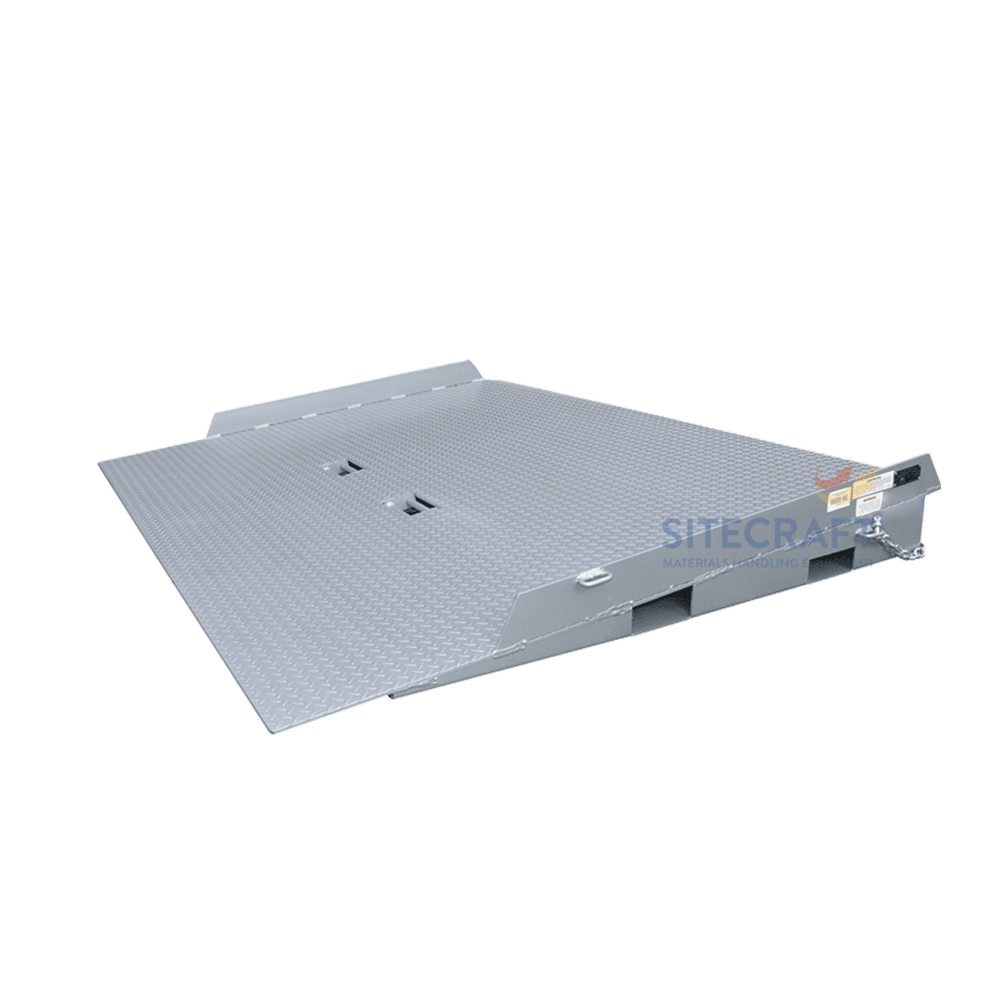

Heavy Duty Container Ramp

Code: 3001025

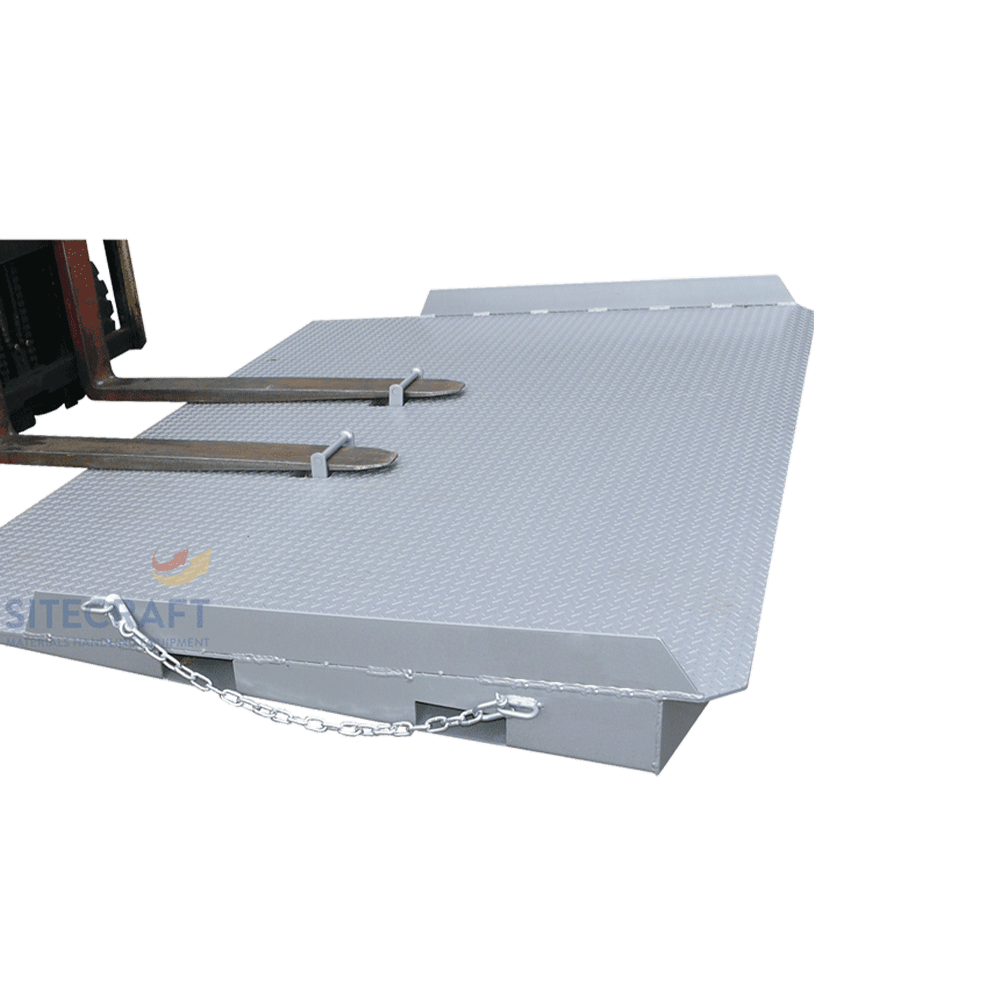

Fast positioning and removal with the heavy duty ramp. Fitted with fork pockets either side, along with front flip-ups allows placement in confined areas. Securing safety chains both sides for connection of the ramp to the container. Raised side plates prevent the forklift from driving off the side. Full gusseting underneath eliminates fatigue of the tread plate decking.

Size: 1800mm (l) x 2320mm (w) x 155mm (h), ground to ramp deck
Structural capacity: 8000kg SWL
Unit weight: 410kg
Enamel paint finish

Specifications

Product Code 3001025
Product Name CRS-8 Container Ramp
Load Capacity (kg) 8000
Net Weight (kg) 410
Width (mm) 2320

Specifications

Product Code 3001025
Product Name CRS-8 Container Ramp
Load Capacity (kg) 8000
Net Weight (kg) 410
Width (mm) 2320
