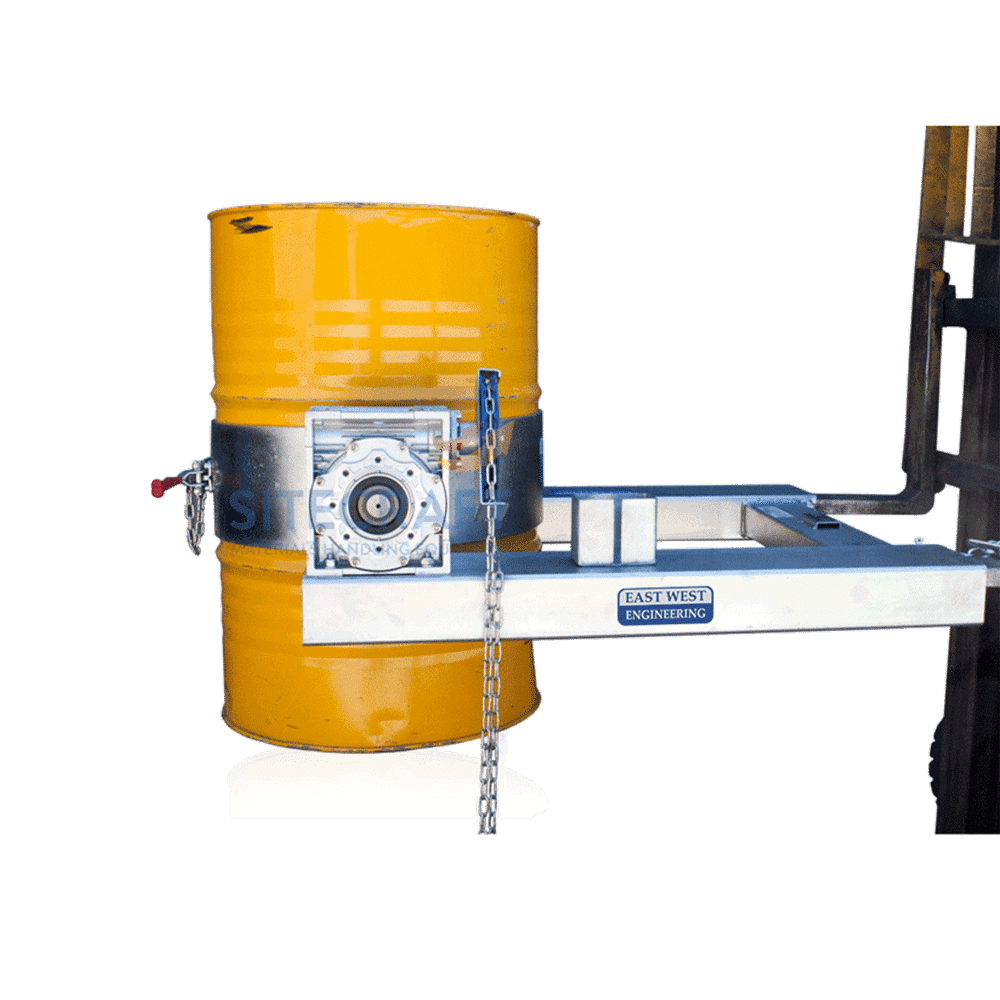

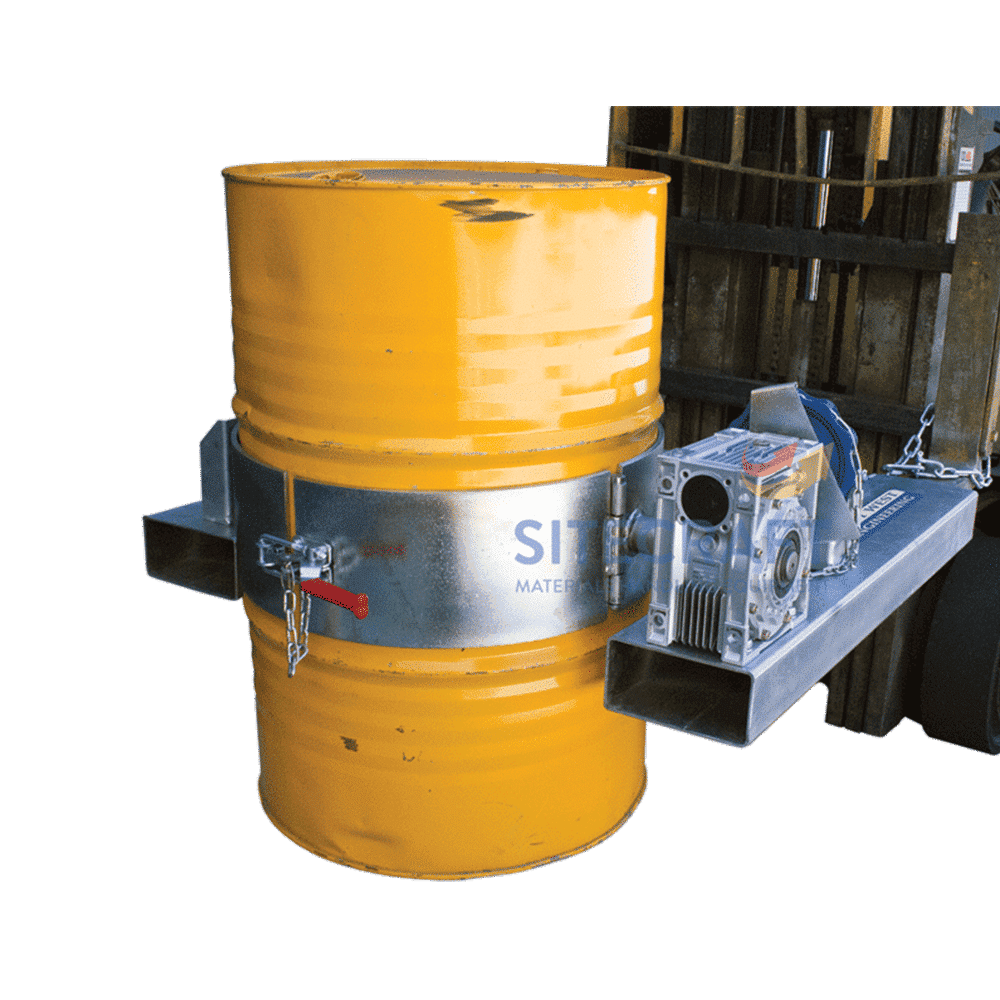

Forklift Drum Rotator – Manual Chain Operation

Code: 3001037

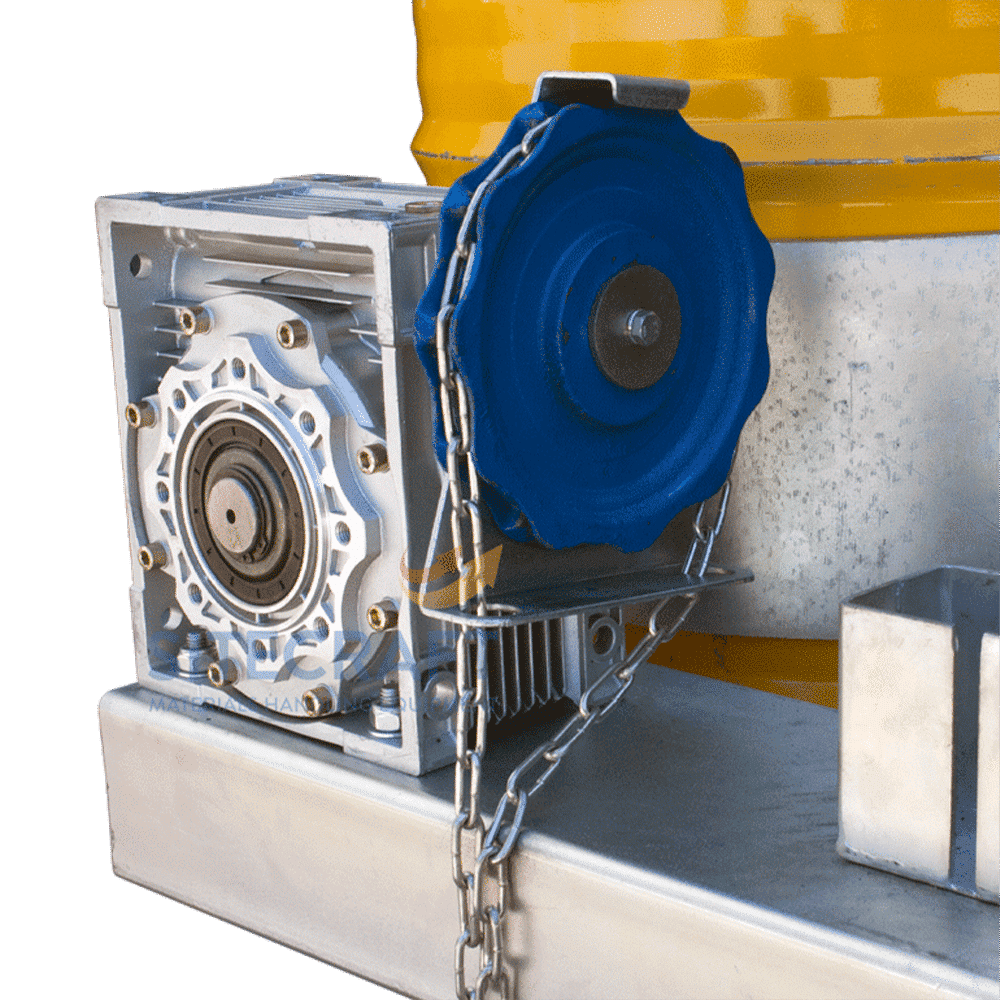

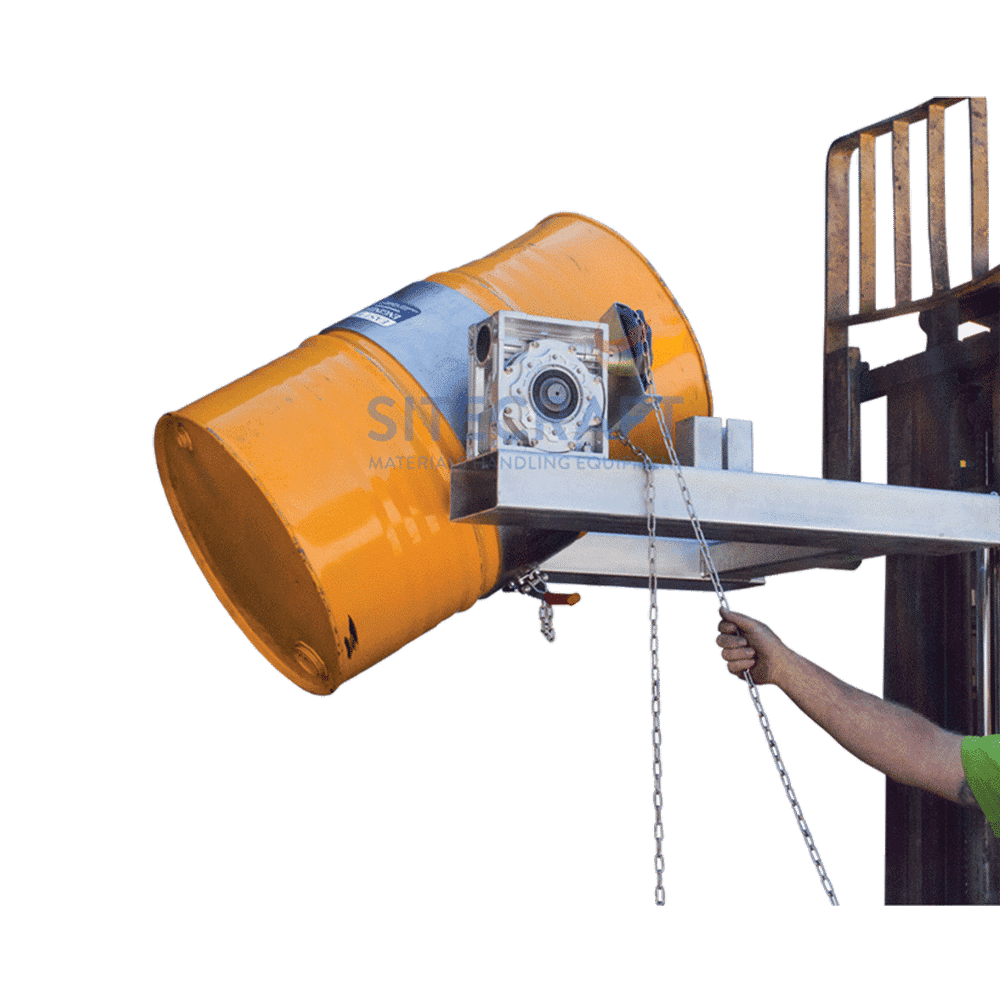

The Forklift Chain Operated Drum Rotatoris designed as a fast and economical solution to lift and rotate a 205 litre drum 360 degrees. Rotation of the drum is fully controlled via a large worm-drive gear box which locks the drum in position when operator stops pulling the hand chain, preventing dangerous and uncontrolled movements. Allows the emptying of standard 205 Litre drums with minimal effort up to 3m above the ground.

400Kg safe working load
360 degree rotation
Unit weight 100Kg
Load centre 940mm
Pocket size 185 x 60mm
Pocket centres 840mm

Specifications

Product Code 3001037
Product Name Type DR-NC

Specifications

Product Code 3001037
Product Name Type DR-NC
