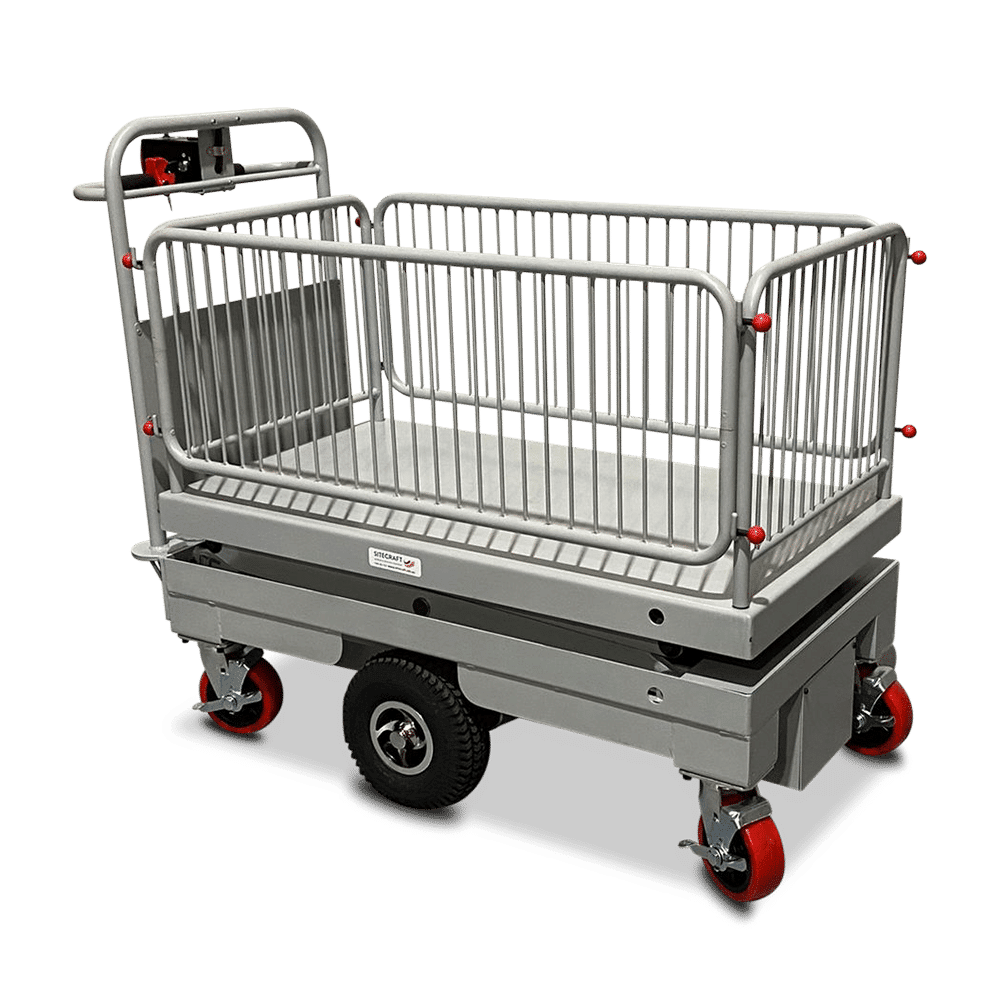

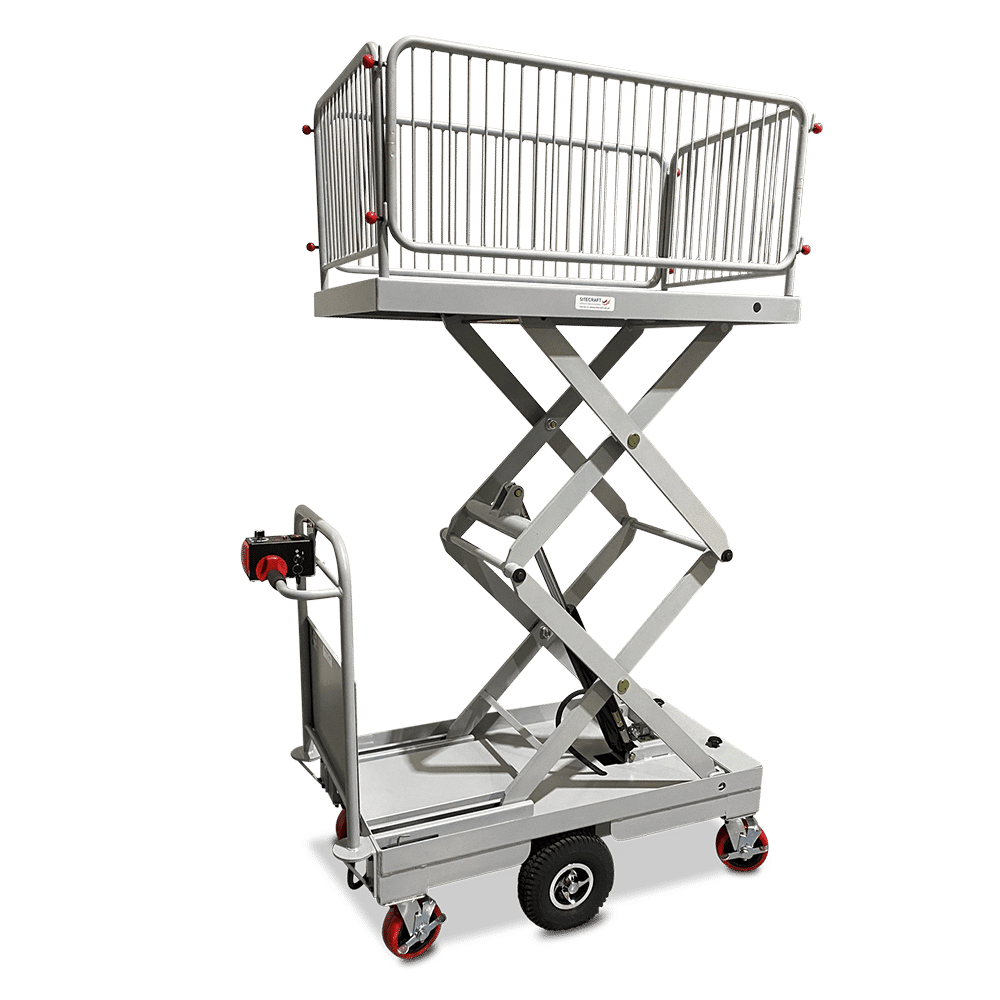

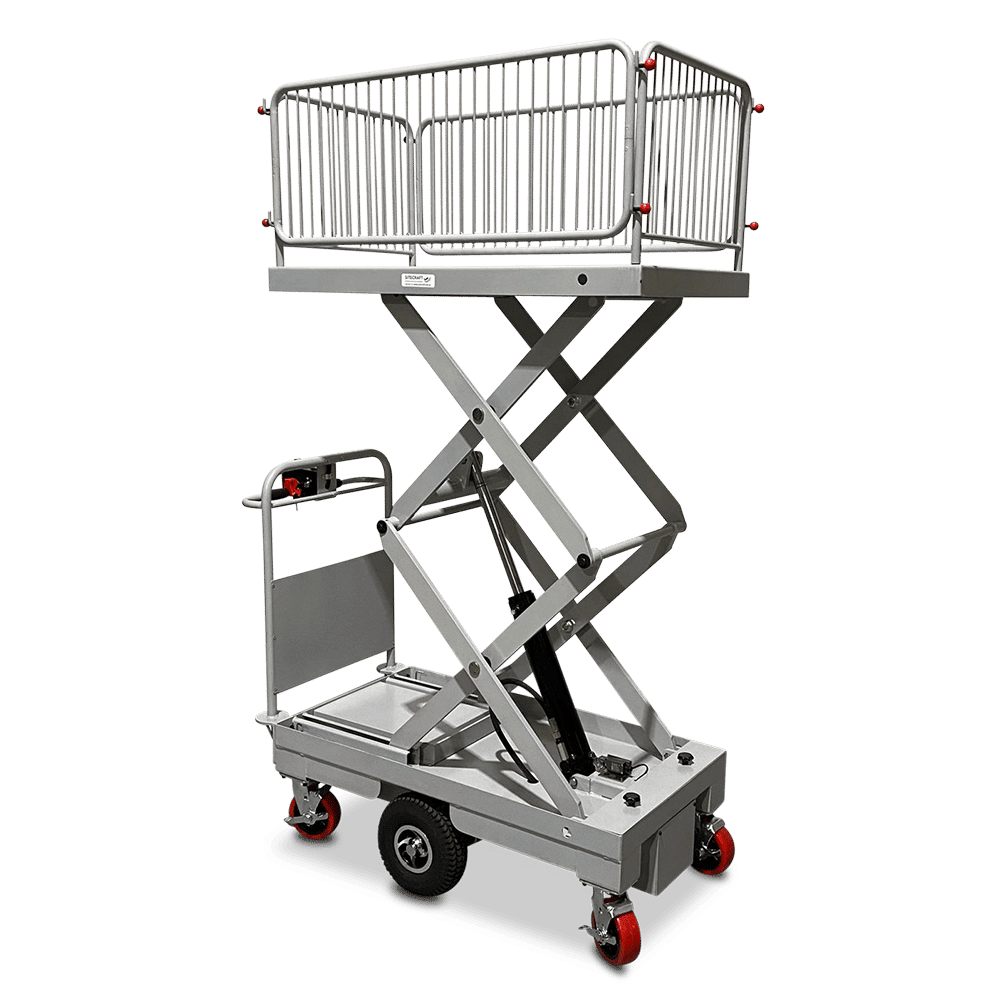

E-Move Scissor Trolley – Cage on Platform

E-Move Scissor Trolley - Cage on Platform

Code: 4781085

The battery electric E-Move Scissor Trolley - Cage on Platform provides effortless movement and lifting of loads. The drive wheels are positioned in the centre of the trolley making it easy to steer. This also means the load is centred around the drive wheels which is critical when taking loads across sloping ground. Forward and reverse drive speed is variable via ergonomically placed thumb controls. Top speed can be overridden by a separate knob. Other features include emergency stop, reversing beeper, key lockable on/off, battery use indicator and a motor engage/disengage lever.

Inside Cage Dimensions: 570(w) x 600(d) x 960(l)
Charger: 24V, UL or CE Certificate
Max climbing capability: 12o
Charge time: 8-10hours
Continuous working time: 6hours

Specifications

Dimensions (mm) 1340 x 600 x 1100
Load Capacity (kg) 400
Max Platform Height (mm) 1600
Min Platform Height (mm) 460
Platform Size (mm) 1000 x 600
Power Source Battery: 12V 33AH x 2
Speed (kph) 3-6

Specifications

Dimensions (mm) 1340 x 600 x 1100
Load Capacity (kg) 400
Max Platform Height (mm) 1600
Min Platform Height (mm) 460
Platform Size (mm) 1000 x 600
Power Source Battery: 12V 33AH x 2
Speed (kph) 3-6
