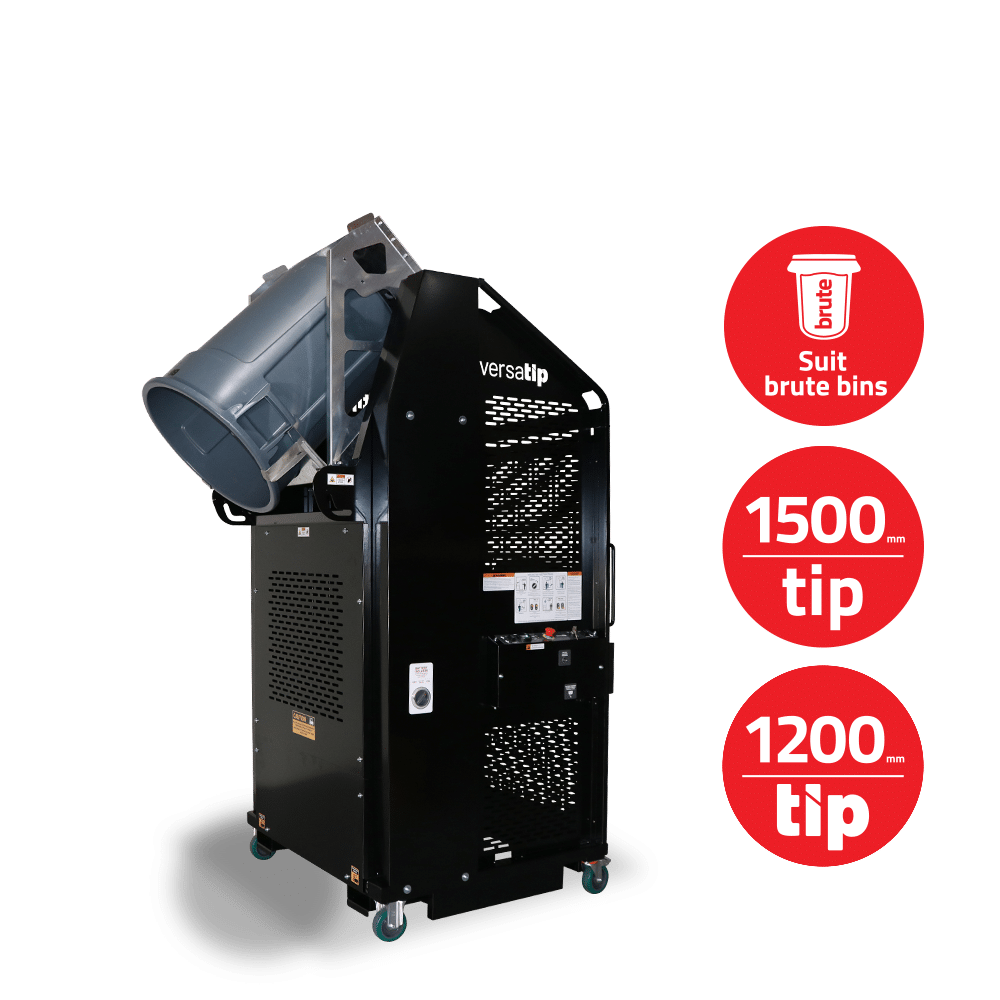

Versatip Bin Tipper – Suit Brute Bins

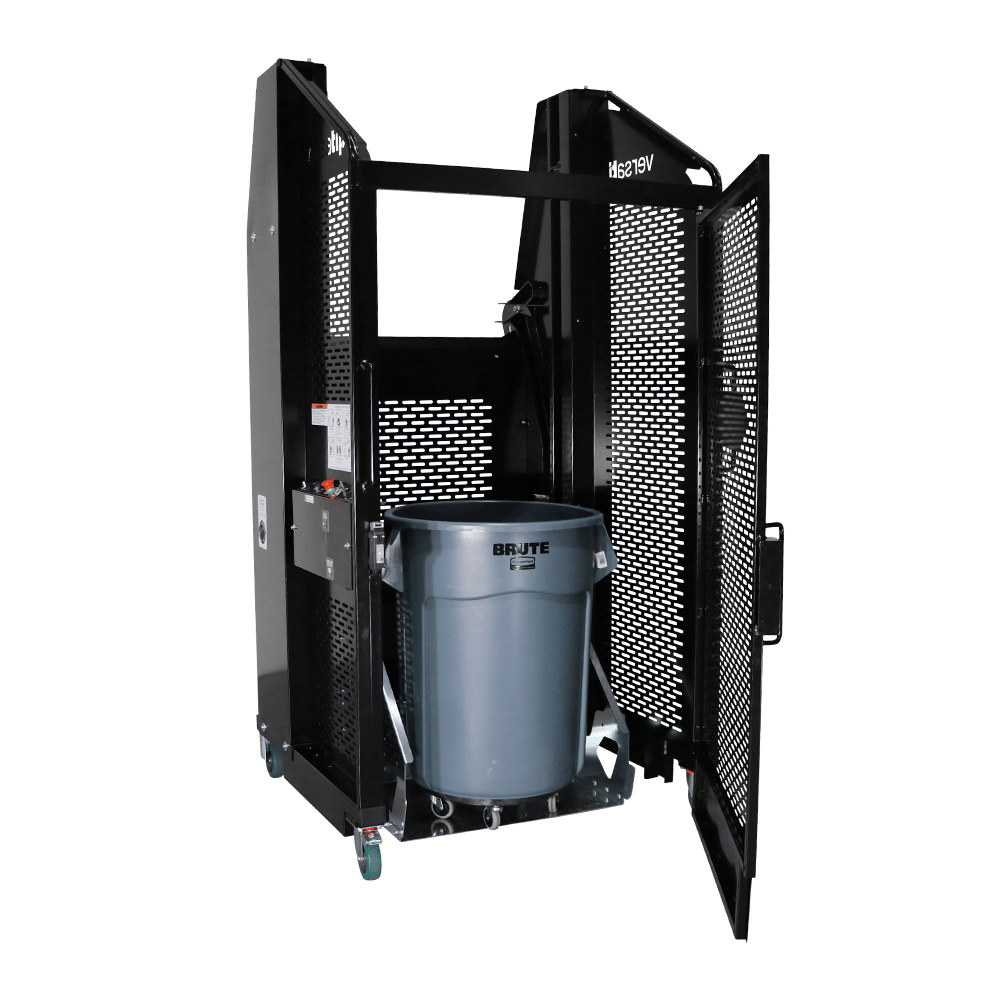

These tippers empty bins from floor level effortlessly with the simple push of a button. They are the safe alternative with no bending or lifting required by the operator. Bins are raised vertically, then gently rolled forward when they are at the right height. This design uses a minimum of space, and is much safer than tippers that rotate the bin around a fixed pivot point. The bin and cradle come down by gravity alone, which increases the safety. Simply wheel the bin onto the cradle, close the safety gate and press the up button. When the bin has emptied, press the down button. There's no need to strap or clamp the bin. Stop the machine at any time by taking your finger off the button. Featuring four castors for total manoeuvrability. Standard wheels are rubber-tyred, 100mm diameter, with ball bearings for ease of moving. The front two castors have brakes that lock both the wheel and swivel mechanism.

Product Code Product Name Height (mm)Length (mm)Tipping Height (mm)Width (mm) Price
69121009.6.SB Suit Brute Bin - Satin Black Powder Coat 2400  1330  1500  1060
69121009.6 Suit Brute Bin - Red Powder Coat 2400  1330  1500  1060
69121008.5 Suit Brute Bin - Red Powder Coat 2400  1330  1200  1060
69121008.6 Suit Brute Bin - Stainless Steel 2400  1330  1200  1060

Product Features

Tipping Height: 1500mm
Overall Width: 1060mm
Length: 1330mm
Height: 2400mm
Maximum height required when in operation: 2585mm
Capacity: 250kg
125mm Castors - 2 x Fixed - 2 x Swivel Braked
Fork Pockets
Dual Handed operation

Cradle designed to handle Brute bins instead of 2 wheel bins. Brute Bins will be retained but their handles or via a bar across the top of the bin to enable them to be tipped when they are attached to the dolly. Designed to suit 208L Brute Bins on their dolly.

Australian Made Product

Specifications

Product Code 69121009.6.SB 69121009.6 69121008.5 69121008.6
Product Name Suit Brute Bin – Satin Black Powder Coat Suit Brute Bin – Red Powder Coat Suit Brute Bin – Red Powder Coat Suit Brute Bin – Stainless Steel
Height (mm) 2400 2400 2400 2400
Length (mm) 1330 1330 1330 1330
Tipping Height (mm) 1500 1500 1200 1200
Width (mm) 1060 1060 1060 1060

Specifications

Product Code 69121009.6.SB 69121009.6 69121008.5 69121008.6
Product Name Suit Brute Bin – Satin Black Powder Coat Suit Brute Bin – Red Powder Coat Suit Brute Bin – Red Powder Coat Suit Brute Bin – Stainless Steel
Height (mm) 2400 2400 2400 2400
Length (mm) 1330 1330 1330 1330
Tipping Height (mm) 1500 1500 1200 1200
Width (mm) 1060 1060 1060 1060
