Bailey Deluxe Access Platform

Bailey Deluxe Access Platform

The Access Platform is designed for tasks such as stock picking, mezzanine or truck access, and vehicle or plant maintenance.  It can be used as a step-through ladder if required, by removal of the rear toe board and mid rail.  The front and rear top rails lift up to give access.  A shelf is included as standard, providing an idea place to place products, components or tools.  For mobility, four swivel wheels can be deployed by pulling and latching a yellow handle over the third step. This also acts as a deterrent  to anyone attempting to climb the ladder when the wheels are deployed.  These ladders are made to Australian standard AS/NZA 1892.1
Capacity(kg): 170
Platform Dimensions(mm): 800L x 590W
Assembly: Available as an extra cost option
Product Code Product Name Base Dimensions (mm)Platform Height (mm)Weight (kg) Price
10061043 3 Step Model 1168L x 724W  828

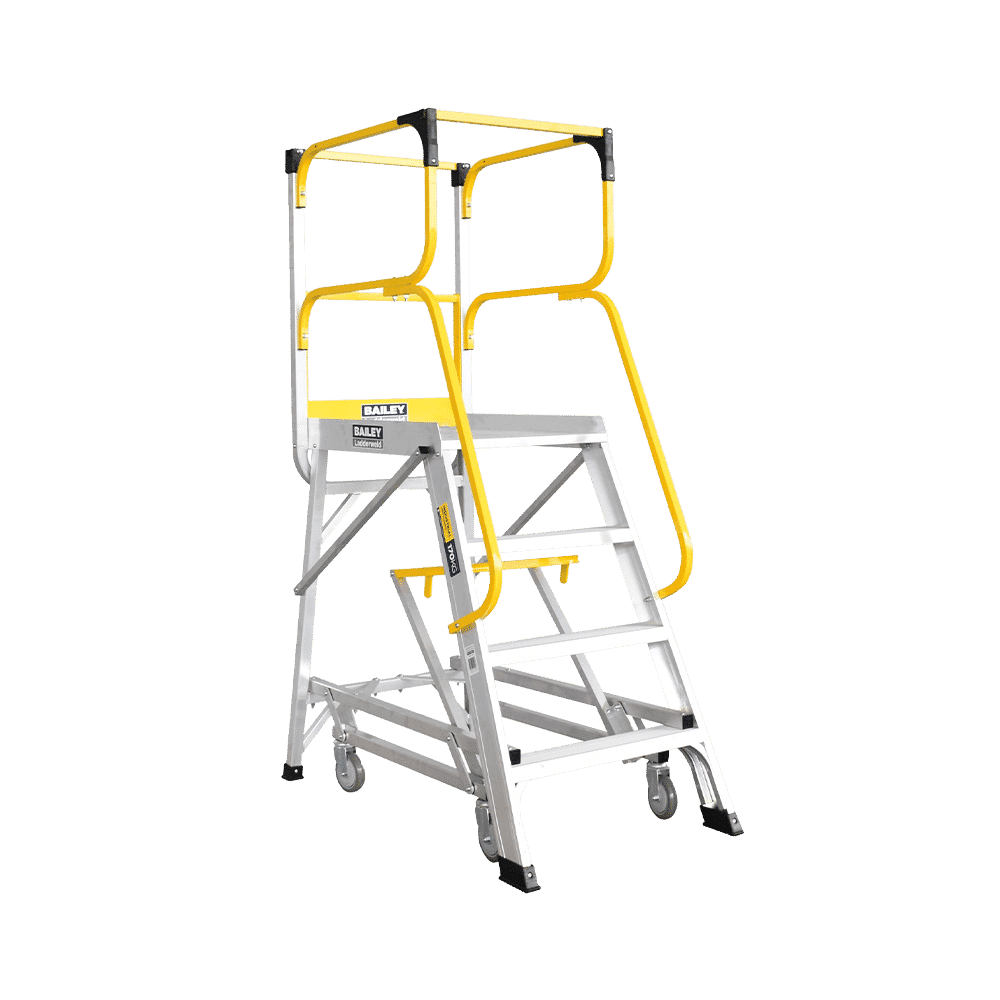

10061044 4 Step Model 1309L x 764W  1104  40.6

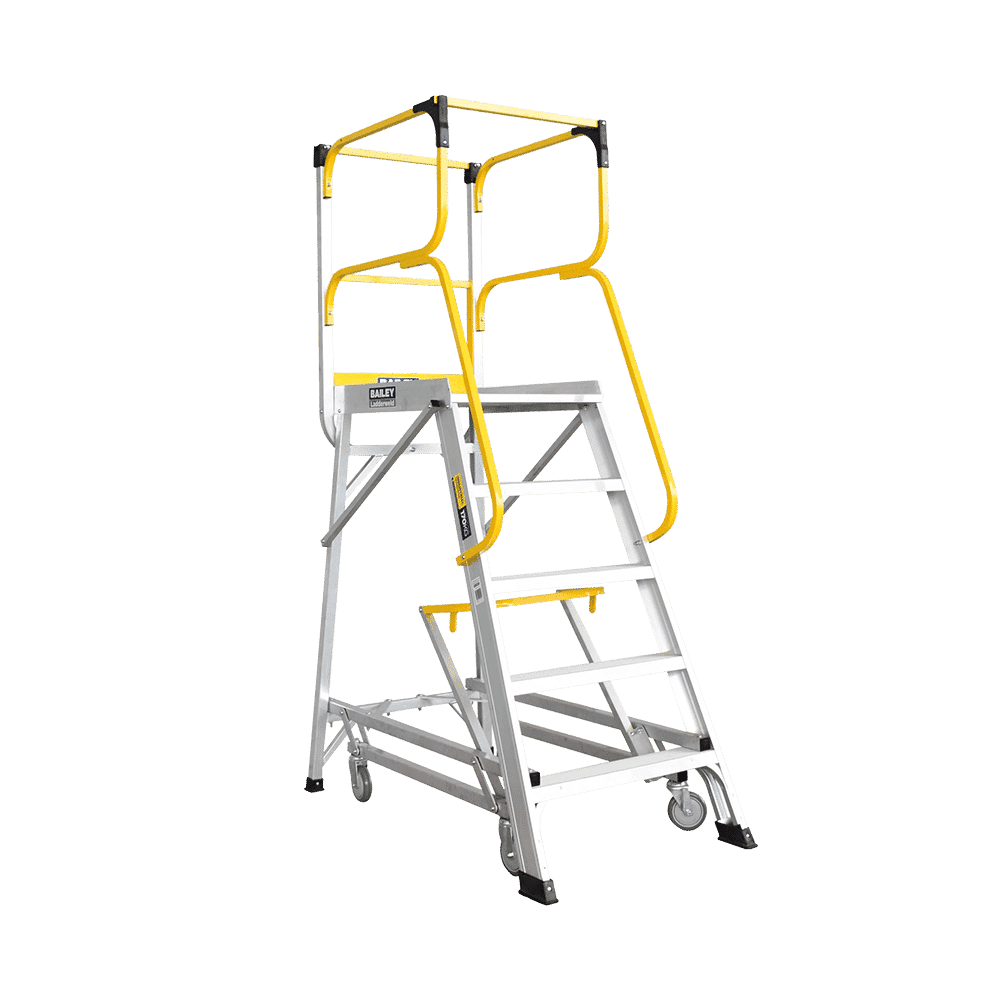

10061045 5 Step Model 1451L x 804W  1381

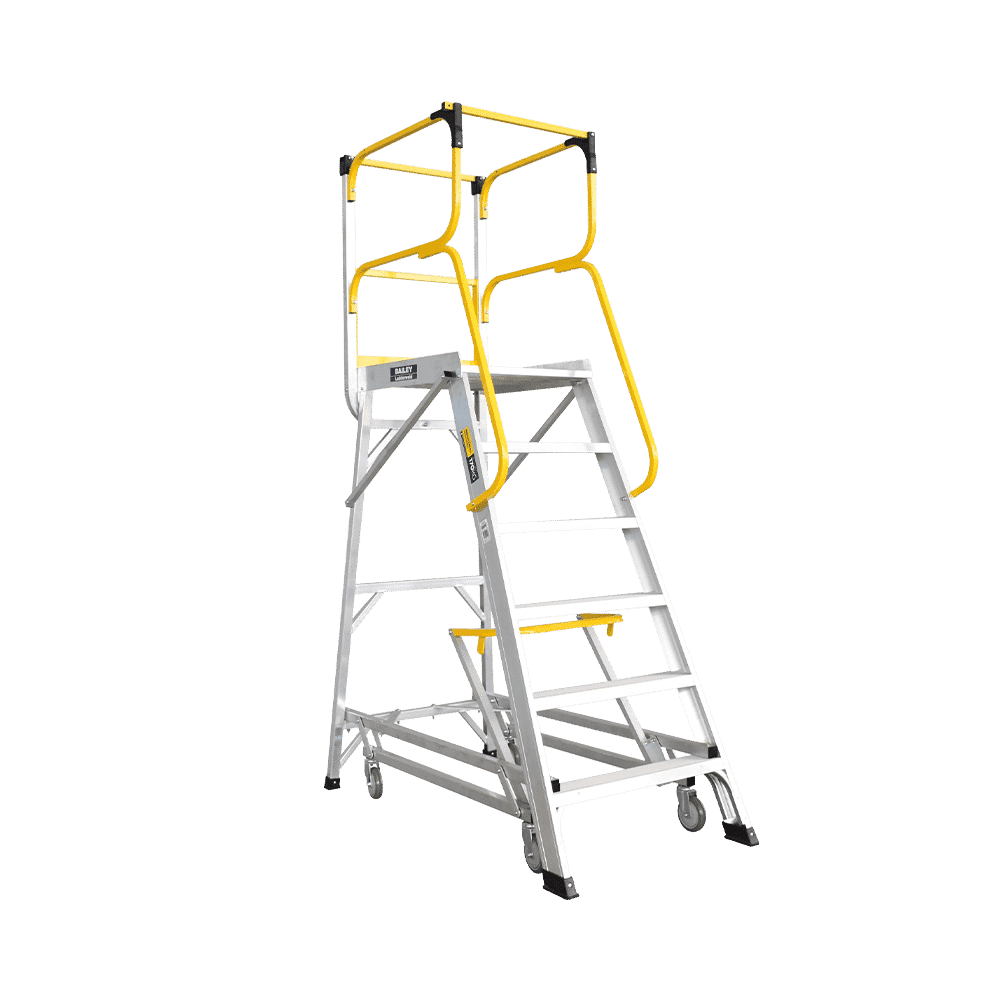

10061046 6 Step Model 1592L x 844W  1656

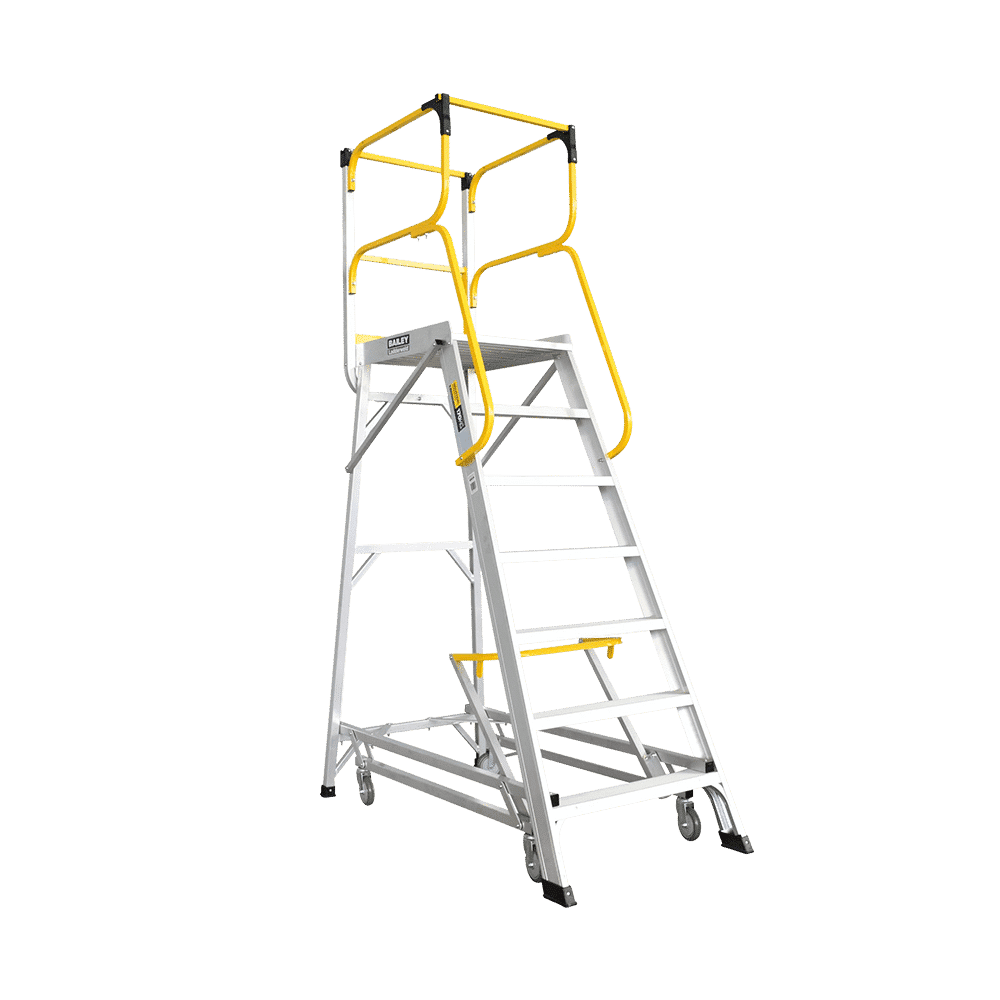

10061047 7 Step Model 1733L x 884W  1933
10061048 8 Step Model 1875L x 924W  2209
10061049 10 Step Model 2157L x 1003W  2761
10061050 12 Step Model 2440L x 1083W  3313
10061051 14 Step Model 2723L x 1164W  3866

Specifications

Product Code 10061043 10061044 10061045 10061046 10061047 10061048 10061049 10061050 10061051
Product Name 3 Step Model 4 Step Model 5 Step Model 6 Step Model 7 Step Model 8 Step Model 10 Step Model 12 Step Model 14 Step Model
Base Dimensions (mm) 1168L x 724W 1309L x 764W 1451L x 804W 1592L x 844W 1733L x 884W 1875L x 924W 2157L x 1003W 2440L x 1083W 2723L x 1164W
Platform Height (mm) 828 1104 1381 1656 1933 2209 2761 3313 3866
Weight (kg) 40.6
