Tracker Step-Thru Ladders

Tracker Step-Thru Ladders

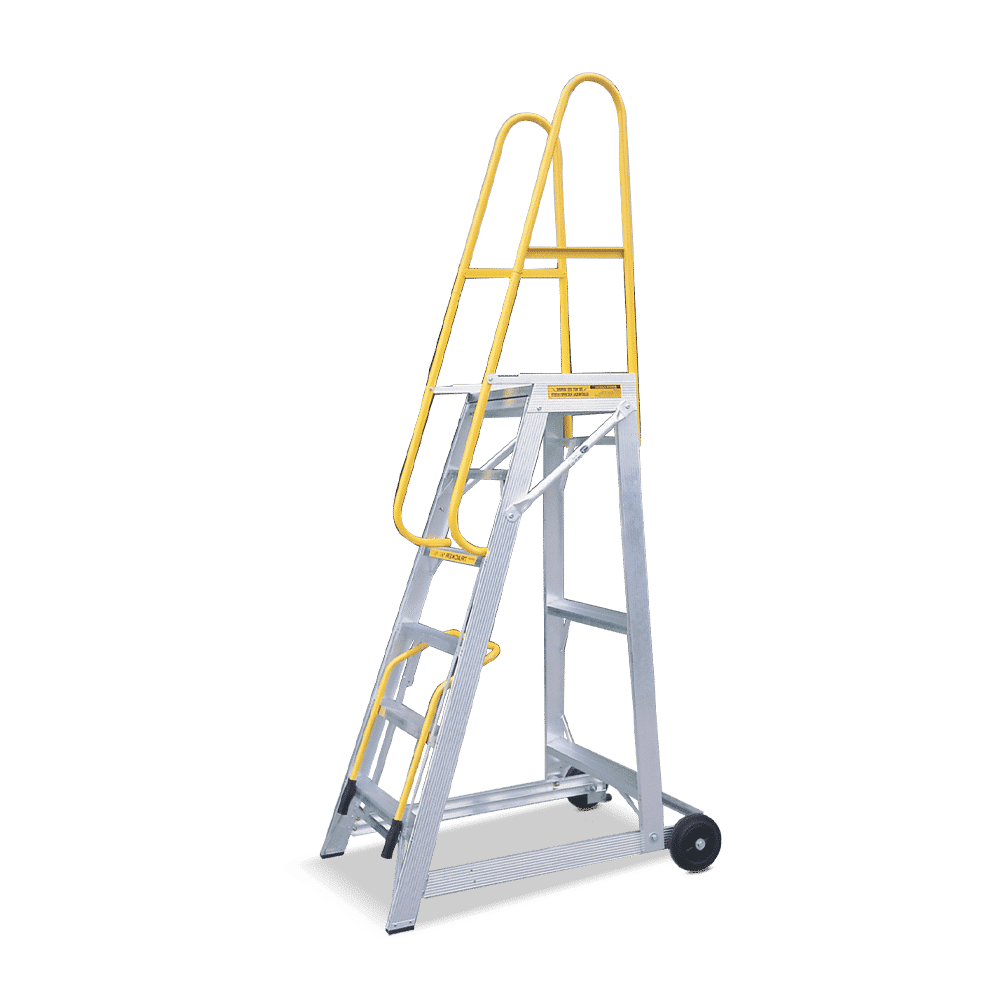

Tracker Step-Thru is a safe, relocatable passageway to elevated work areas.  The design utilises a ladder with a small top platform that can be a positioned directly against an elevated work area.  There is no railing at the rear of the platform, so the user can step thru and off the platform, on to the landing of the elevated area.   When considering use of the Tracker Step-Thru, it is necessary to consider its 250mm protruding wheel sections which must be able to pass under the landing of the elevated work area.  If this is an issue, our Access Platform product does not require this.  The Tracker Step-Thru can be moved over a wide range of ground surfaces, including surfaces that are less than perfect.  Its two large diameter wheels are positioned at the rear end of the ladder and at the other end are two rubber footed legs.  To move the ladder, an operator simply lifts the rubber footed end with the hand levers provided, and then propels the ladder along.

Capacity(kg): 150
Platform Dimensions(mm): 375L x 530W
Assembly: Available as an extra charge option
Product Code Product Name Base Dimensions (mm)Platform Height (mm) Price
2681056 3-Step Tracker Step-Thru Ladder 900L x 780W  860
2681057 4-Step Tracker Step-Thru Ladder 1005L x 820W  1145
2681058 5-Step Tracker Step-Thru Ladder 1110L x 860W  1435
2681059 6-Step Tracker Step-Thru Ladder 1215L x 900W  1720
2681060 7-Step Tracker Step-Thru Ladder 1330L x 940W  2005
2681061 8-Step Tracker Step-Thru Ladder 1460L x 980W  2295
2681062 9-Step Tracker Step-Thru Ladder 1590L x 1020W  2580
2681051 10-Step Tracker Step-Thru Ladder 1720L x 1060W  2865

Specifications

Product Code 2681056 2681057 2681058 2681059 2681060 2681061 2681062 2681051
Product Name 3-Step Tracker Step-Thru Ladder 4-Step Tracker Step-Thru Ladder 5-Step Tracker Step-Thru Ladder 6-Step Tracker Step-Thru Ladder 7-Step Tracker Step-Thru Ladder 8-Step Tracker Step-Thru Ladder 9-Step Tracker Step-Thru Ladder 10-Step Tracker Step-Thru Ladder
Base Dimensions (mm) 900L x 780W 1005L x 820W 1110L x 860W 1215L x 900W 1330L x 940W 1460L x 980W 1590L x 1020W 1720L x 1060W
Platform Height (mm) 860 1145 1435 1720 2005 2295 2580 2865
