Navigator Platform Ladders

Navigator Platform Ladders

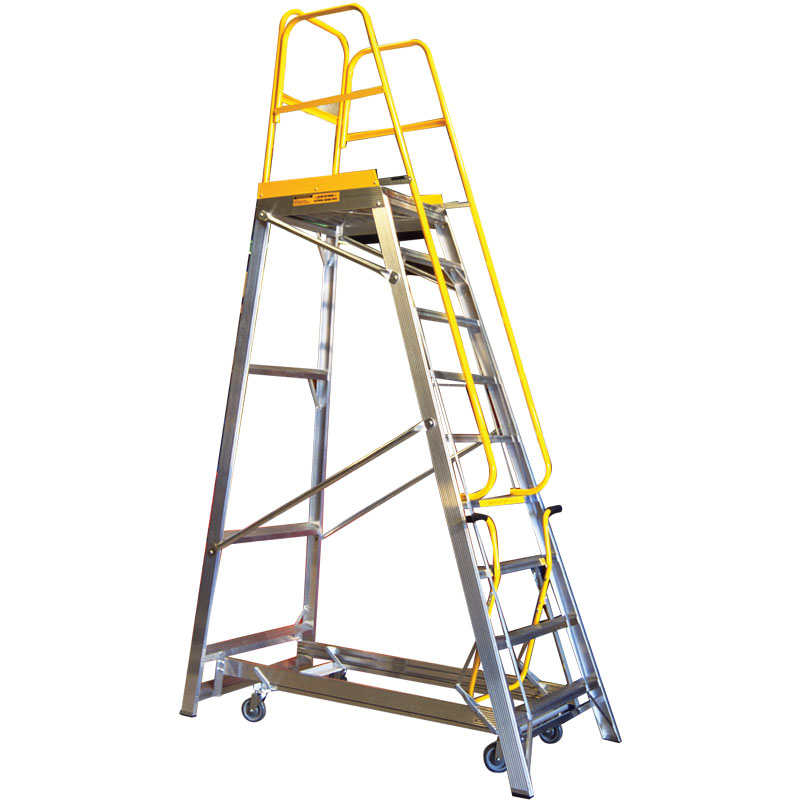

The Navigator features an innovative mobility control system where the operator effortlessly engages a two handed lever that both deploys the caster wheels and provides steering control.  Release of the lever automatically retracts the wheels, returning Navigator to the stationary mode where it is very stable with all four feet maintaining floor contact.  Up on the platform, the top half of the side railings can be removed giving greater access to the shelving or object being accessed.  Navigator is made in Australia to the requirements of AS/NZS 1892.1:1996.
Capacity(kg): 150
Platform Dimensions(mm): 720L x 580W
Assembly: Available as an extra cost option
Product Code Product Name Base Dimensions (mm)Platform Height (mm) Price

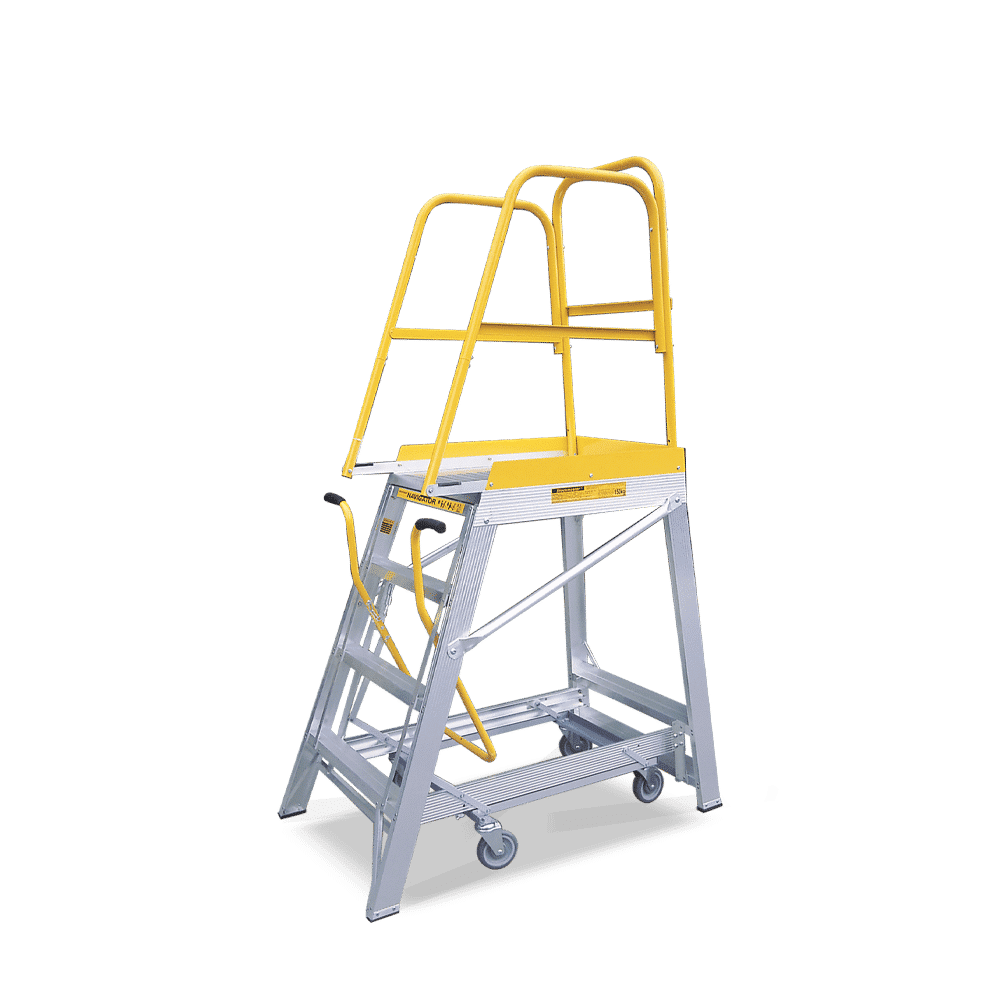

2681033 4-Step Navigator Platform Ladder 1290L x 755W  1145
2681036 5-Step Navigator Platform Ladder 1420L x 795W  1435
2681039 6-Step Navigator Platform Ladder 1550L x 835W  1720
2681042 7-Step Navigator Platform Ladder 1680L x 875W  2005
2681045 8-Step Navigator Platform Ladder 1810L x 915W  2295
2681048 9-Step Navigator Platform Ladder 1935L x 955W  2580
2681018 10-Step Navigator Platform Ladder 2065L x 995W  2865
2681021 11-Step Navigator Platform Ladder 2195L x 1035W  3155
2681024 12-Step Navigator Platform Ladder 2325L x 1075W  3440
2681027 13-Step Navigator Platform Ladder 2455L x 1115W  3725
2681030 14-Step Navigator Platform Ladder 2585L x 1155W  4015
2681079 Optional Auto Gate

Specifications

Product Code 2681033 2681036 2681039 2681042 2681045 2681048 2681018 2681021 2681024 2681027 2681030 2681079
Product Name 4-Step Navigator Platform Ladder 5-Step Navigator Platform Ladder 6-Step Navigator Platform Ladder 7-Step Navigator Platform Ladder 8-Step Navigator Platform Ladder 9-Step Navigator Platform Ladder 10-Step Navigator Platform Ladder 11-Step Navigator Platform Ladder 12-Step Navigator Platform Ladder 13-Step Navigator Platform Ladder 14-Step Navigator Platform Ladder Optional Auto Gate
Base Dimensions (mm) 1290L x 755W 1420L x 795W 1550L x 835W 1680L x 875W 1810L x 915W 1935L x 955W 2065L x 995W 2195L x 1035W 2325L x 1075W 2455L x 1115W 2585L x 1155W
Platform Height (mm) 1145 1435 1720 2005 2295 2580 2865 3155 3440 3725 4015
