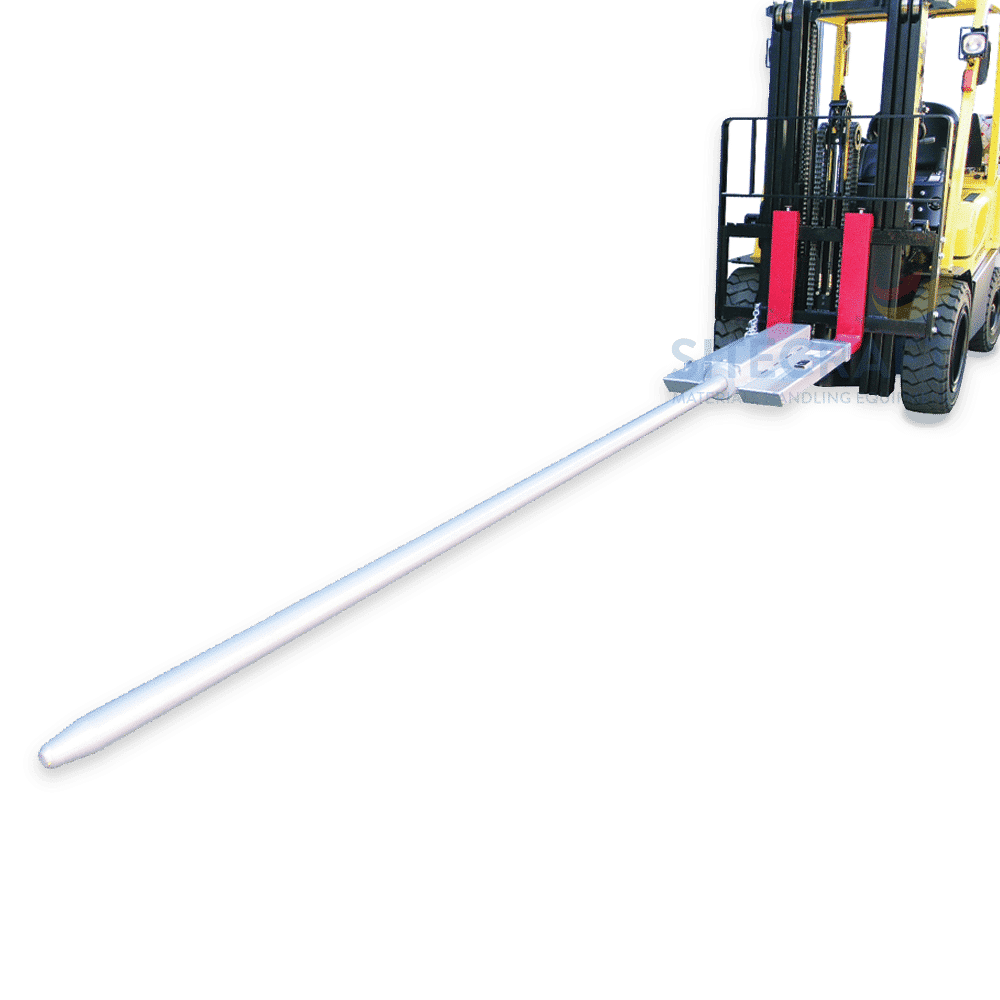

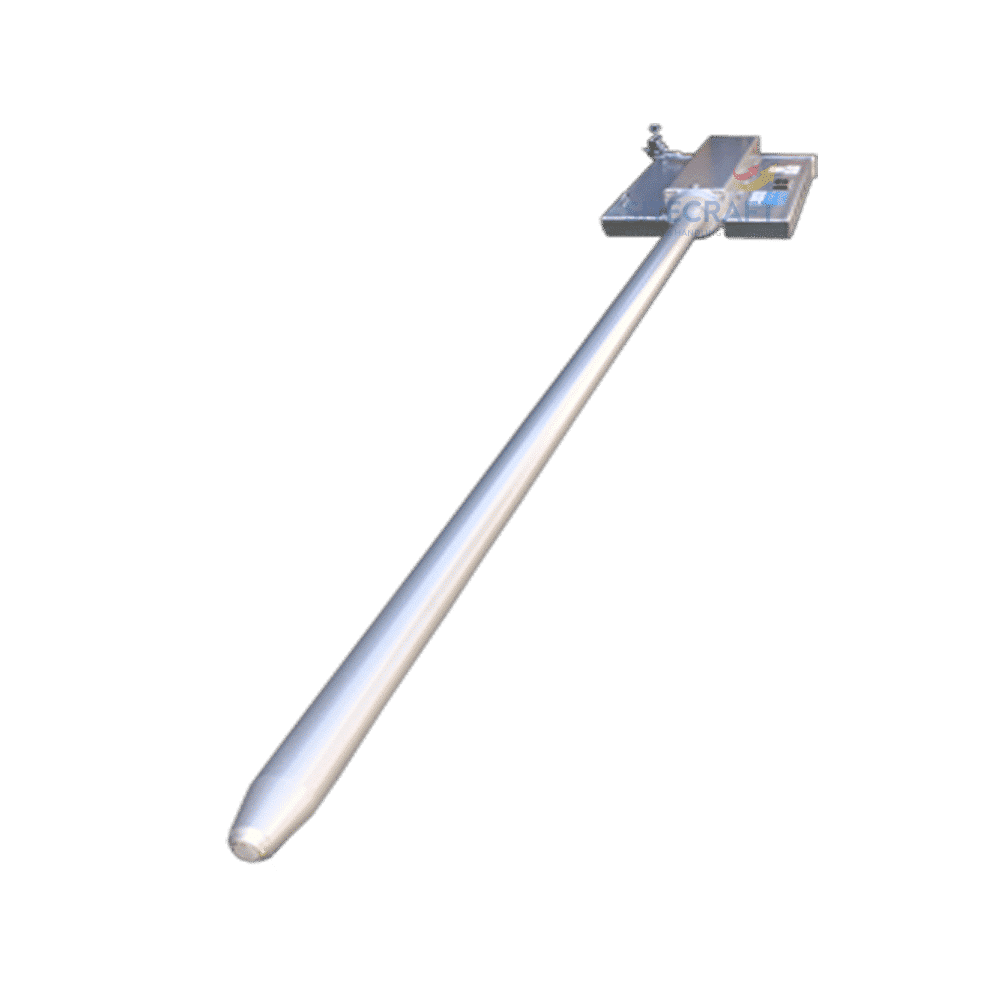

Slip-On Roll Prong

Slip on roll prongs are quick and easy to mount on any forklift although they are better suited to larger capacity forklifts due to the load centre created by the fork tines. Enamel paint finish. Note: The Safe Working Load of this unit varies depending on prong chosen.

Product Code Product Name Fork Length (mm)Fork Pocket Centre (mm)Fork Pocket Size (mm)Net Weight (kg)Safe Working Load (Kg) Price
3001124 Slip-On Roll Prong 1200  345  190 x 65  91  200
3001125 Slip-On Roll Prong 1800  345  190 x 65  106  250
3001126 Slip-On Roll Prong 2800  345  190 x 65  141  340
3001127 Slip-On Roll Prong 2800  345  190 x 65  163  510
3001128 Slip-On Roll Prong 2800  345  190 x 65  194  850
3001129 Slip-On Roll Prong 2800  360  180 x 80  328  1700
3001257 Slip-On Roll Prong 2800  360  180 x 80  293  1285

Specifications

Product Code 3001124 3001125 3001126 3001127 3001128 3001129 3001257
Product Name Slip-On Roll Prong Slip-On Roll Prong Slip-On Roll Prong Slip-On Roll Prong Slip-On Roll Prong Slip-On Roll Prong Slip-On Roll Prong
Fork Length (mm) 1200 1800 2800 2800 2800 2800 2800
Fork Pocket Centre (mm) 345 345 345 345 345 360 360
Fork Pocket Size (mm) 190 x 65 190 x 65 190 x 65 190 x 65 190 x 65 180 x 80 180 x 80
Net Weight (kg) 91 106 141 163 194 328 293
Safe Working Load (Kg) 200 250 340 510 850 1700 1285

Specifications

Product Code 3001124 3001125 3001126 3001127 3001128 3001129 3001257
Product Name Slip-On Roll Prong Slip-On Roll Prong Slip-On Roll Prong Slip-On Roll Prong Slip-On Roll Prong Slip-On Roll Prong Slip-On Roll Prong
Fork Length (mm) 1200 1800 2800 2800 2800 2800 2800
Fork Pocket Centre (mm) 345 345 345 345 345 360 360
Fork Pocket Size (mm) 190 x 65 190 x 65 190 x 65 190 x 65 190 x 65 180 x 80 180 x 80
Net Weight (kg) 91 106 141 163 194 328 293
Safe Working Load (Kg) 200 250 340 510 850 1700 1285
