Fork Spreader with Load Guard

Code: 3001488

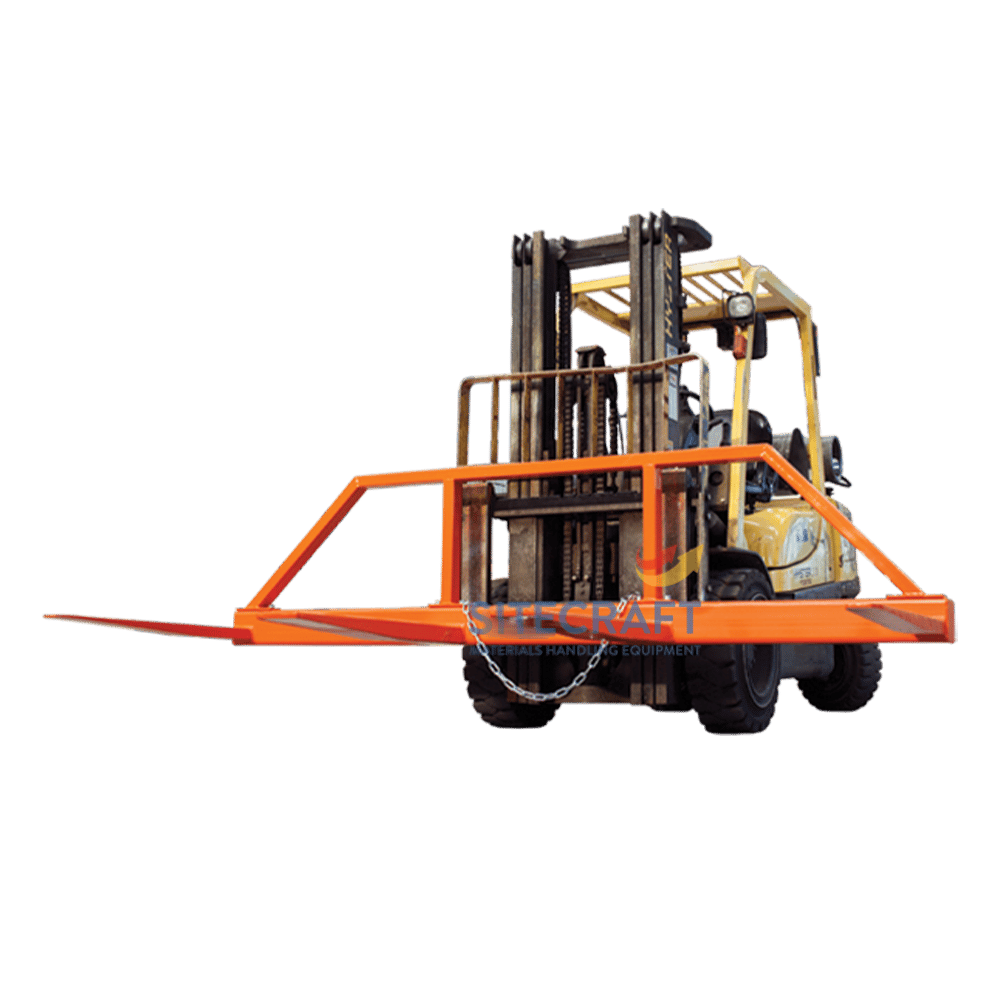

The Fork Spreader is a 3m wide spreader with a loadguard designed to safely lift extra wide or flexible loads without the risk of damage to products such as plasterboard, roof sheeting, timber, plastic tubing etc. The load is evenly distributed over its full length.The fork spreader is easily attached to the forklift by placing the fork tines into the fork pockets then securing with the safety chain.

Supplied with load guard disassembled for shipping. Quick and easy bolt-on assembly required.

Overall dimensions: 3000mm wide x 710mm high x 1210mm long
Working Load Limit (WLL) 3000kg
Fork Pocket Size: 160 x 60mm
Fork Pocket Centres: 872mm
Load Guard Height: 560mm
Load Centre: 600mm
Unit Weight: 255kg
Painted finish in safety orange

Specifications

Product Code 3001488
Product Name Fork Spreader with Load Guard
Fork Pocket Centre (mm) 872
Fork Pocket Size (mm) 160 x 60
Net Weight (kg) 260
Safe Working Load (Kg) 3000

Specifications

Product Code 3001488
Product Name Fork Spreader with Load Guard
Fork Pocket Centre (mm) 872
Fork Pocket Size (mm) 160 x 60
Net Weight (kg) 260
Safe Working Load (Kg) 3000
