Jib Attachment

Code: 3001489

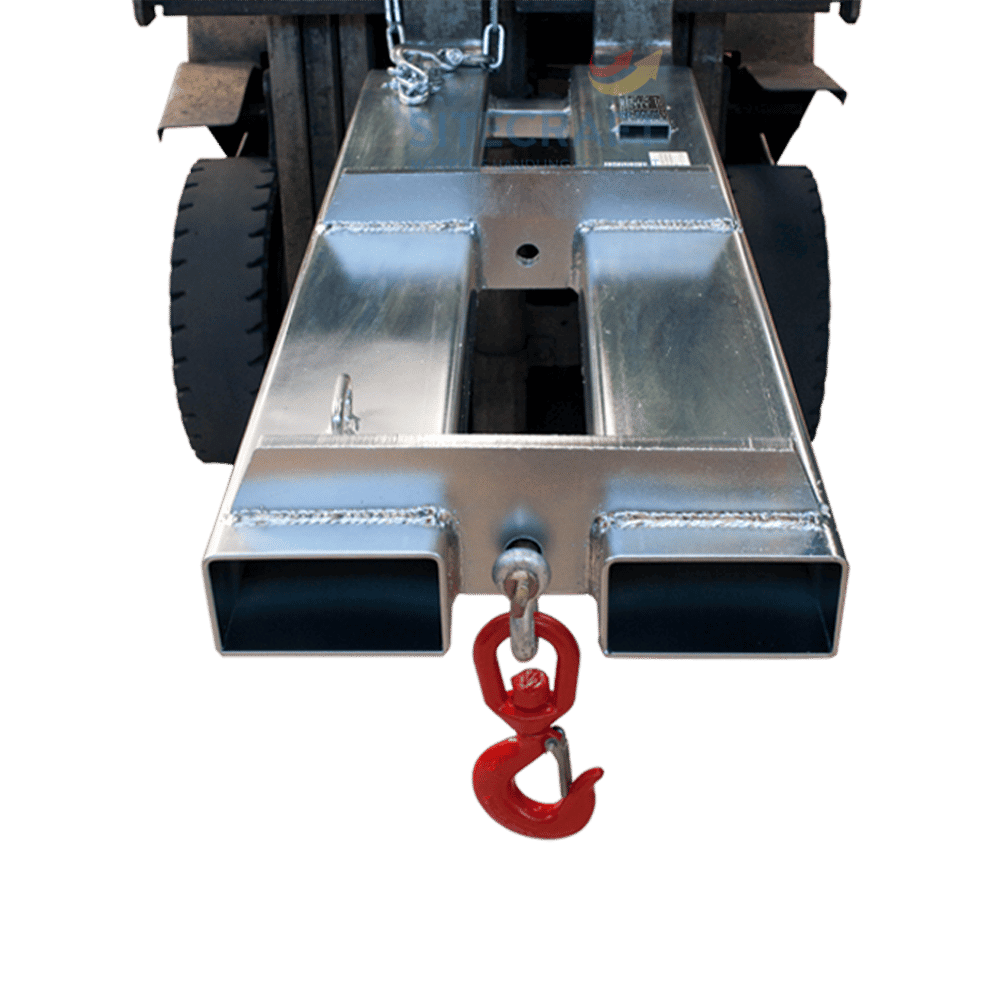

This Jib has been designed as a simple jib with 2 hook positions 500mm apart, with a WLL of 2000kg. Secured to the forklift by a safety chain it comes complete with a 2T safety swivel hook.
Note: The lift capacities stated are a structural rating for the jib only, and make no claim as to the suitability of the forklift. Actual forklift capacity may be less than the structural capacity of the jib. Check with the forklift supplier for actual working capacities.In accordance with AS2359.1, when lifting with a jib attachment, the nett lifting capacity should be 0.8 times the rating of the forklift, to allow for a swinging load.

Working Load Limit (WLL): 2000kg
Unit Weight: 37kg
Load Centre: 1000mm
Fork Pocket Size: 140mm x 65mm
Fork Pocket Centres: 250mm
Durable Zinc finish

Specifications

Product Code 3001489
Product Name Jib Attachment
Fork Pocket Centre (mm) 275
Fork Pocket Size (mm) 165 x 65
Net Weight (kg) 45
Safe Working Load (Kg) 2000

Specifications

Product Code 3001489
Product Name Jib Attachment
Fork Pocket Centre (mm) 275
Fork Pocket Size (mm) 165 x 65
Net Weight (kg) 45
Safe Working Load (Kg) 2000
