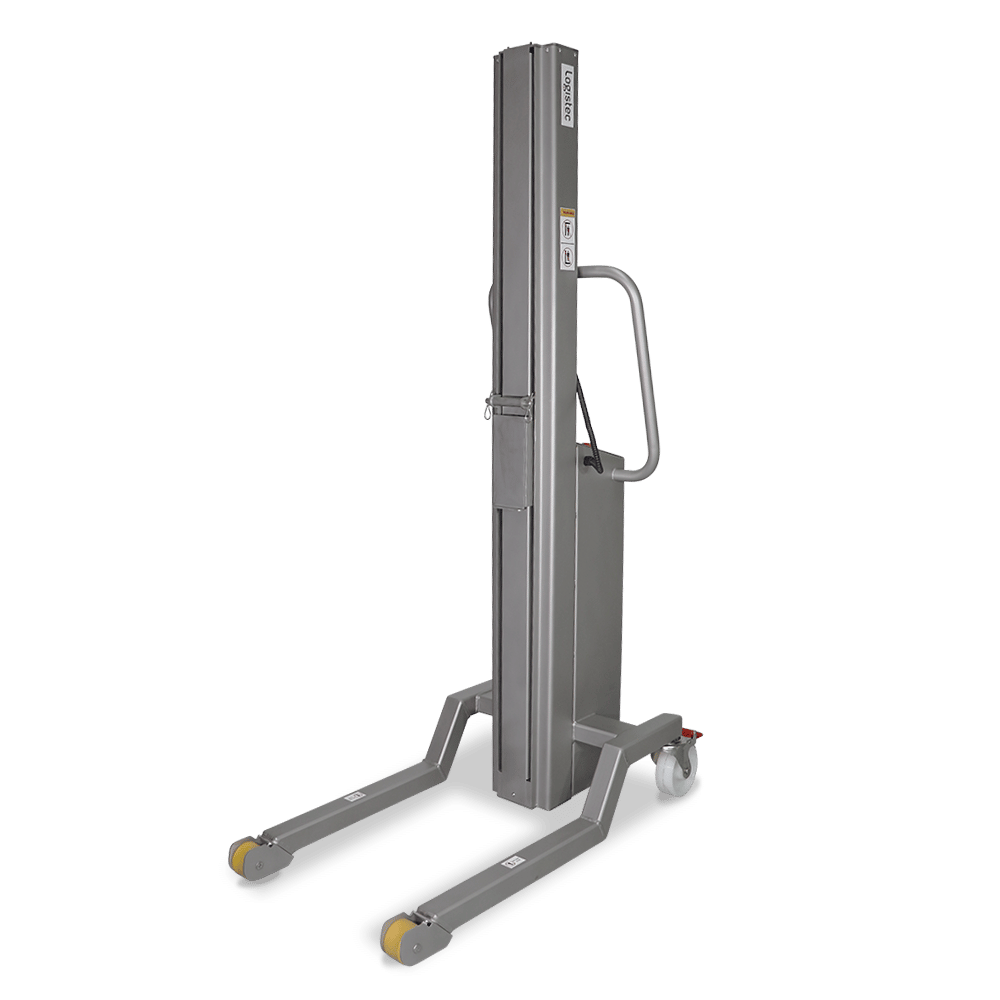

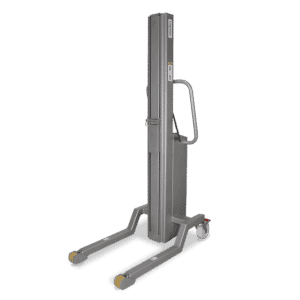

Logistec Electric Stainless Steel Lifter 300Kg

Logistec Electric Stainless Steel Lifter 300Kg

The Logistec battery/electric stainless-steel lifter is flexible in design, ergonomic, operator friendly and easy to use. With its range of features and functionality it meets the needs of today's lifting requirements. Manufactured from stainless steel, the Logistec lifter is ideal for industries where hygiene and resistance to chemicals is paramount importance. Battery powered with an inbuilt battery charger, making these lifters practical and easy to manoeuvre. These versatile lifters are used in the food, dairy, medical, chemical and pharmaceutical industries for a variety of applications including reel / roll handling, bin & drum tipping plus many other tasks.

Lift Capacity: 300kg at 500mm load centre
Overall Dimensions: 2041mm (h) x 500mm (w) x 915mm (l)
Front Caster wheels: Fixed direction, 85mm (dia)

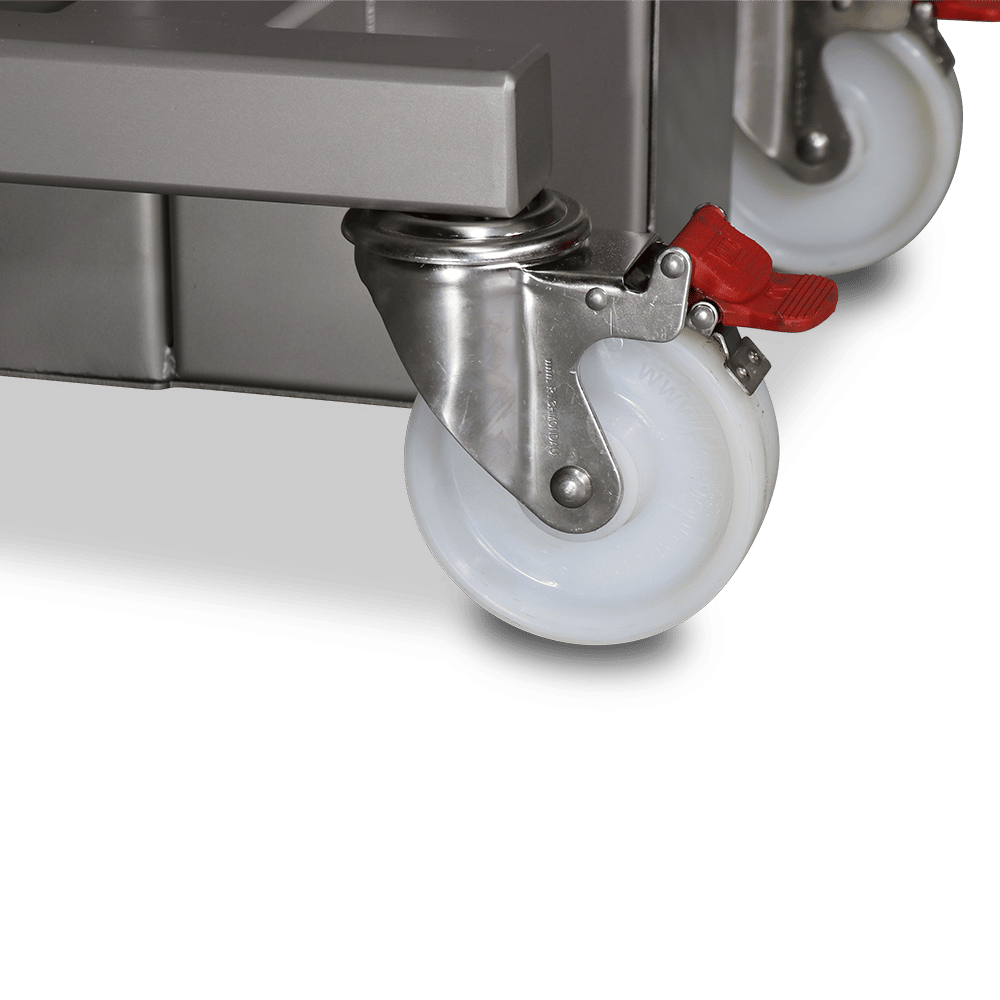

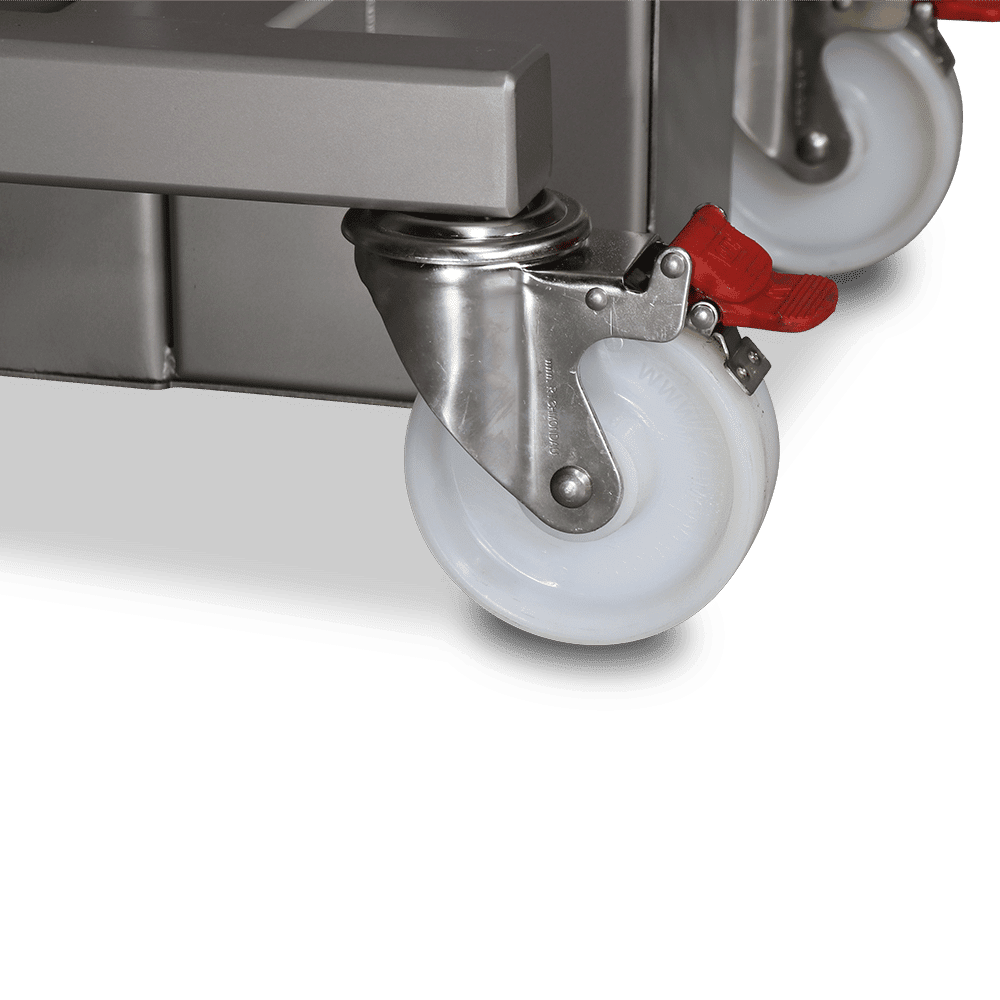

Rear Caster wheels: Swivel with brakes, 125mm (dia)
Unit Weight: 105Kg
Product Code Product Name Capacity (kg)Castor Size (mm)Castor TypeDimensions (mm) Price
6051001 Stainless Steel Lifter 300Kg 300  Front 85(dia), Rear 125(dia)  Front Fixed direction, Rear Swivel with brakes  2041(h) x 500(w) x 915(l)

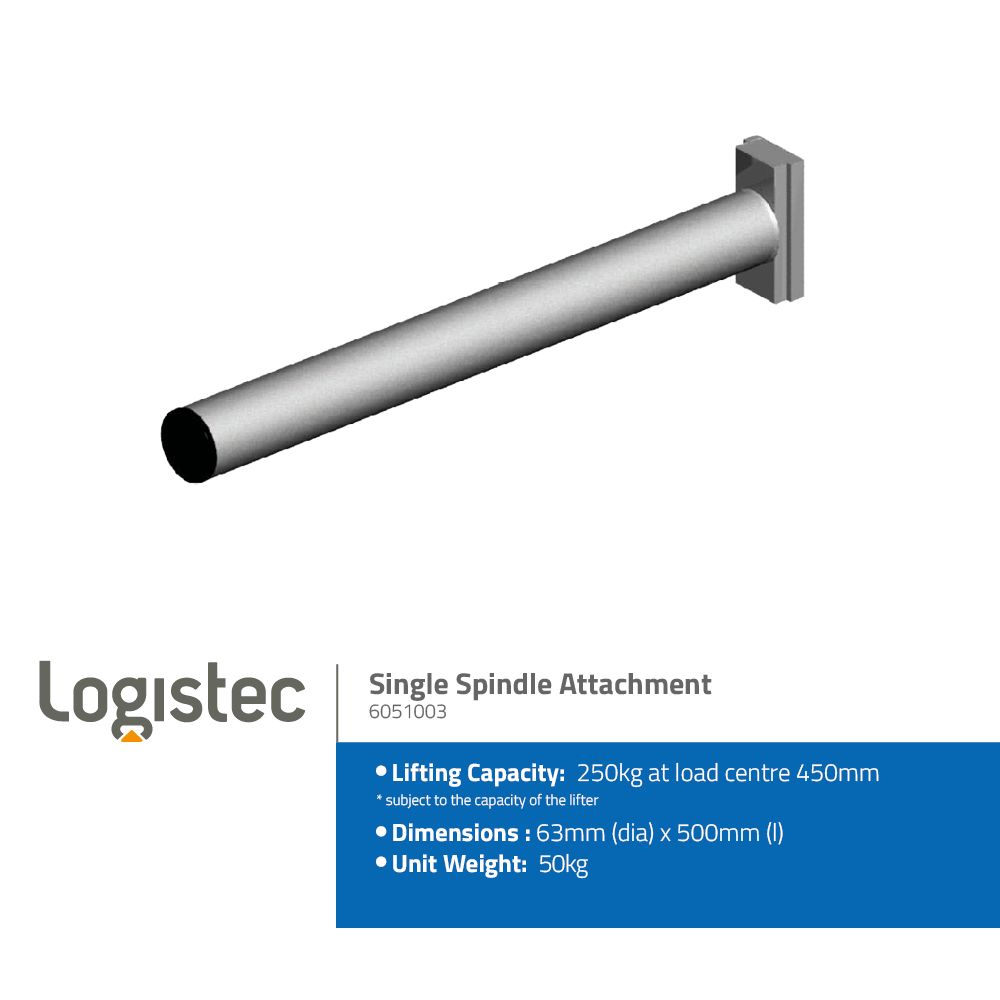

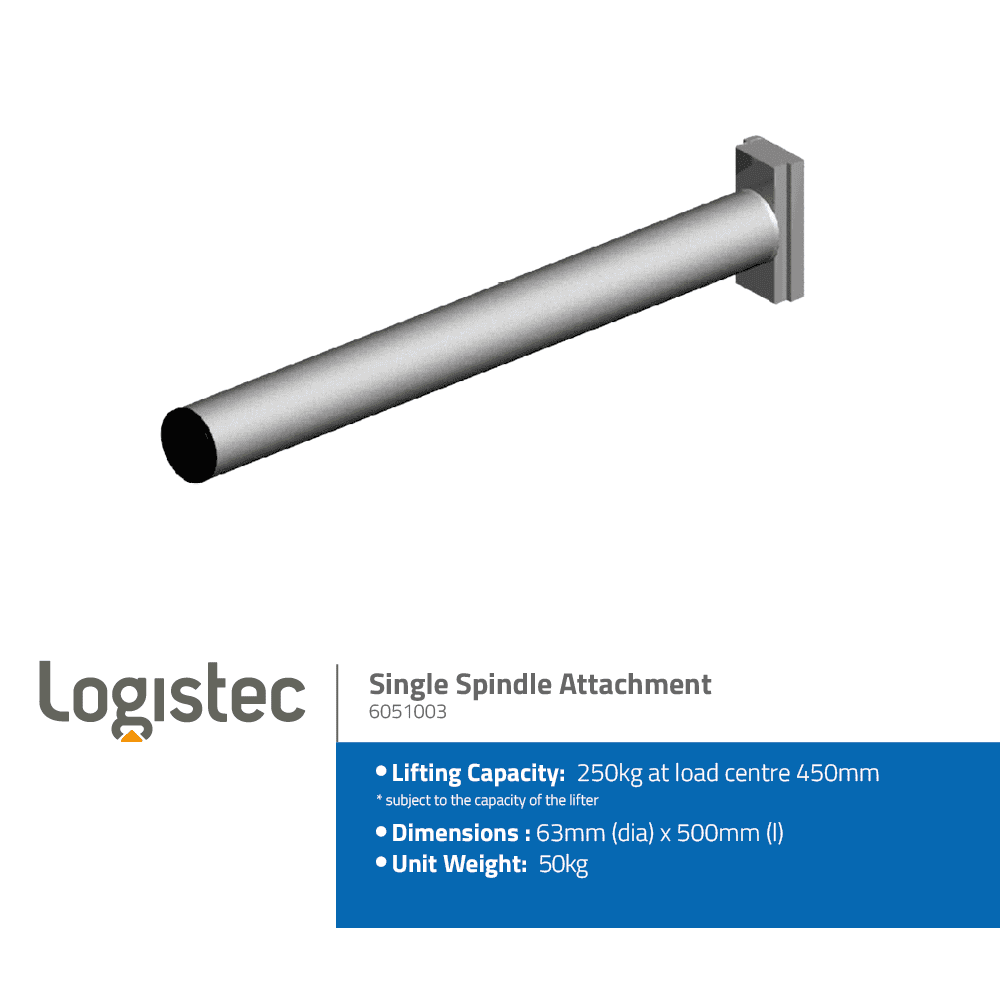

6051003 Single Spindle Attachment

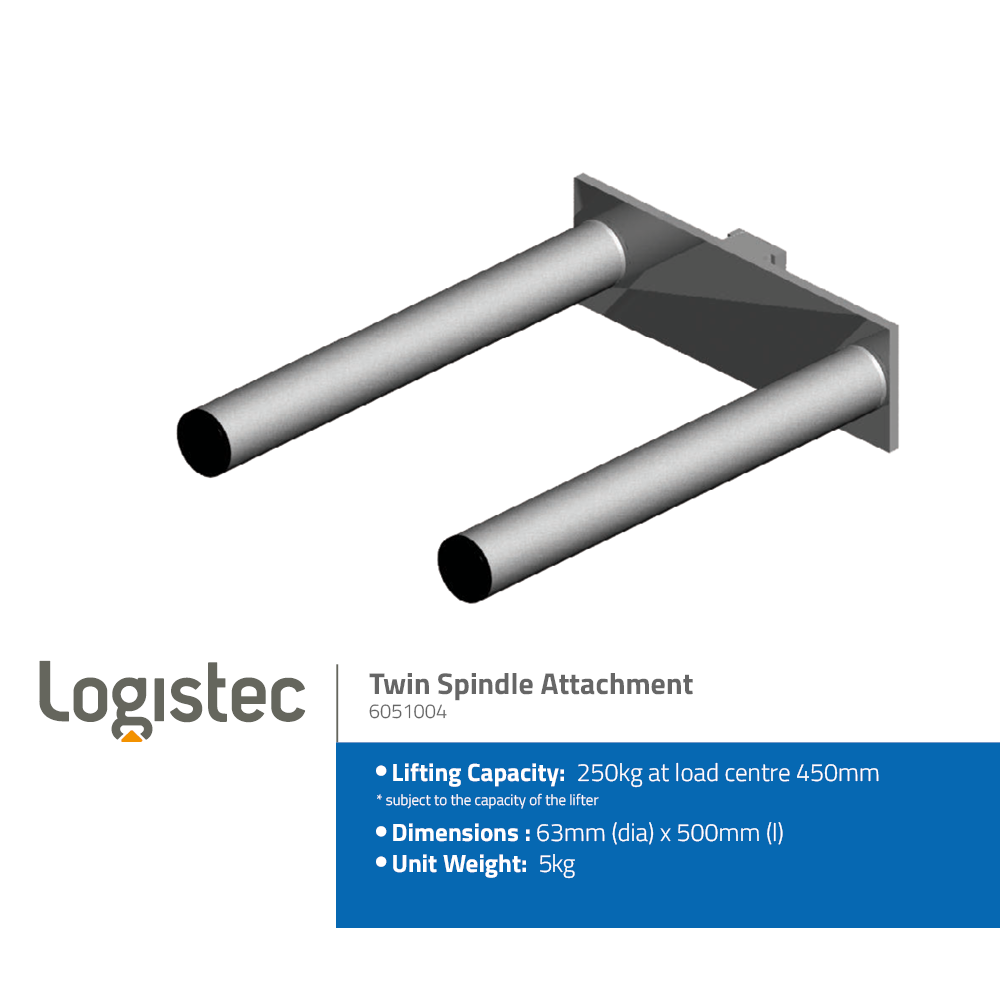

6051004 Twin Spindle Attachment

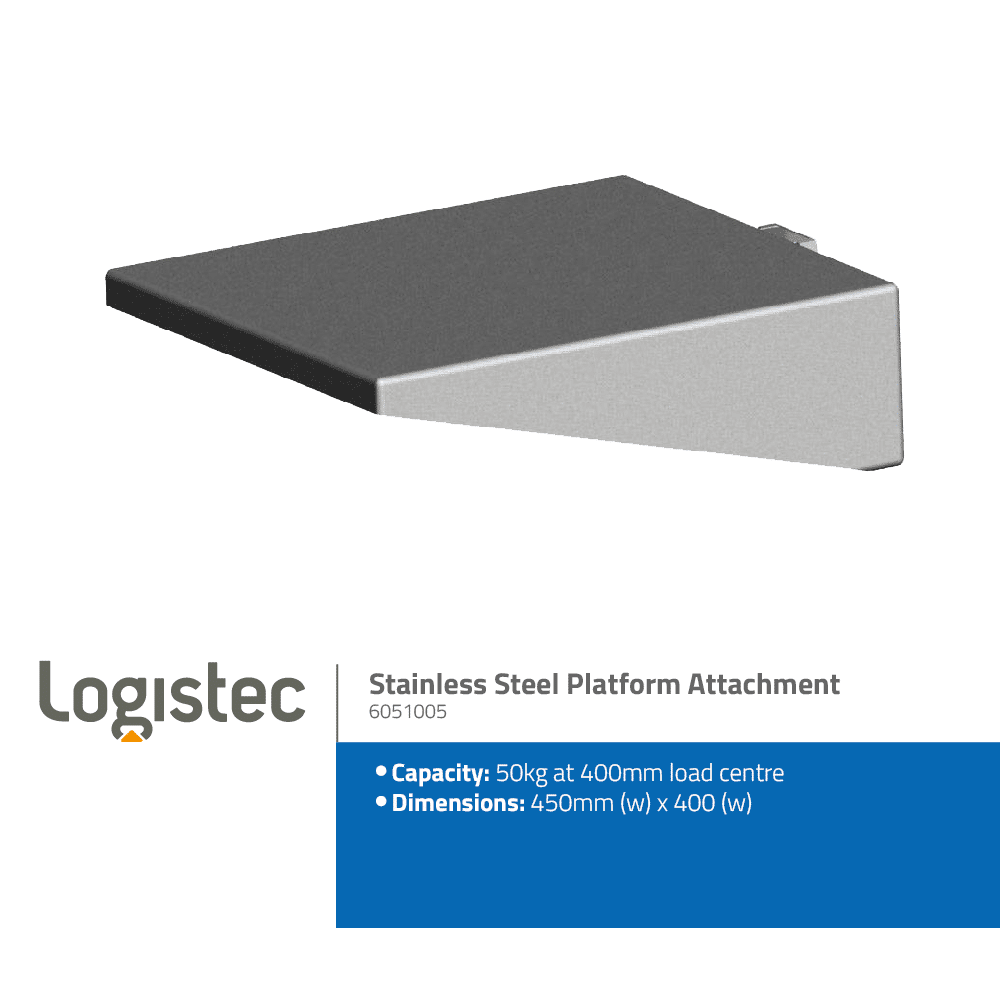

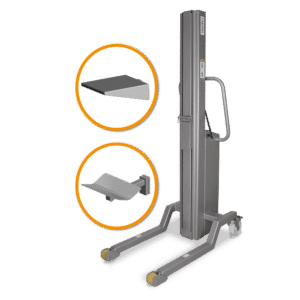

6051005 Stainless Steel Platform Attachment
6051006 Rotary V Tray Attachment

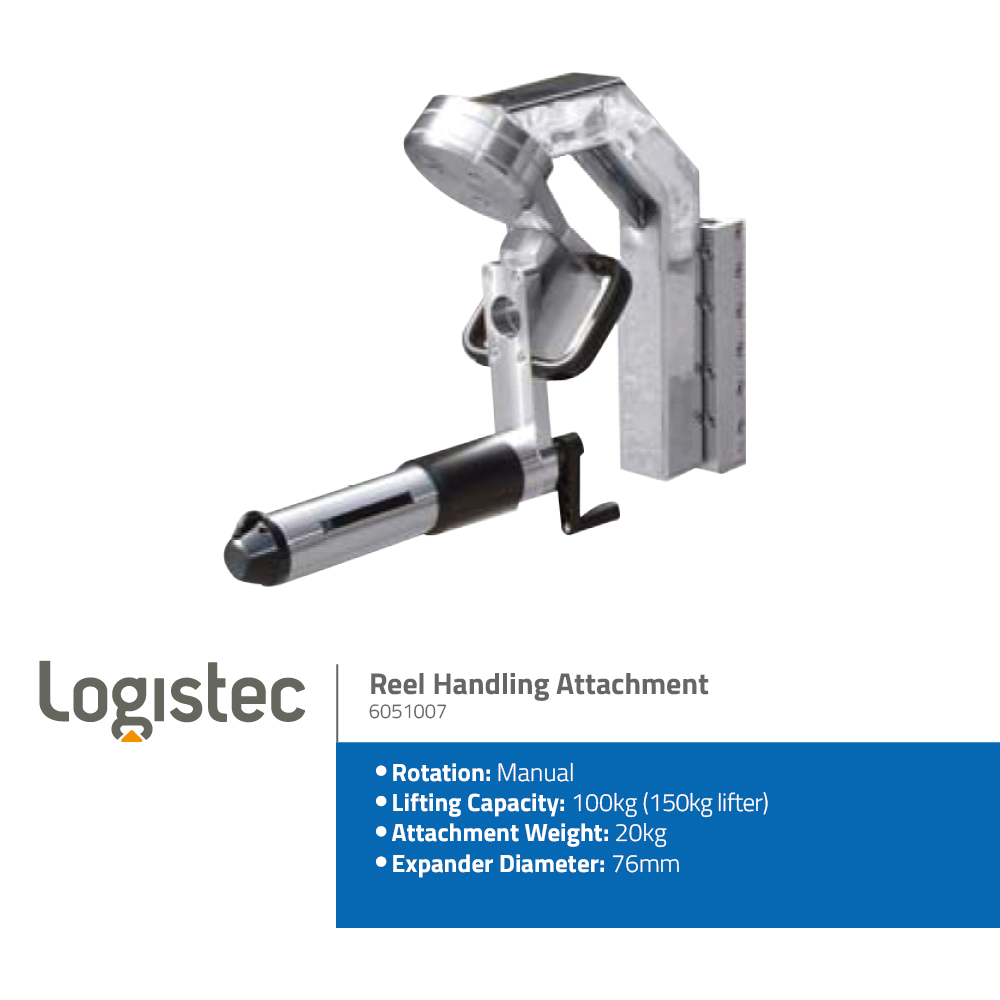

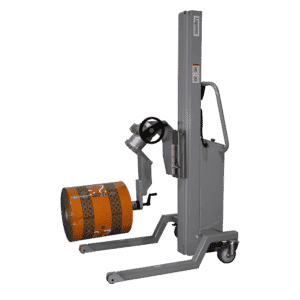

6051007 Reel Handling Attachment

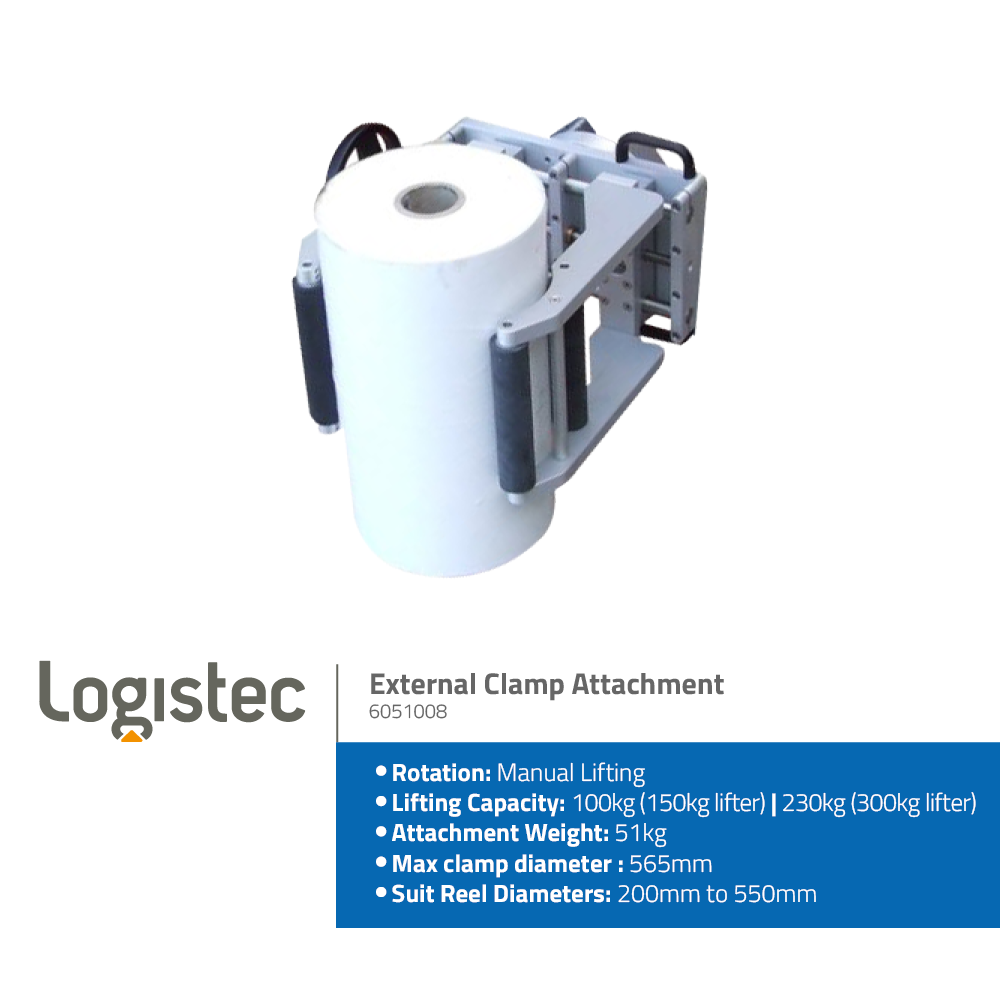

6051008 External Clamp Attachment

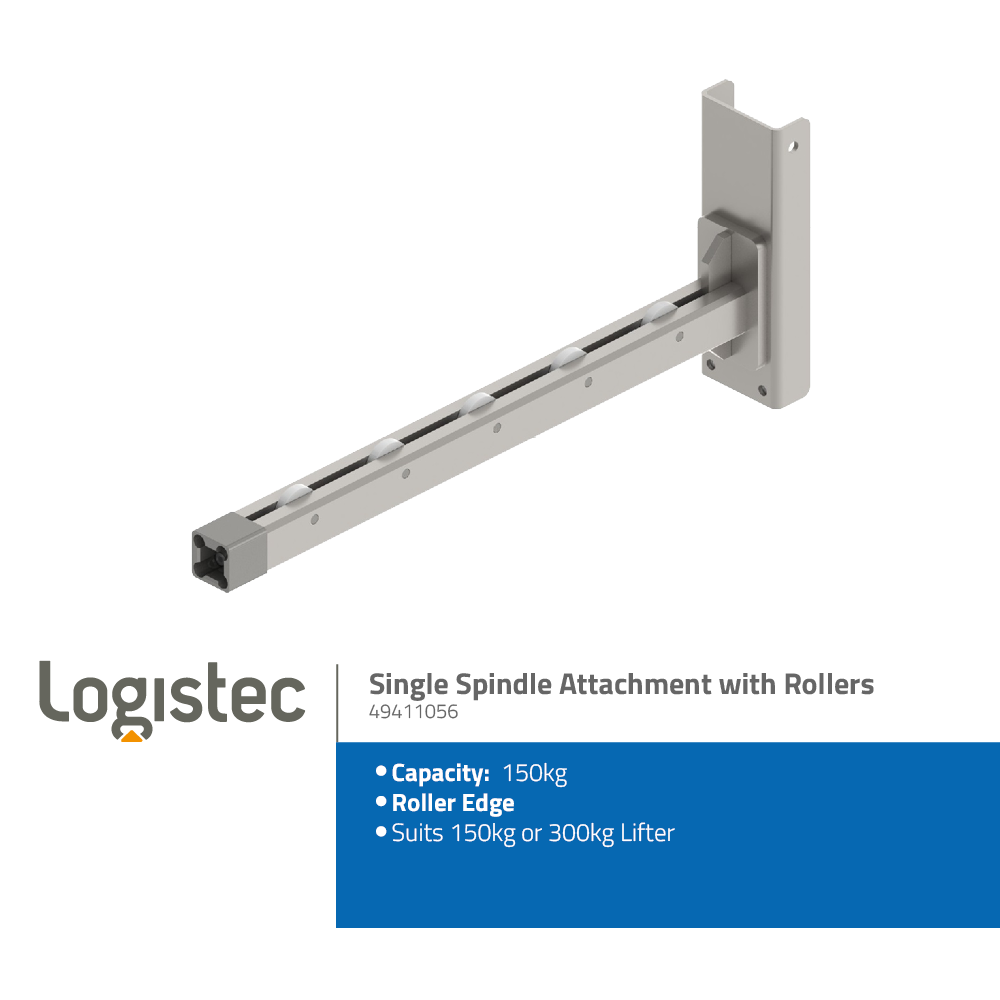

49411056 Single Spindle Attachment with Rollers

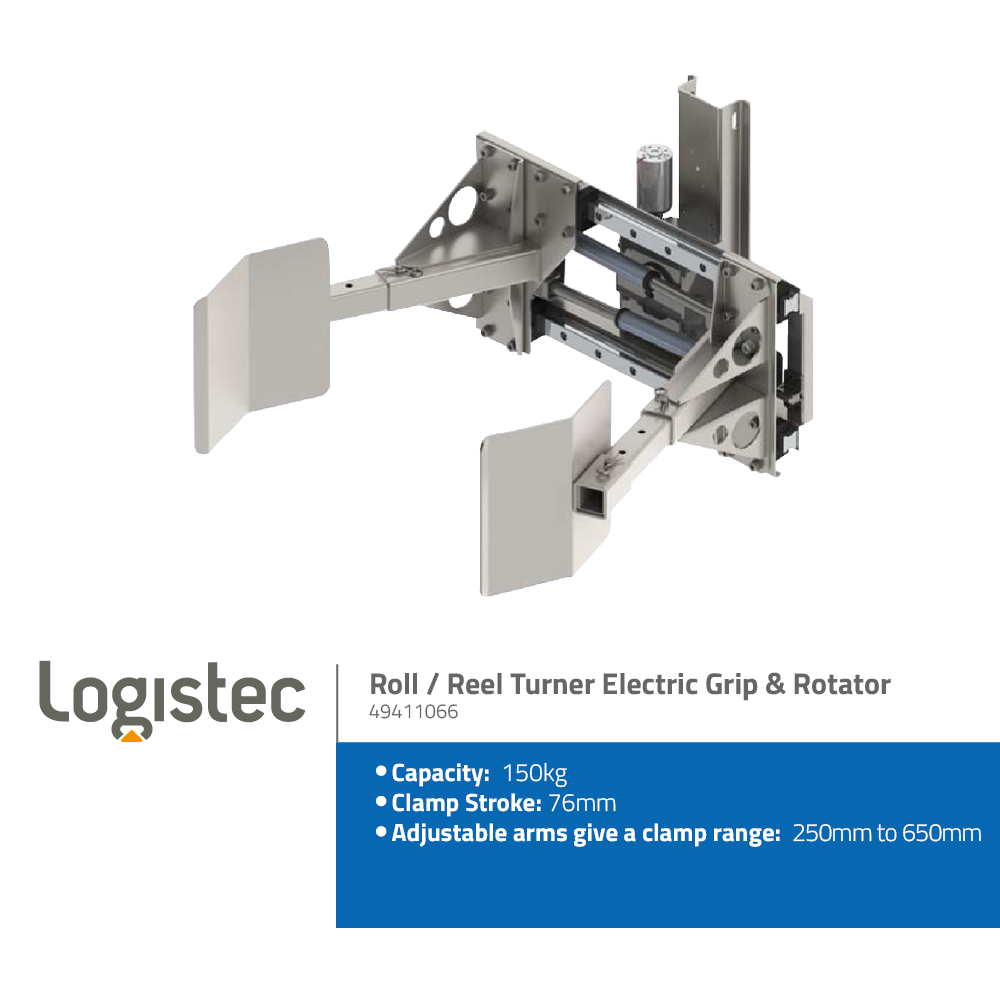

49411066 External Electric Clamp and Rotate Attachment
49411078 Electric Roll / Reel Turner Internal Grip & Rotate Attachment

Logistec Stainless Steel Lifter Features

Engineered and tested to our own exacting quality standards and using only fully approved components the Logistec Lifter has been designed to provide a low maintenance, reliable machine, that has been built to last.
Considering operator safety at all times the Logistec Lifter has been designed to meet the latest international health and safety directives, with supporting risk assessment, technical files and documentation.
With a small footprint and easy operation, the Logistec Lifter can be used in the confined workspaces and narrow production lines found in many of today's modern manufacturing environments

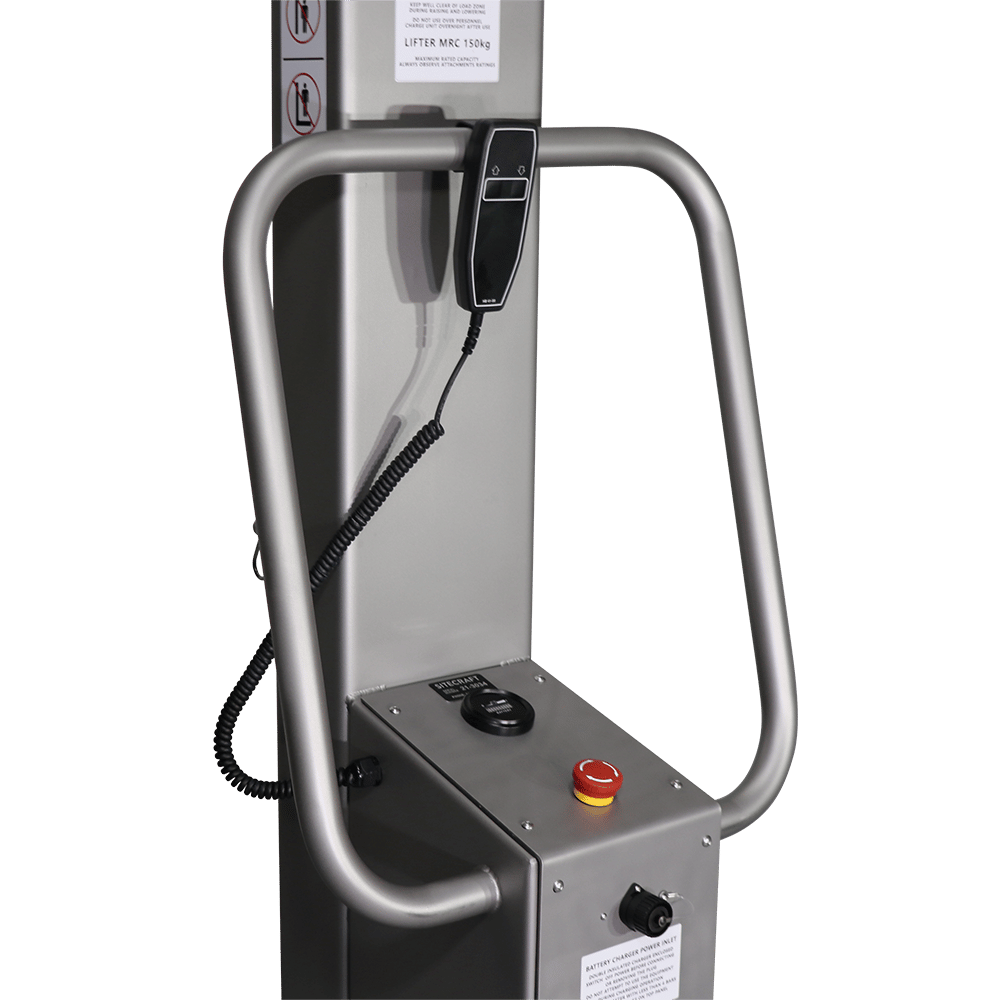

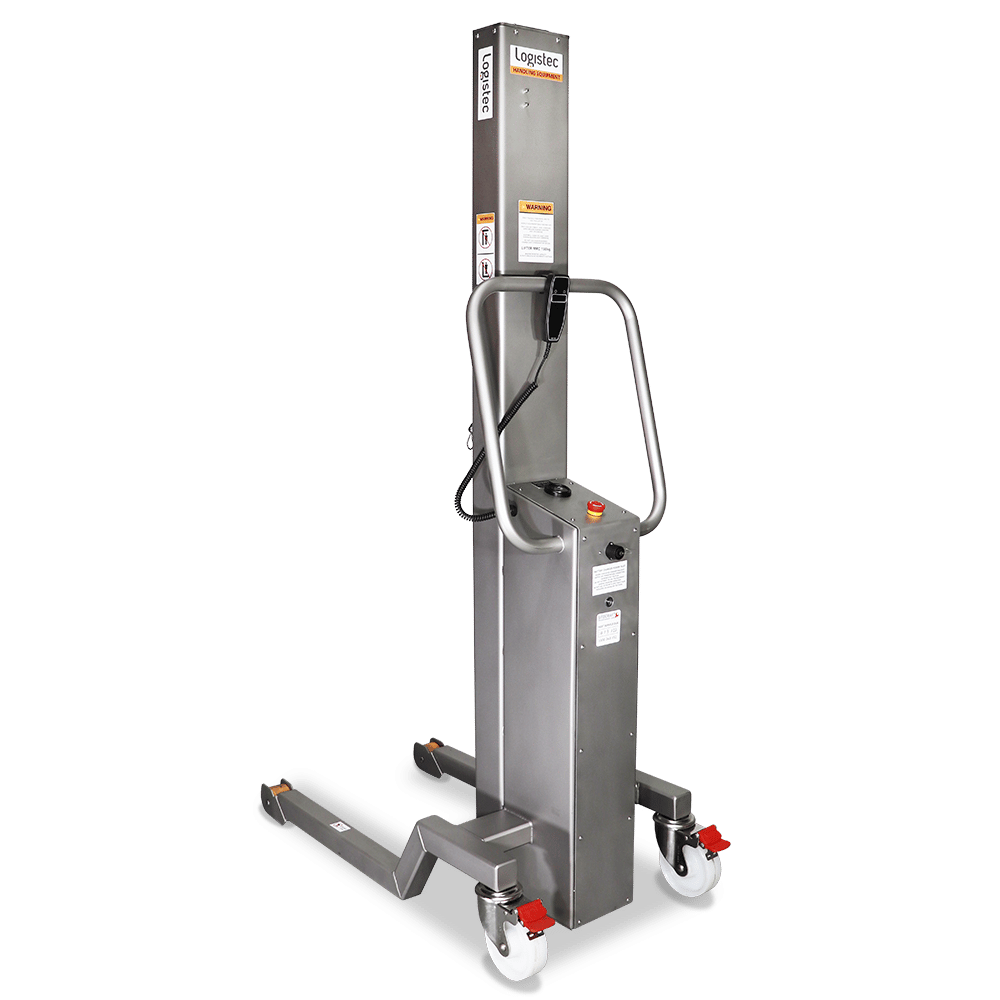

The Logistec stainless steel lifter is powered by 12v DC battery operated system with the carriage lift being generated from a motor driven precision ball screw eliminating the need to use any hydraulics and consequent risk of oil leaks.

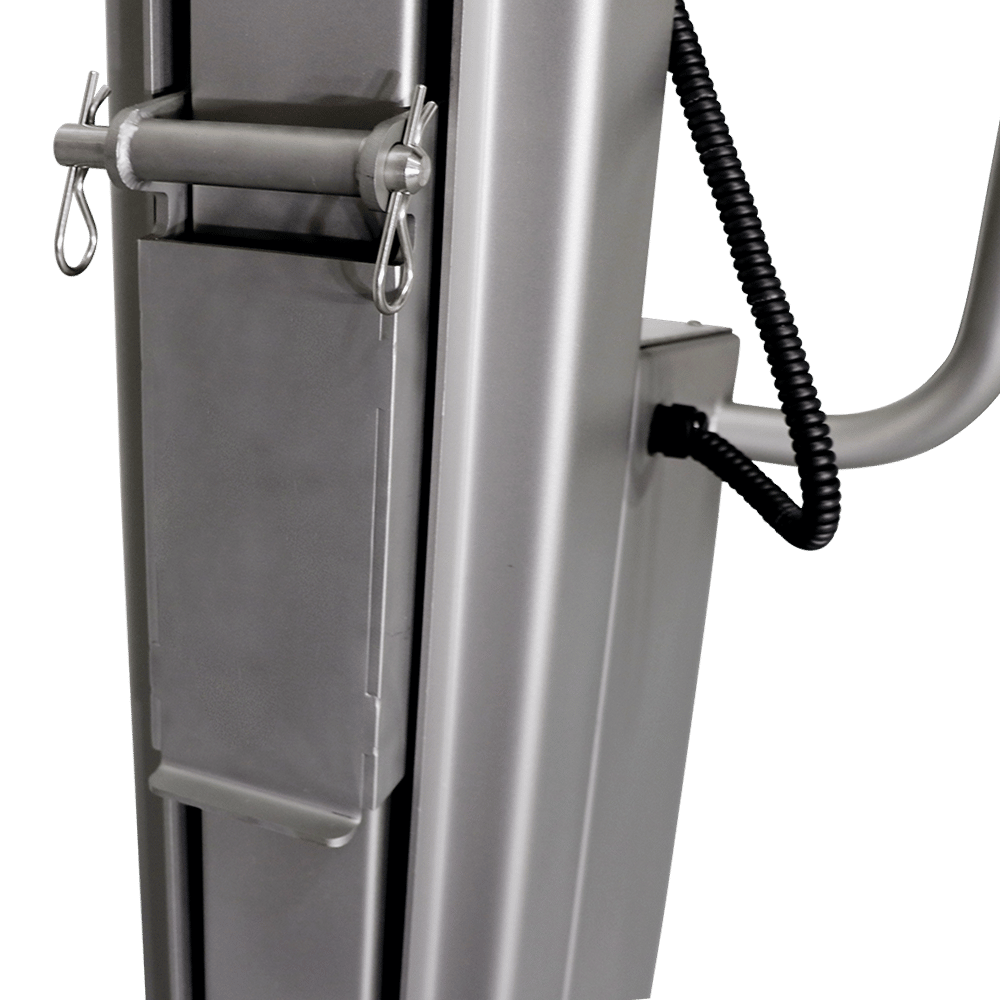

The Logistec lifter can be supplied with a wide variety of lifting and handling attachments.
This includes, rotating clamp attachment, reel and roll handling and load platform attachment. All attachments are supplied separately.
Australian Made Product

Specifications

Product Code 6051001 6051003 6051004 6051005 6051006 6051007 6051008 49411056 49411066 49411078
Product Name Stainless Steel Lifter 300Kg Single Spindle Attachment Twin Spindle Attachment Stainless Steel Platform Attachment Rotary V Tray Attachment Reel Handling Attachment External Clamp Attachment Single Spindle Attachment with Rollers External Electric Clamp and Rotate Attachment Electric Roll / Reel Turner Internal Grip & Rotate Attachment
Capacity (kg) 300
Castor Size (mm) Front 85(dia), Rear 125(dia)
Castor Type Front Fixed direction, Rear Swivel with brakes
Dimensions (mm) 2041(h) x 500(w) x 915(l)

Specifications

Product Code 6051001 6051003 6051004 6051005 6051006 6051007 6051008 49411056 49411066 49411078
Product Name Stainless Steel Lifter 300Kg Single Spindle Attachment Twin Spindle Attachment Stainless Steel Platform Attachment Rotary V Tray Attachment Reel Handling Attachment External Clamp Attachment Single Spindle Attachment with Rollers External Electric Clamp and Rotate Attachment Electric Roll / Reel Turner Internal Grip & Rotate Attachment
Capacity (kg) 300
Castor Size (mm) Front 85(dia), Rear 125(dia)
Castor Type Front Fixed direction, Rear Swivel with brakes
Dimensions (mm) 2041(h) x 500(w) x 915(l)
