Logistec Electric Stainless Steel Lifter 150Kg

Logistec Electric Stainless Steel Lifter 150Kg

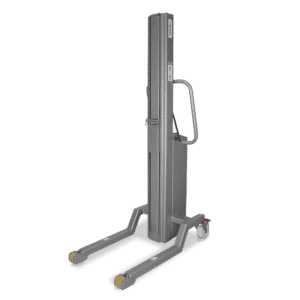

The Logistec stainless steel lifter is flexible in design, ergonomic, operator friendly, easy to use and with it's range of features and functionality it meets the needs of today's lifting requirements. Primarily manufactured from stainless steel, the Logistec lifter is ideal for industries where hygiene and resistance to chemicals is paramount importance. Battery powered with an onboard electric battery charger for convenience making these lifters practical and mobile. For use in the food, dairy, medical, chemical and pharmaceutical industries for a variety of applications including reel / roll handling, bin & drum tipping plus many other tasks.

Lift Capacity: 150kg
Load Centre: 500mm
Overall Dimensions: 2036mm (h) x 915mm (l) x 500mm (w)
Front Caster wheels: Swivel, 50mm (dia)
Rear Caster wheels: Swivel with brakes, 125mm (dia)
Unit Weight: 85Kg
Product Code Product Name Castor Size (mm)Castor TypeDimensions (mm)Load Capacity (kg) Price
6051002 Stainless Steel Lifter 150Kg Front 50 (dia), Rear 125 (dia)  Front Swivel, Rear Swivel with brakes  2036 (h) x 915 (l) x 500 (w)  150
6051003 Single Spindle Attachment
6051004 Twin Spindle Attachment
6051005 Stainless Steel Platform Attachment
6051006 Rotary V Tray Attachment
6051007 Reel Handling Attachment
6051008 External Clamp Attachment
49411056 Single Spindle Attachment with Rollers
49411066 External Electric Clamp and Rotate Attachment
49411078 Electric Roll / Reel Turner Internal Grip & Rotate Attachment

Logistec Stainless Steel Lifter Features

Engineered and tested to our own exacting quality standards and using only fully approved components the Logistec Lifter has been designed to provide a low-maintenance, reliable machine, that has been built to last.
Considering operator safety at all times the Logistec Lifter has been designed to meet the latest international health and safety directives, CE approved with supporting risk assessment, technical files and documentation.
With a small footprint and easy operation, the Logistec Lifter can be used in the confined work spaces and narrow production lines found in many of today's modern manufacturing environments
The Logistec Lifter is powered by 12v dc battery operated system with the carriage lift being generated from a motor-driven precision ballscrew eliminating the need to use any hydraulics and consequent risk of oil leaks.

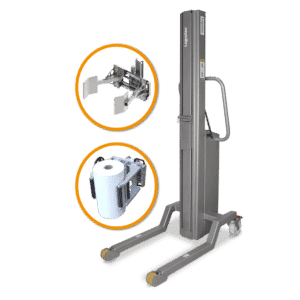

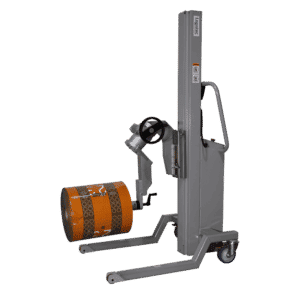

Logistec unit pictured with rotating clamp attachment. All attachments are supplied separately.
Australian Made Product

Specifications

Product Code 6051002 6051003 6051004 6051005 6051006 6051007 6051008 49411056 49411066 49411078
Product Name Stainless Steel Lifter 150Kg Single Spindle Attachment Twin Spindle Attachment Stainless Steel Platform Attachment Rotary V Tray Attachment Reel Handling Attachment External Clamp Attachment Single Spindle Attachment with Rollers External Electric Clamp and Rotate Attachment Electric Roll / Reel Turner Internal Grip & Rotate Attachment
Castor Size (mm) Front 50 (dia), Rear 125 (dia)
Castor Type Front Swivel, Rear Swivel with brakes
Dimensions (mm) 2036 (h) x 915 (l) x 500 (w)
Load Capacity (kg) 150

Specifications

Product Code 6051002 6051003 6051004 6051005 6051006 6051007 6051008 49411056 49411066 49411078
Product Name Stainless Steel Lifter 150Kg Single Spindle Attachment Twin Spindle Attachment Stainless Steel Platform Attachment Rotary V Tray Attachment Reel Handling Attachment External Clamp Attachment Single Spindle Attachment with Rollers External Electric Clamp and Rotate Attachment Electric Roll / Reel Turner Internal Grip & Rotate Attachment
Castor Size (mm) Front 50 (dia), Rear 125 (dia)
Castor Type Front Swivel, Rear Swivel with brakes
Dimensions (mm) 2036 (h) x 915 (l) x 500 (w)
Load Capacity (kg) 150
