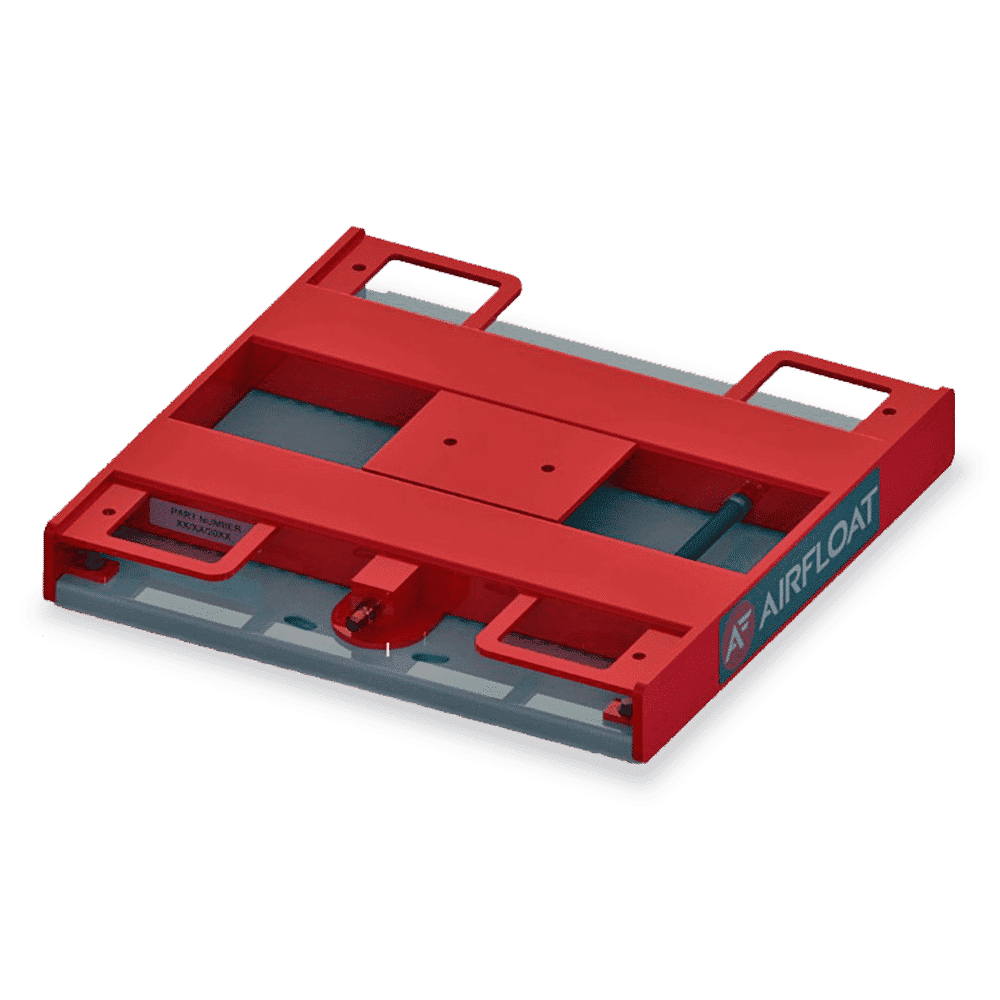

Air Skid 425mm

Airfloat Air Bearing Skids (or ‰ÛÏair castors‰Û) are a versatile pneumatic/air support device. These allow the safe, near frictionless movement of heavy loads and large equipment. Underneath the sturdy support platform is a durable and flexible urethane diaphragm which is inflated using compressed air. This air inflates the diaphragm, passing through the many small holes, which raises the platform of the floor, enabling the load to float on a thin film of air.

The 425 mm single air skid has a maximum capacity of 2,840 kg. These are available as a single unit or combined in a kit of 4 unit, giving a combined capacity of 11,360 kg.

Flexible - designed to handle a wide range of weights and machinery/equipment
Simple - Low maintenance, easy to operate and very reliable
Omnidirectional - Move with ease in any direction and operates in normally confined spaces
Configurable - Can be placed in various configurations or fixed under existing equipment or products for safe and easy movement
Virtually friction free - move 450 kg with only 450 grams of force
Product Code Product Name Capacity (kg)Height (mm)Length (mm)Weight (kg)Width (mm) Price
49641006 Single Air Skid 425mm 2841  76  470  20  464
49641007 4 Piece Air Skid Kit 11364  76  470  80  464

Specifications

Product Code 49641006 49641007
Product Name Single Air Skid 425mm 4 Piece Air Skid Kit
Capacity (kg) 2841 11364
Height (mm) 76 76
Length (mm) 470 470
Weight (kg) 20 80
Width (mm) 464 464

Specifications

Product Code 49641006 49641007
Product Name Single Air Skid 425mm 4 Piece Air Skid Kit
Capacity (kg) 2841 11364
Height (mm) 76 76
Length (mm) 470 470
Weight (kg) 20 80
Width (mm) 464 464
