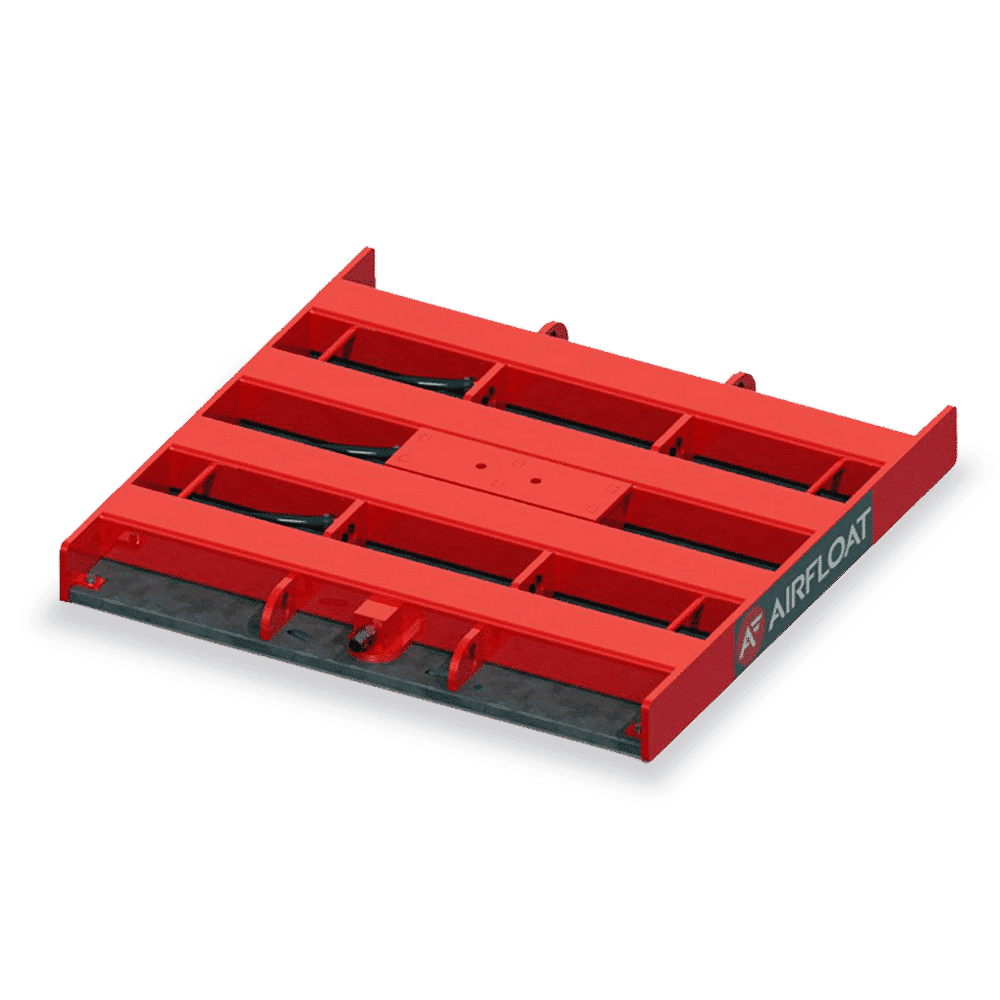

Air Skid 900mm

Airfloat Air Bearing Skids (or air castors) are a versatile pneumatic/air support device. These allow the safe, near frictionless movement of heavy loads and large equipment. Underneath the strong load support platform is a durable and flexible urethane diaphragm that is inflated using compressed air. This air inflates the diaphragm, passing through the many small holes, which enables the load to float on a thin film of air.

The 900 mm single air skid has a maximum capacity of 14,205 kg. These may be purchased individually or in a set of 4 units giving a huge load capacity of 56,820 kg.

Flexible - designed to handle a wide range of weights and machinery/equipment
Simple - Low maintenance, easy to operate and very reliable
Omnidirectional - Move with ease in any direction and operates in normally confined spaces
Configurable - Can be placed in various configurations or fixed under existing equipment or products for safe and easy movement
Virtually friction free - move 450 kg with only 450 grams of force
Product Code Product Name Capacity (kg)Height (mm)Length (mm)Weight (kg)Width (mm) Price
49641012 Single Air Skid 900mm 14205  102  959  107  953
49641013 4 Piece Air Skid Kit 56818  102  959  427  953

Specifications

Product Code 49641012 49641013
Product Name Single Air Skid 900mm 4 Piece Air Skid Kit
Capacity (kg) 14205 56818
Height (mm) 102 102
Length (mm) 959 959
Weight (kg) 107 427
Width (mm) 953 953

Specifications

Product Code 49641012 49641013
Product Name Single Air Skid 900mm 4 Piece Air Skid Kit
Capacity (kg) 14205 56818
Height (mm) 102 102
Length (mm) 959 959
Weight (kg) 107 427
Width (mm) 953 953
