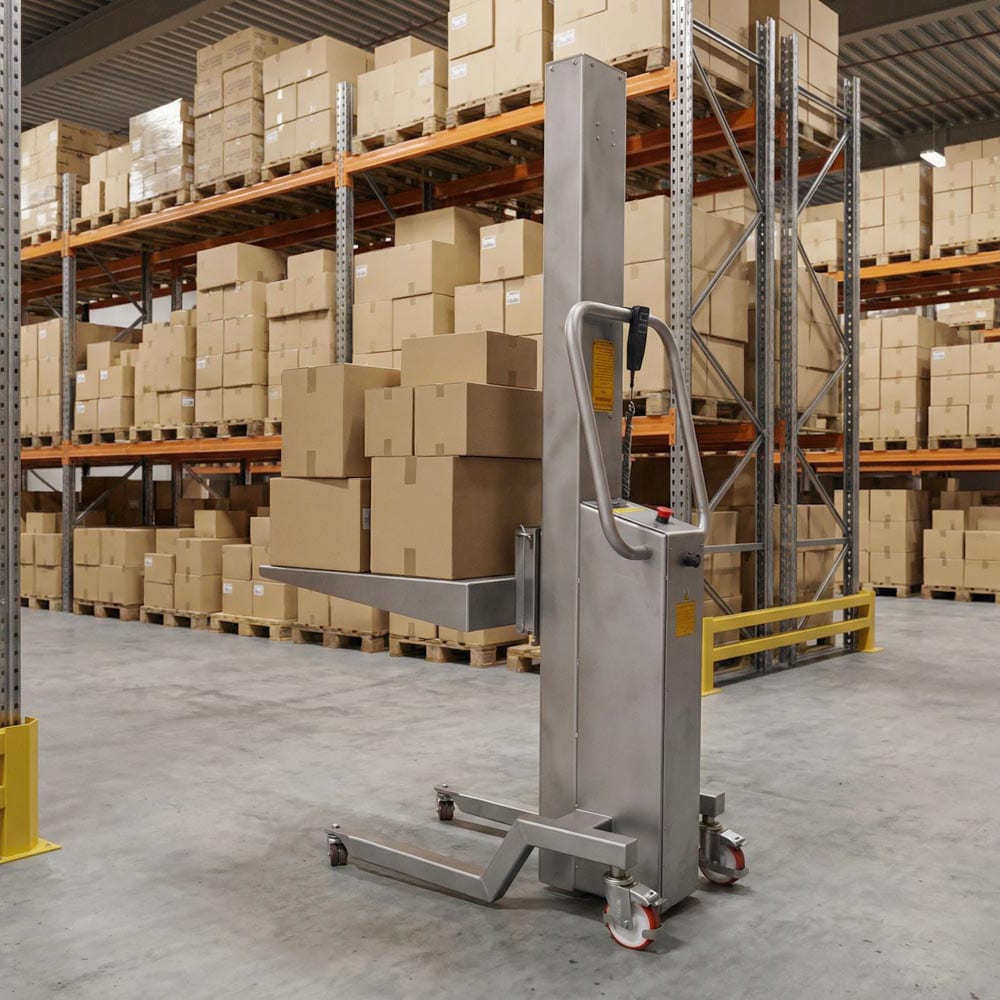

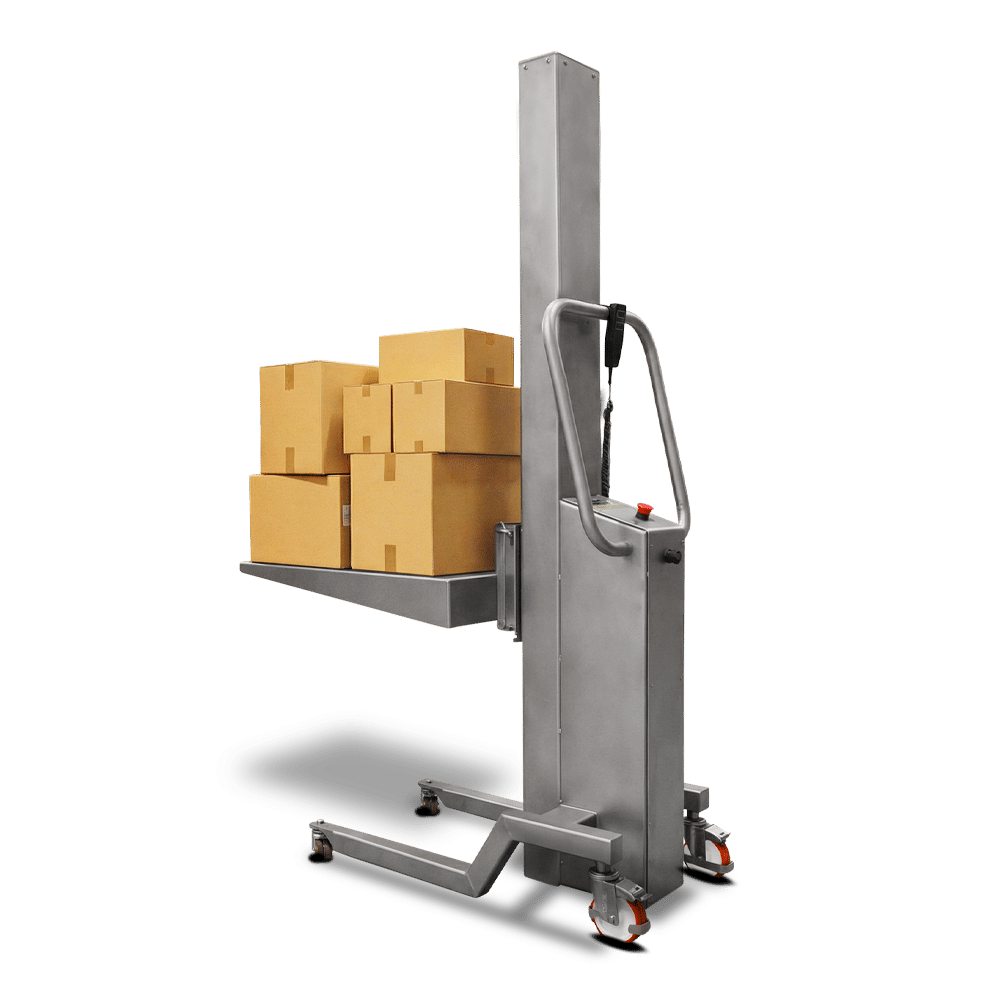

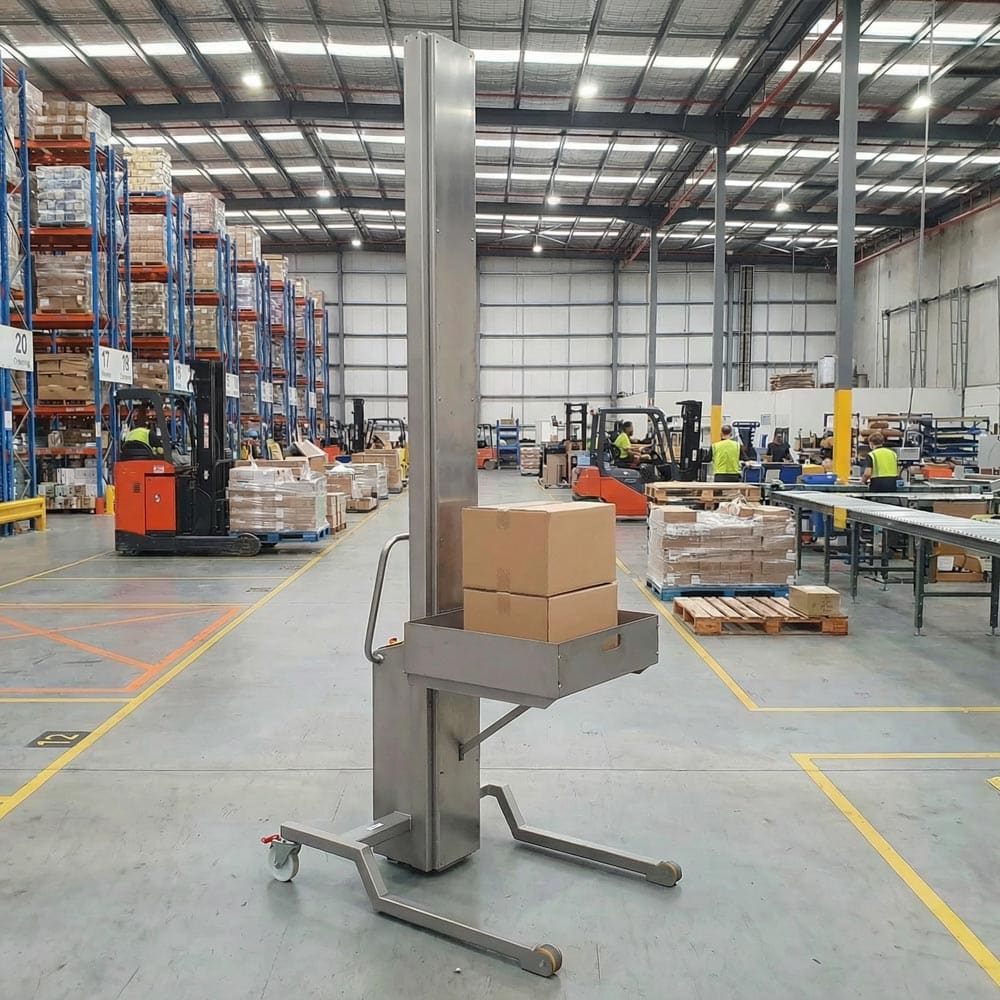

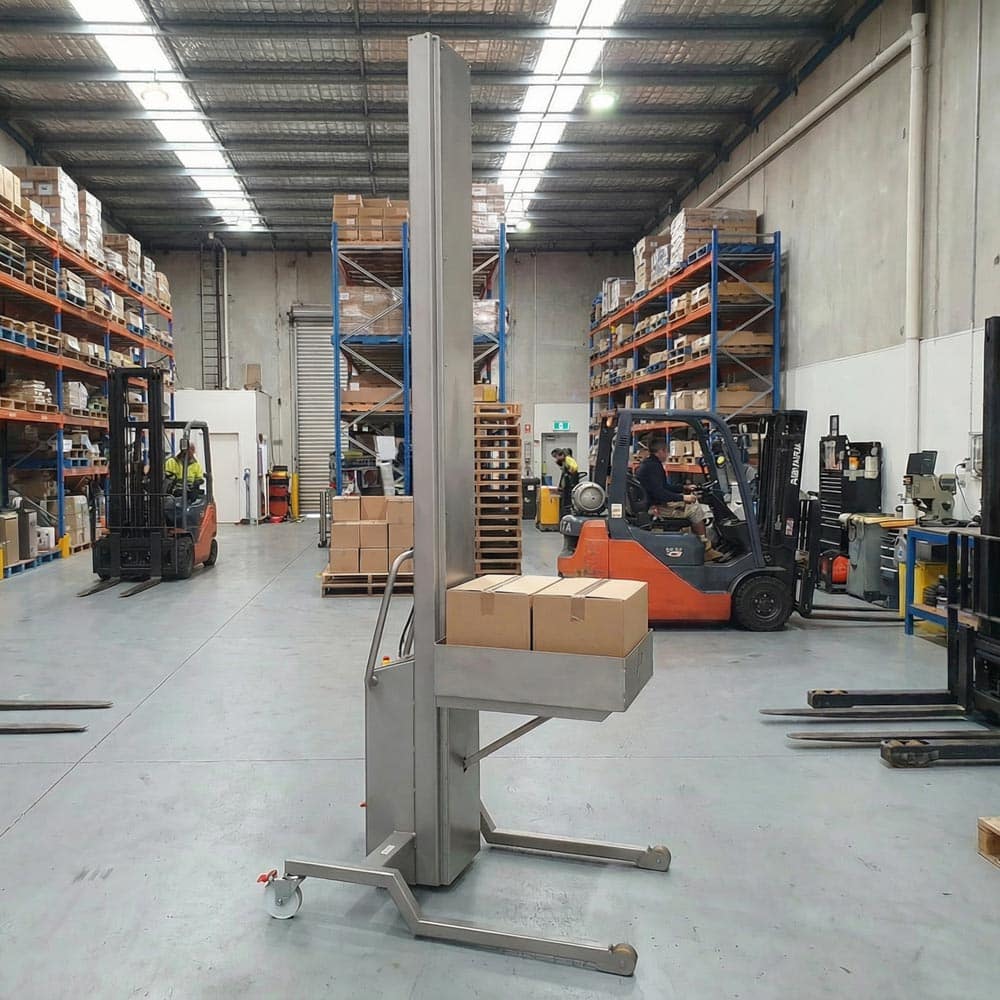

Box Heavy Duty Stainless Steel Electric Lifter is built for high-capacity box lifting in hygiene-controlled production environments. Designed for food processing, pharmaceutical manufacturing, clean packing lines and washdown areas, it combines stainless steel corrosion resistance with a reinforced heavy-duty frame for dependable daily use.

With capacity up to 300kg and a 500mm load centre, this box lifter supports safer warehouse lifting and carton handling where heavier cartons, ingredient boxes or bulk packs must be raised, positioned and transferred onto benches, conveyors or process stations. Electric lift operation reduces manual handling strain and improves placement accuracy, while fixed front castors provide straight tracking under load and braked rear swivel castors allow controlled positioning at the workstation.

Platform and fork configurations allow the unit to be matched to carton footprint, load stability requirements and transfer method. Built for heavier loads in hygiene-sensitive facilities, this model balances structural strength with cleanability. For non-washdown industrial environments, the heavy-duty steel box lifter delivers equivalent capacity in a standard finish.

Highly Configurable

• Attachments: stainless platforms, HDPE platforms and adjustable fork configurations selected to suit carton size and handling method
• Mast / lift height: fully customisable mast options to align with benches, conveyors and process equipment
• Controls: electric lift system for controlled raising and lowering
• Leg / base configuration: arranged for clearance around pallets, racking and production stations
• Castors: fixed 85mm front castors for load tracking; 125mm braked swivel rear castors for controlled positioning
• Capacity alignment: up to 300kg depending on load footprint and attachment selection

Attachment Options for Box Handling

Stainless Steel Platforms: suited to washdown and hygiene-sensitive areas where full surface support is required for cartons or ingredient boxes.

HDPE Platforms: reduce surface marking and suit lighter cartons in clean production zones.

Adjustable Forks: ideal for lifting cartons from pallets or stillages, allowing operators to pick, place and replenish stock directly.

Symmetric Adjustable Forks: provide balanced support for wider or heavier cartons requiring improved stability during lift.

Attachment choice directly impacts workflow: platforms provide full-base support for stable transfers, while fork options allow access beneath cartons for pallet-based warehouse lifting tasks.
