The Crate Heavy Duty Electric Lifter is a reinforced crate lifter built for higher-capacity lifting, positioning and transfer of crates, totes and containers in demanding industrial environments. Suited to warehousing, production supply, despatch and internal logistics workflows, it supports safer crate handling where heavier loads and repeated cycles require more structural strength than lightweight units.

With capacity up to 300kg and a 500mm load centre, this electric lifter provides stable lifting and controlled placement at benches, packing stations, conveyors and work zones. The heavy-duty steel frame delivers durability for daily use, while fixed-direction front castors support straight tracking under load and rear swivel castors with brakes allow secure positioning at the point of transfer. External clamp attachment options make it well suited to crate handling where side grip and controlled movement are preferred over fork or platform support.

This model is designed for sites that need dependable high-capacity warehouse lifting for crates and containers. For lower load weights and more frequent manoeuvring in tighter spaces, the lightweight crate lifter offers greater agility, while stainless steel variants suit hygiene-sensitive or washdown environments.

Highly Configurable

• Attachments: configurable with external clamp and external clamp with rotate attachment to suit crate type, grip point and handling method
• Mast height options: fully customisable mast configurations to match benches, conveyors, racking and transfer heights
• Lift height range: determined by mast selection to suit required pick and place points
• Controls: electric lift controls for smooth, controlled vertical movement during lifting and placement
• Leg / base configurations: configured to suit pallet access, workstation clearances and crate approach requirements
• Castor options: fixed 85mm front castors for directional stability and 125mm rear swivel castors with brakes for controlled positioning
• Load capacity alignment: up to 300kg depending on crate size, centre of gravity and selected attachment

Attachment Options for Crate Handling:

External Clamp Attachment
Designed for secure side gripping of crates and containers where fork entry or platform support is not ideal. Useful for controlled lifting, transfer and placement of rigid loads.

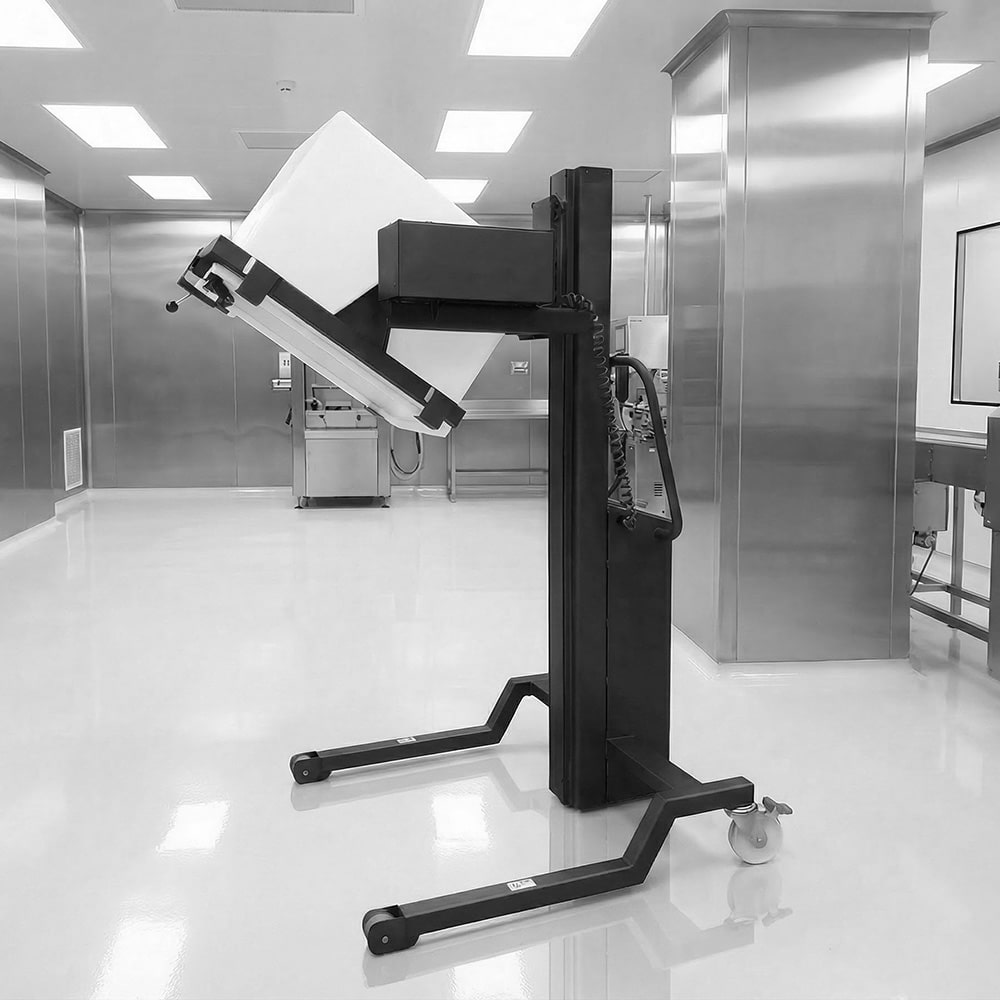

External Electric Clamp and Rotate Attachment
Adds powered gripping and rotation for applications where crates need repositioning, controlled turning or more precise presentation at workstations or process points.

Attachment choice changes the workflow: fixed clamp handling suits straightforward lift-and-place tasks, while clamp-and-rotate setups support grip, turn and position applications where orientation matters.
