Products Material Lifters... Box Lifters Crate Heavy Duty Stainless Steel Electric Lifter

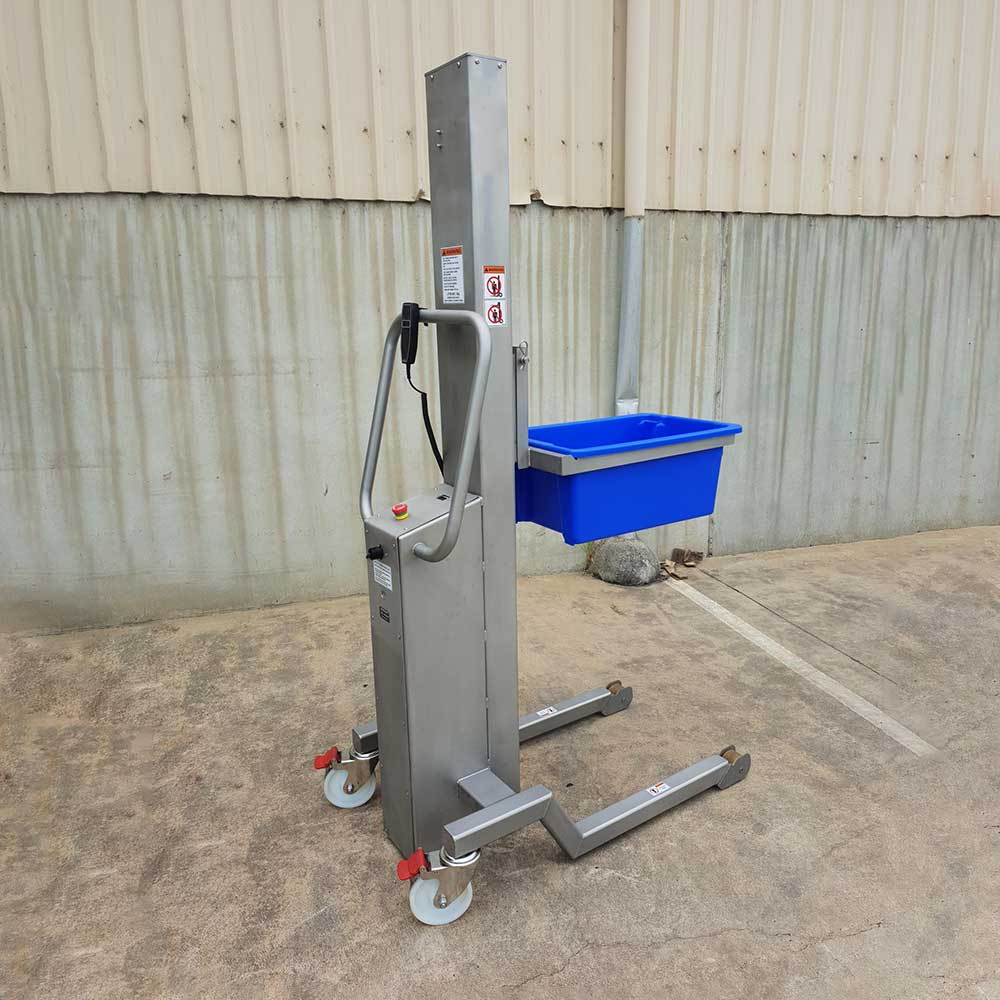

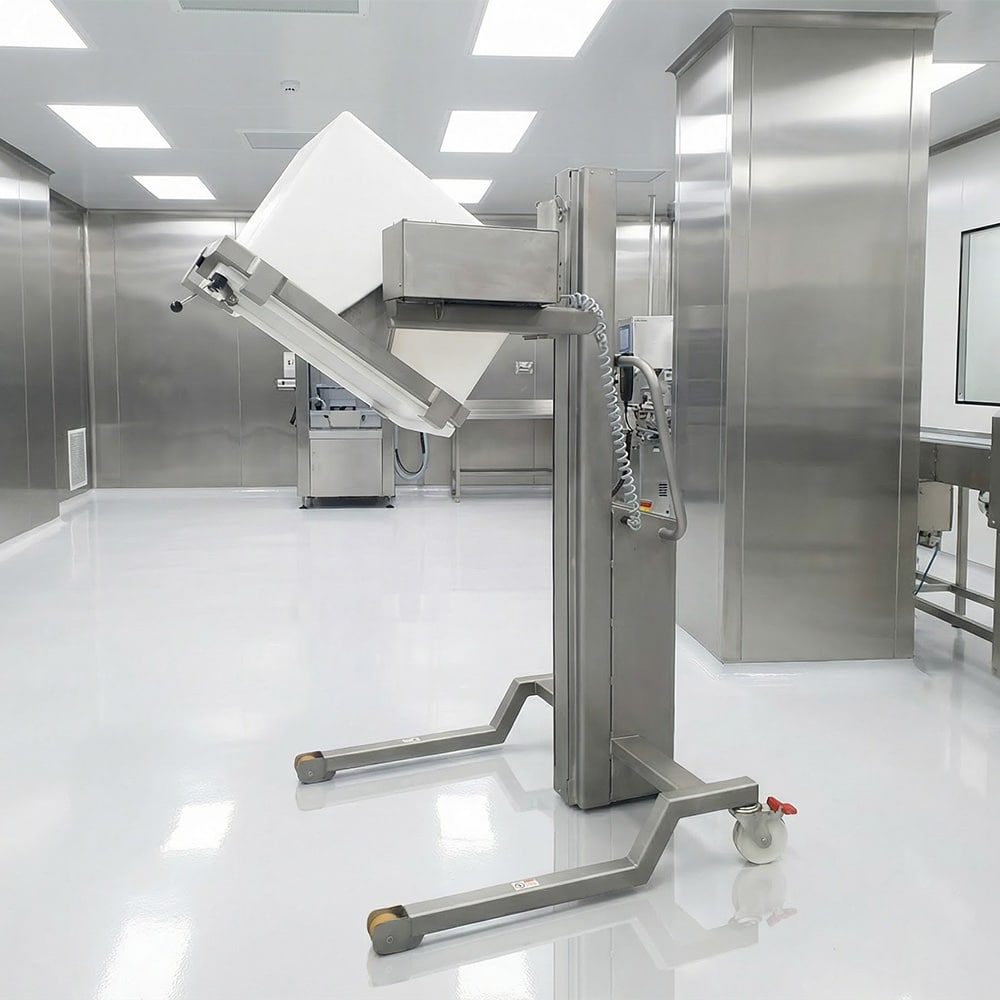

The Crate Heavy Duty Stainless Steel Electric Lifter is a high-capacity crate lifter built for controlled crate handling and container transfer in washdown and hygiene-sensitive environments. Designed for food production, pharmaceutical operations, clean manufacturing and wet processing areas, it combines reinforced lifting performance with stainless steel corrosion resistance for sites that cannot compromise on cleanability.
With capacity up to 300kg and a 500mm load centre, this electric lifter supports stable lifting, placement and repositioning of heavier crates, totes and containers across demanding workflows. Electric lift enables smooth vertical movement for safer handling, while platform, fork and clamp attachment options allow the unit to be matched to different crate formats, access conditions and handling methods. Fixed front castors improve directional stability under load, and rear swivel castors with brakes support secure positioning at benches, conveyors, process stations and despatch points.
This model is suited to operations that require both heavy-duty performance and hygiene compliance. For lower load weights or tighter spaces, a lightweight stainless model may offer greater agility, while the heavy-duty steel version is the right fit for dry industrial areas where washdown resistance is not required.
Highly Configurable
The Crate Heavy Duty Stainless Steel Electric Lifter is designed as a fit-for-purpose solution that can be configured around the crate type, handling method and site environment.

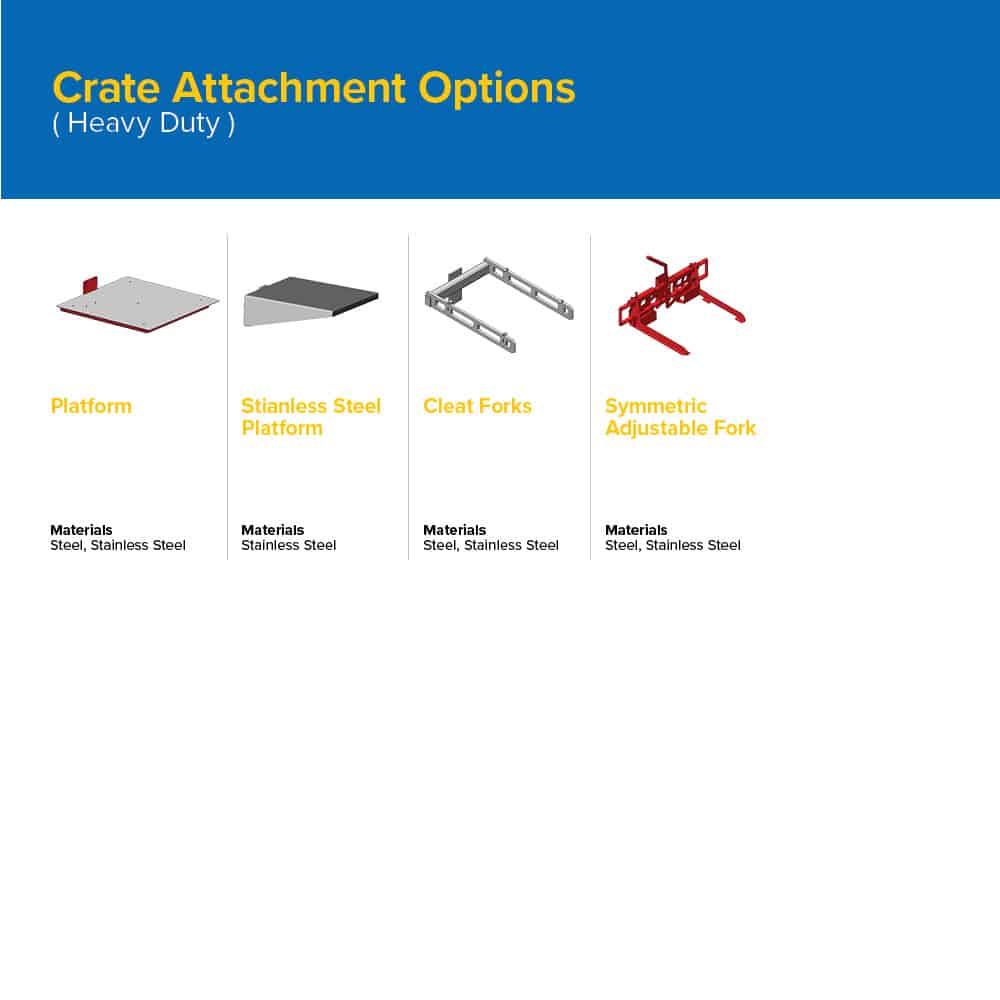

Attachment options:
Stainless Steel Platform Attachment
Ideal for supporting crates with flat bases where full underneath support is preferred. Suits lift-and-place handling between benches, conveyors and workstations.
External Clamp Attachment
Provides side grip for rigid crates or containers where platform access is limited or where faster pick-up is needed without full base support.

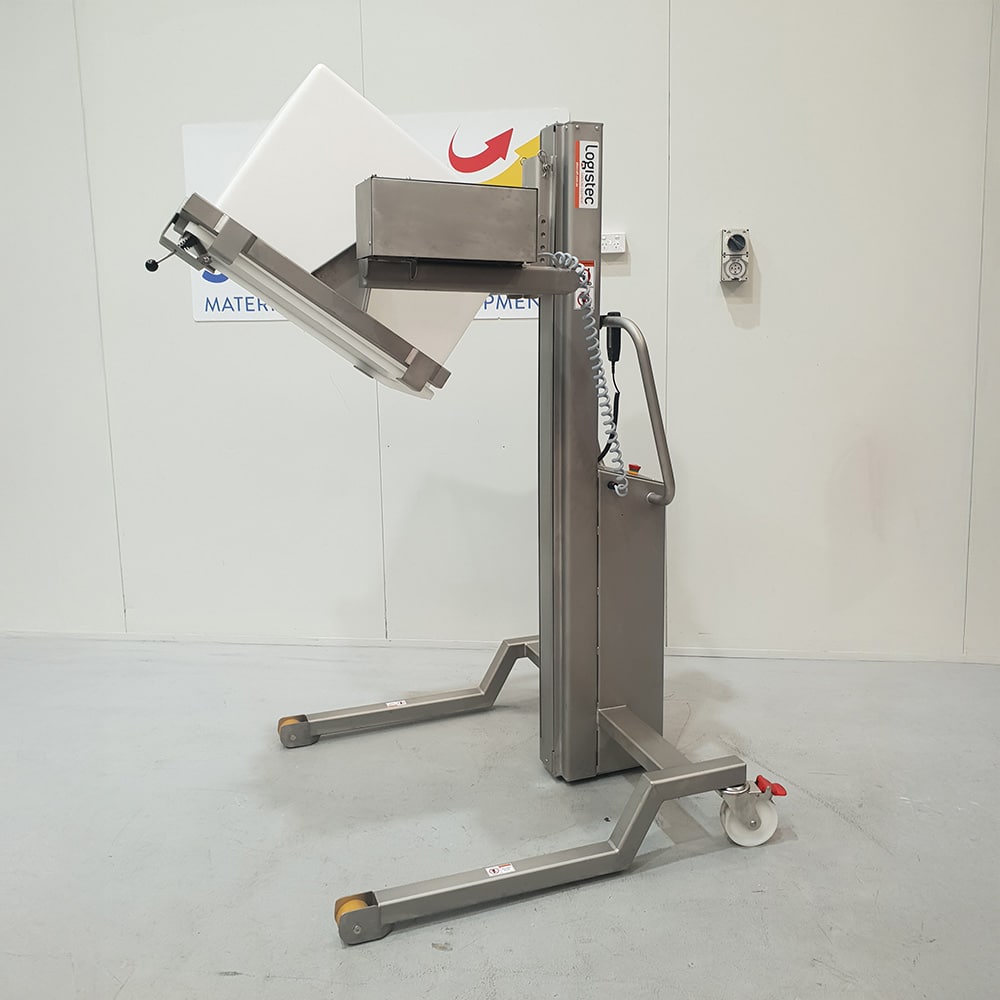

External Electric Clamp and Rotate Attachment
Adds powered grip and rotation for applications where crates need to be turned, reoriented or presented at a precise angle during handling.
Symmetric Adjustable Fork – 150kg Customisable
Useful where crate widths vary and fork spacing needs to be matched for stable support and access flexibility.
8 Cleat Forks
Suited to crates or containers that benefit from more secure fork engagement and added stability during transport or placement.
Attachment choice changes the workflow significantly: platforms support straightforward transfer, forks improve access flexibility, and clamp options enable secure gripping or controlled reorientation where crate position matters.
| Castor Size (mm) | Front Caster wheels: Fixed direction, 85mm diameter | Rear Caster wheels: Swivel with brakes, 125mm diameter |
| Finish | Stainless Steel |
| Load Capacity (kg) | Upto 300kg |
| Lifting Height (mm) | Dependable to Custom mast height |
| Load Centre Distance (mm) | 500mm |
| Mast Height (mm) | Fully Customiable |
| Max Lift Height (mm) | Upto 2050mm |
| Power Source | Electric |
| Weight (kg) | Upto 105kg |
