Description

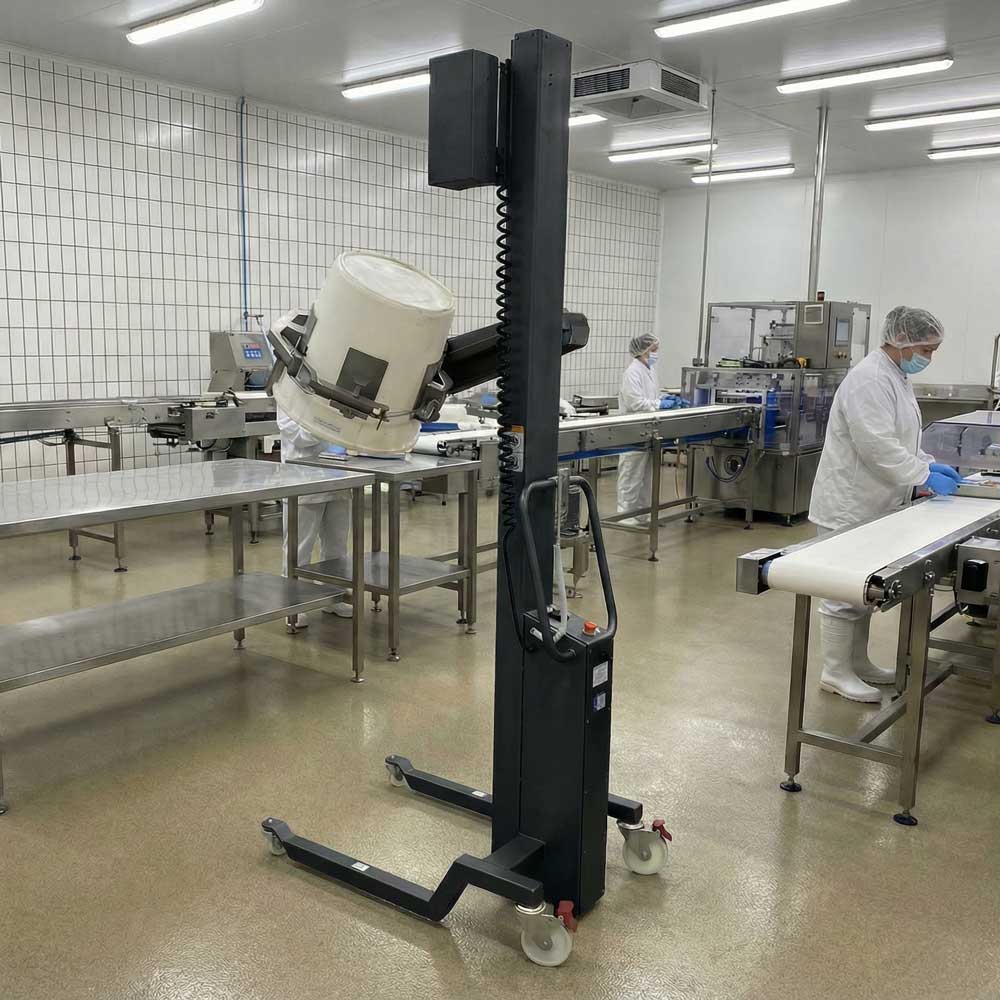

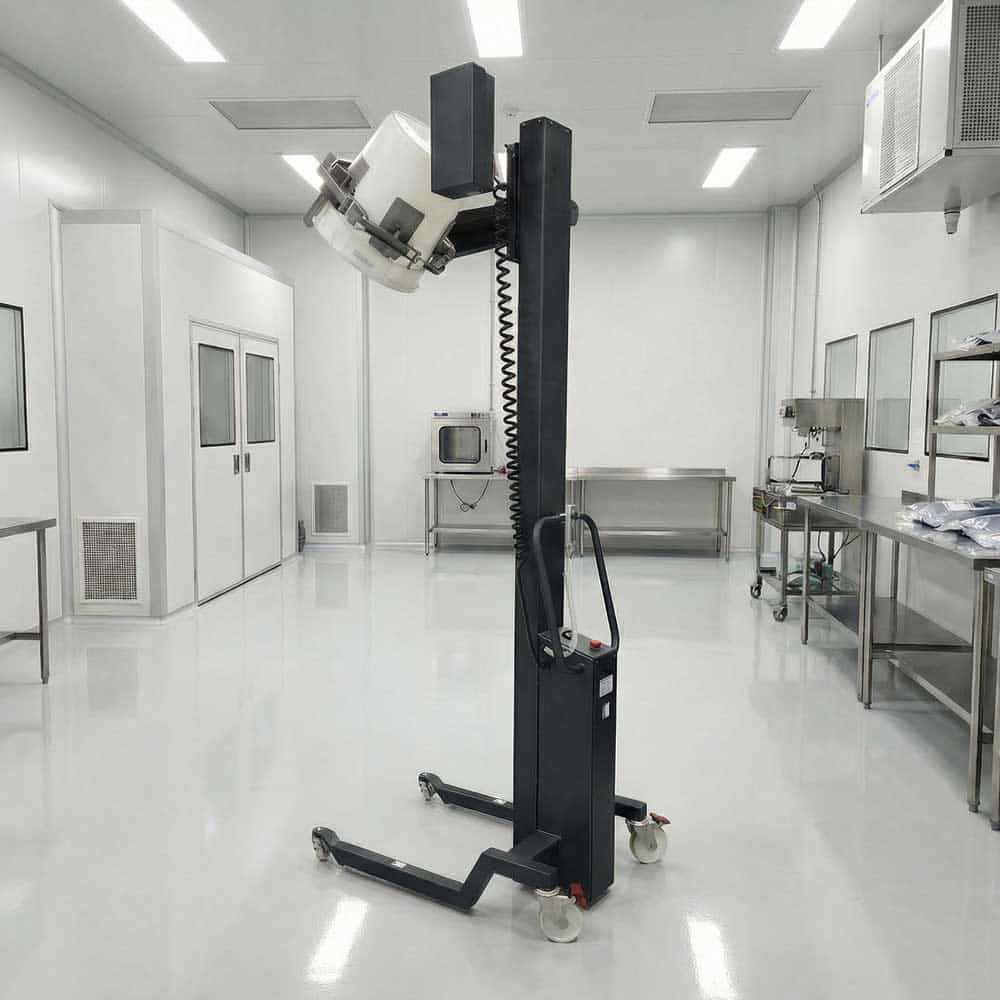

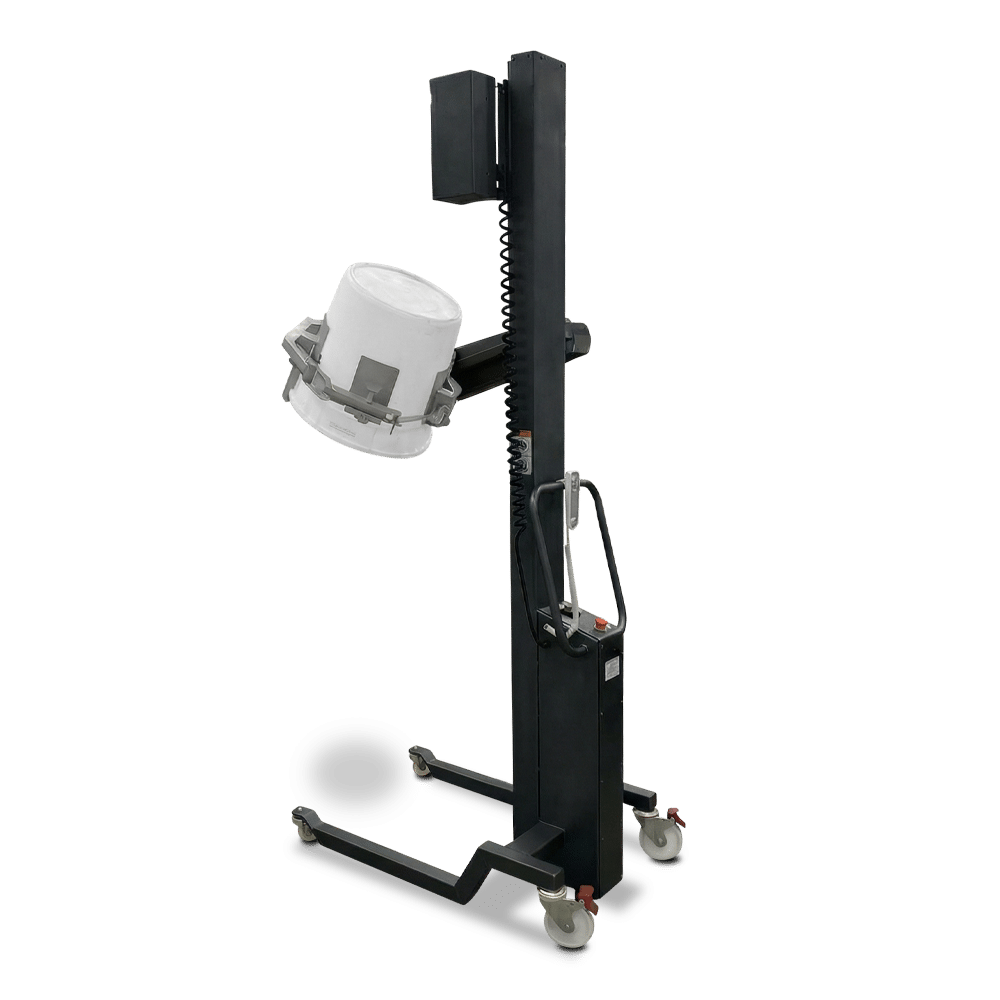

Bucket Heavy Duty Electric Lifter is a reinforced, steel bucket lifter designed for controlled gripping, lifting and pouring in higher-load workflows. Suited to production, batching, wash bays, maintenance areas and chemical/processing environments, it helps operators grip, lift, tilt and rotate buckets and similar containers with electric lift assistance—reducing manual handling risk and improving pour accuracy.

Built for demanding cycles with up to 300kg capacity and a 500mm load centre, this heavy duty unit prioritises stability and repeatable positioning. Fixed-direction front castors support straight tracking under load, while the clamp-and-rotate attachment options allow you to match the handling method to the product, container shape and decant requirements. The result is cleaner transfers, less spillage, and better control at height—whether you’re dispensing into mixers, hoppers or IBCs.

As part of Sitecraft’s purpose-built lifter range, it’s configured around the job rather than a one-size setup. For lighter, frequent bucket moves in tighter aisles, the lightweight bucket lifter range delivers the same controlled handling approach in a more agile frame.

Highly Configurable

  • Attachments: clamp, tilt and rotate options to suit bucket style and decant process
  • Mast / lift height: custom mast height to match hoppers, benches, mixers and process equipment
  • Controls: electric lift for controlled raising/lowering (no assumed speed modes)
  • Leg / base setup: configured for clearance and stability around container footprint
  • Castors: fixed-direction 85mm front wheels to suit heavier travel paths
  • Capacity alignment: up to 300kg depending on attachment selection and application

Attachment Options for Bucket Handling

Electric Clamp With Rotation System : powered grip with controlled rotation for repeatable pouring; ideal where spillage control and accurate dispense angles matter.

External Electric Clamp and Rotate Attachment : adds clamp-and-rotate capability when you need rotation control but want flexibility in how the container is presented to the station.

Manual Front Tilting Gripper : simple mechanical tilt for straightforward decanting and tip-out tasks; suited to lower-complexity pours and quick changeovers.

Attachment choice changes the workflow: manual tilt = fast, simple decant, electric clamp/rotate = controlled, repeatable pours, external clamp/rotate = flexibility around the station layout.

Bucket Heavy Duty Electric Lifter

-
+
Specifications
Castor Size (mm) Front Caster wheels: Fixed direction, 85mm diameter | Rear Caster wheels: Swivel with brakes, 125mm diameter
Finish Stainless Steel
Load Capacity (kg) Upto 300kg
Lifting Height (mm) Dependable to Custom mast height
Load Centre Distance (mm) 500mm
Mast Height (mm) Fully Customiable
Max Lift Height (mm) Upto 2050mm
Power Source Electric
Weight (kg) Upto 105kg
Our support continues well beyond delivery. Sitecraft Product Care helps you get the most from your equipment throughout its working life.
Product Guidance and Support

Access operating guidance, manuals and practical support from the Sitecraft team.

Nationwide Servicing Network

For powered equipment, our technicians and trusted service partners provide maintenance and repair support across Australia.

Spare Parts and Warranty Support

Get help sourcing replacement parts and checking warranty coverage when you need it.

We offer delivery across Australia, with freight costs based on your order and delivery requirements.

For shipments over 20 kg, freight costs are subject to a forklift or stacker being available onsite for unloading.

*Additional charges may apply if tailgate unloading is required.

Please contact us before ordering if you require this service.

Returns are subject to our applicable terms and conditions. For full details on delivery requirements, freight and returns, please view our Delivery & Returns Policy.
