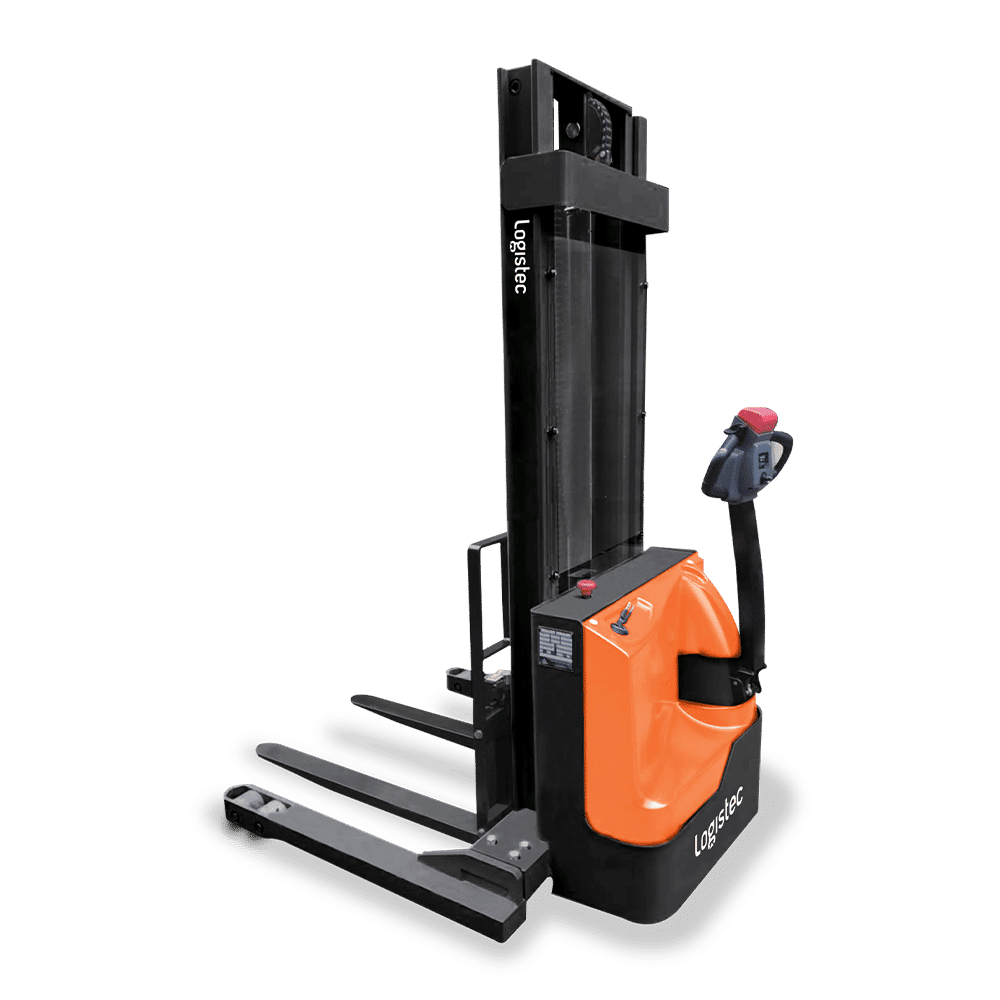

Logistec Electric Straddle Stacker | 1500kg | 3600mm Lift Height

Logistec Electric Straddle Stacker | 1500kg | 3600mm Lift Height

Code: 3381370

The Logistec Straddle Stacker is made to high standards with a focus on reliability. Parts and service backup is provided by Sitecraft. It features innovations such as an efficient regenerative braking system and electric power steering. Some standard features include adjustable forged fork tines. Safety features include explosion-proof mast hydraulics and an anti-roll back system to prevent roll back on ramps or slopes.

Load Capacity: 1500kg SWL
Load Centre: 600mm
Lift Height: 3600mm
Height - Mast Lowered: 2128mm
Overall Length: 1650m
Fork Length: 1070m
Distance between Fork Arms: 200-780mm
Battery: 24V / 125Ah

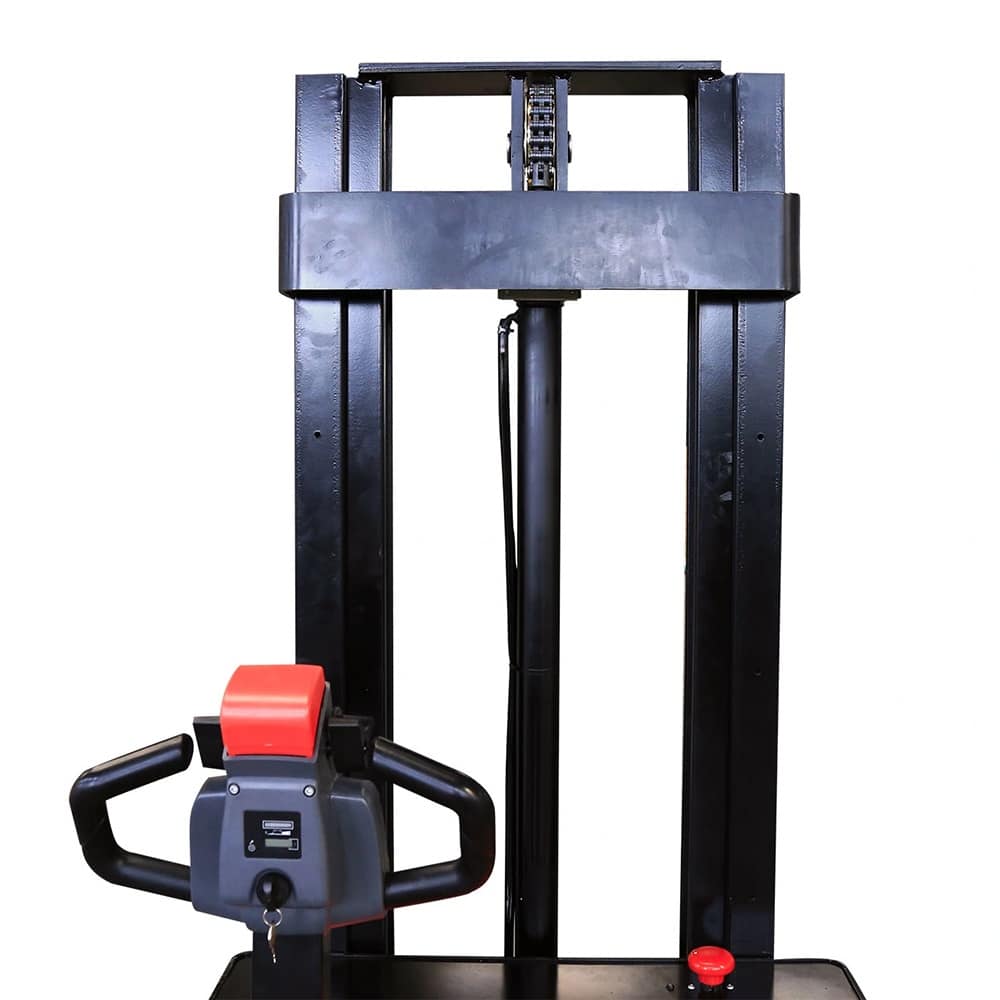

Duplex Mast Option for 3600mm Lift Height.

Product Features

Turning Radius: 1400mm
Includes Charger
Travel Speed : 5km/h
Maximum Gradient Unladen: 16%
Maximum Gradient Laden: 8%

Specifications

Product Code 3381370
Product Name Logistec 1500/3600 Electric Straddle Stacker
Fork Length (mm) 1070
Length (mm) 1650
Load Capacity (kg) 1500
Load Centre Distance (mm) 600
Mast Height (mm) 2128
Max Lift Height (mm) 3600

Specifications

Product Code 3381370
Product Name Logistec 1500/3600 Electric Straddle Stacker
Fork Length (mm) 1070
Length (mm) 1650
Load Capacity (kg) 1500
Load Centre Distance (mm) 600
Mast Height (mm) 2128
Max Lift Height (mm) 3600
