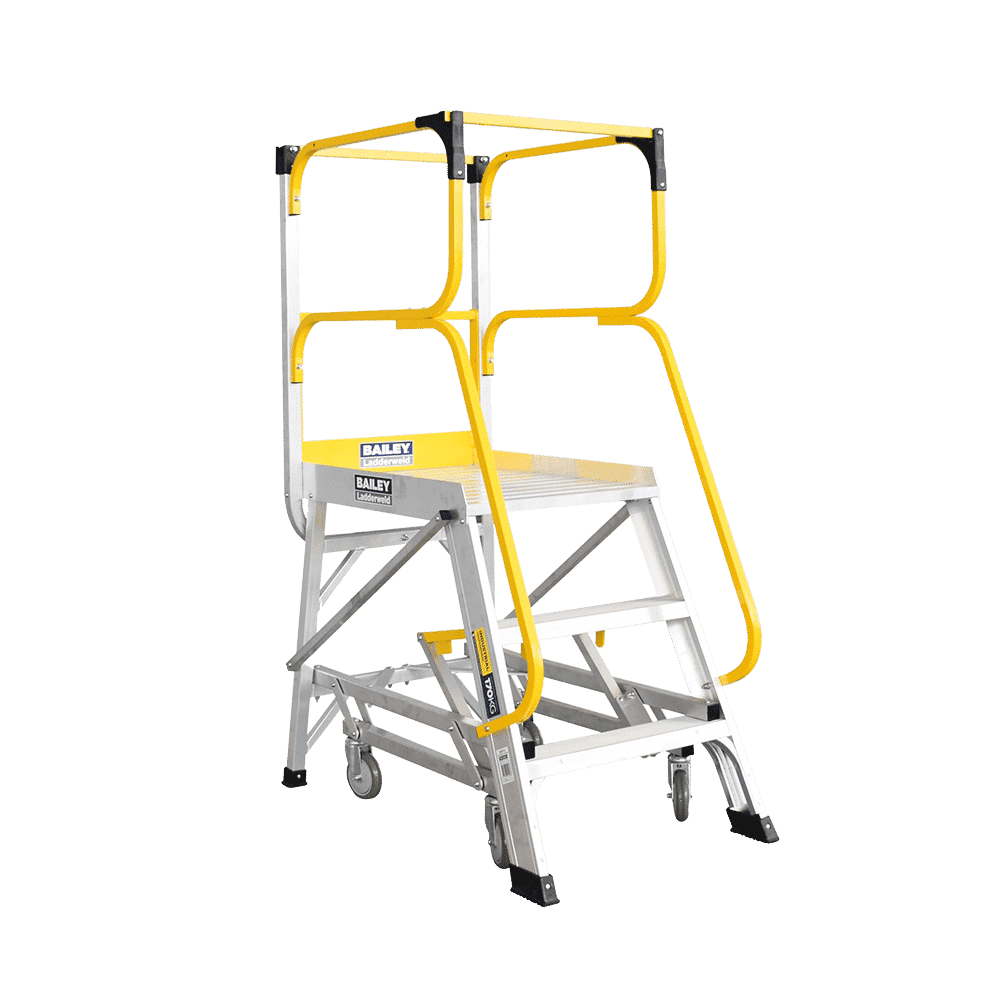

3 Step Model

Code: 10061043
The Access Platform is designed for safe, easy and efficient use for tasks such as stock picking, mezanine or truck access and vehicle or plant maintenance. It's design allows it to be used as a step-through ladder as required by removal of the rear toe boad and mid rail. The front and rear top rails act as boom gates that can be lifted to give access. A shelf is included as standard, providing an idea place to place stock, components or tools. Four swivel wheels can be deployed by pulling and latching a yellow handle over the third step. This also acts as a deterent to anyone attempting to climb the ladder when the wheels are deployed. These ladders are made to Australian standard AS/NZA 1892.1 * Super strong ‘fully welded’ design fabricated from heavy duty aluminium * Steel bracing under bottom tread and side bracing provides additional protection from impact damage * 100mm deep treads improve safety and comfort when climbing * Industrial duty rating for use on commercial sites * Meets Work Cover requirements (safety gate + 900mm handrail, toeboard)
Platform Height: 828mm
Base Dimensions: 1168mm L x 724mm W
Platform Dimensions: 800mm L x 590mm W
Weight Capacity: 170kg
Unit Weight: 38.1kg

Specifications

Product Code 10061043
Product Name 3 Step Model
Base Dimensions (mm) 1168L x 724W
Platform Height (mm) 828

Specifications

Product Code 10061043
Product Name 3 Step Model
Base Dimensions (mm) 1168L x 724W
Platform Height (mm) 828
