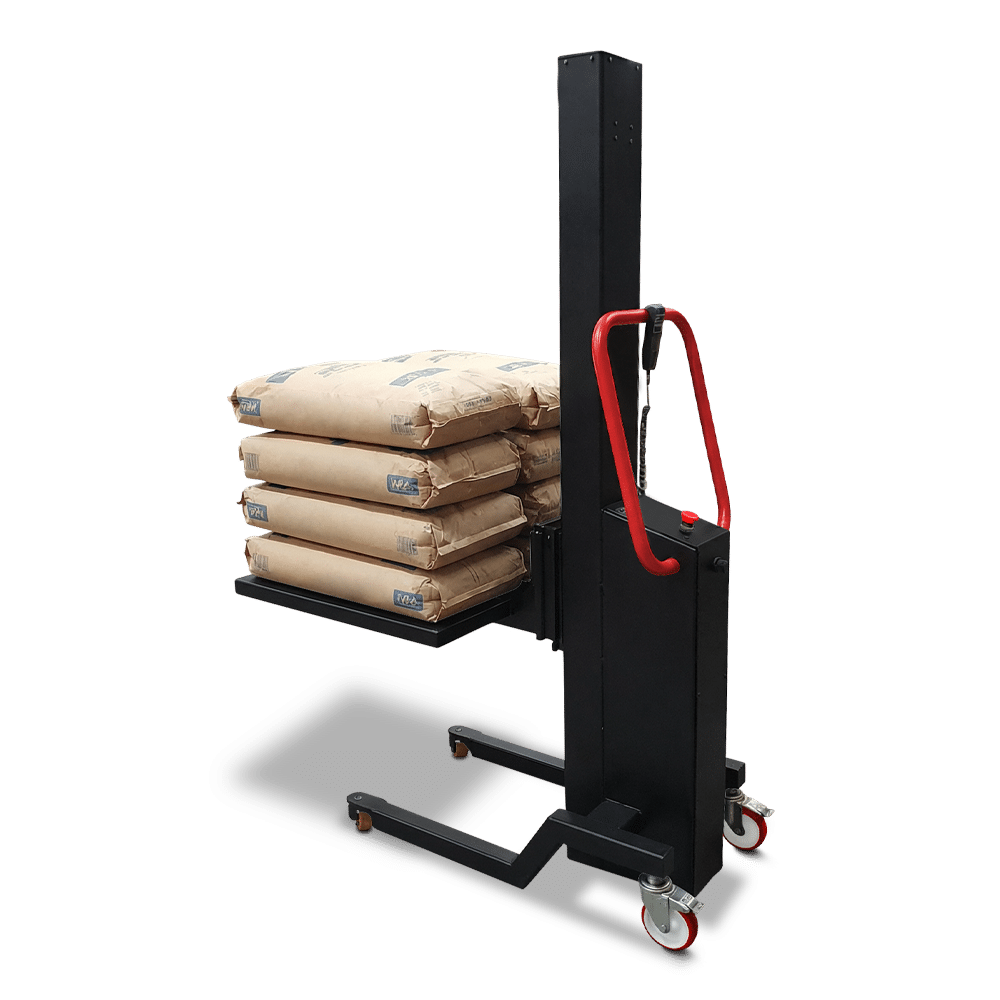

The Bag Heavy Duty Electric Lifter is a high-capacity bag lifter designed for controlled handling of heavier bags in busy industrial stores and production supply areas. Built in steel for everyday durability, it supports loads up to 300kg at a 500mm load centre and can be specified with a custom mast height to suit your racking, hopper, bench or staging requirements.

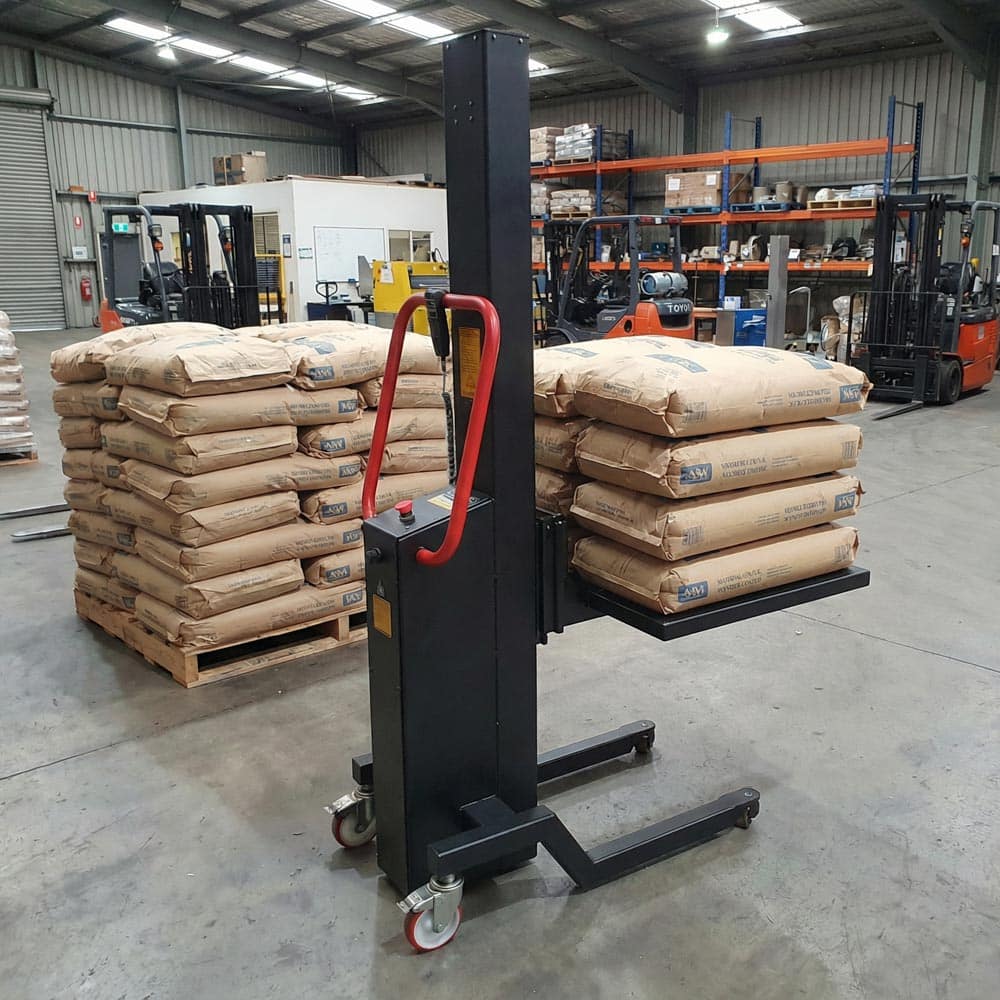

This unit suits receiving, ingredient stores, batching prep areas, general manufacturing and warehouse environments where bags are moved, staged and positioned repeatedly. Electric lift gives smooth raise/lower control to reduce manual strain and improve placement accuracy—whether you’re lifting bags onto benches, presenting product to operators, or transferring bags into stillages and process stations.

Attachment choice is what makes it work like a purpose-built piece of bag handling equipment: use platforms for stable support under soft loads, a roller deck for slide-on/slide-off workflows, or a crane option when bags need to be hoisted from loops or transferred into equipment without dragging. Fixed-direction 85mm front castors help the heavier frame track straight under load.

For tighter aisles and frequent lighter bags, step down to the lightweight bag lifter. For washdown or corrosion-sensitive sites, choose the stainless variant. For range guidance, see Sitecraft’s purpose-built lifters page.

Highly Configurable:

• Attachments (primary lever) – Platforms and crane options configured around bag type, handling method and discharge workflow.
• Mast / lift height options – Fully customisable mast to match site heights and transfer points.
• Lift height range – Set by mast selection; specified to your application.
• Controls – Electric lift controls for controlled raising/lowering (no unverified speed claims).
• Leg / base configuration – Base can be aligned for pallet approach, stillage access and stability under soft loads.
• Castor options – Fixed-direction 85mm front castors for predictable tracking (rear configuration as specified).
• Capacity alignment – Up to 300kg at 500mm load centre; capacity matched to attachment and load footprint.

Attachment Options for Bag Handling

HDPE Platform – 60kg
For lighter bags where easy cleaning and low-friction support is useful.

HDPE Platform – 85kg
A practical day-to-day deck for standard bag sizes and routine staging.

HDPE Platform with Roll – 85kg
Designed for slide-on/slide-off handling to reduce snagging and dragging when positioning bags onto benches or into stations.

HDPE Platform – 200kg
For heavier bags where a higher-rated platform improves stability and reduces flex under load.

Stainless Platform – 60kg
When a stainless deck is preferred for specific product areas or cleaning regimes.

Stainless Platform – 85kg
For heavier bag loads where a stainless contact surface is required.

Stainless Platform – 200kg
Higher-rated stainless option for larger bags and higher loads needing stable support at height.

Crane – 200kg
For hoisting bags with loops or lifting points—useful for transferring into hoppers, mixers or process equipment without sliding the bag.

How attachment choice changes workflow:
Platforms suit “carry and place” staging; roller decks suit “slide and position” transfers; the crane suits “hoist and present” handling where bags must be suspended or fed into equipment.
