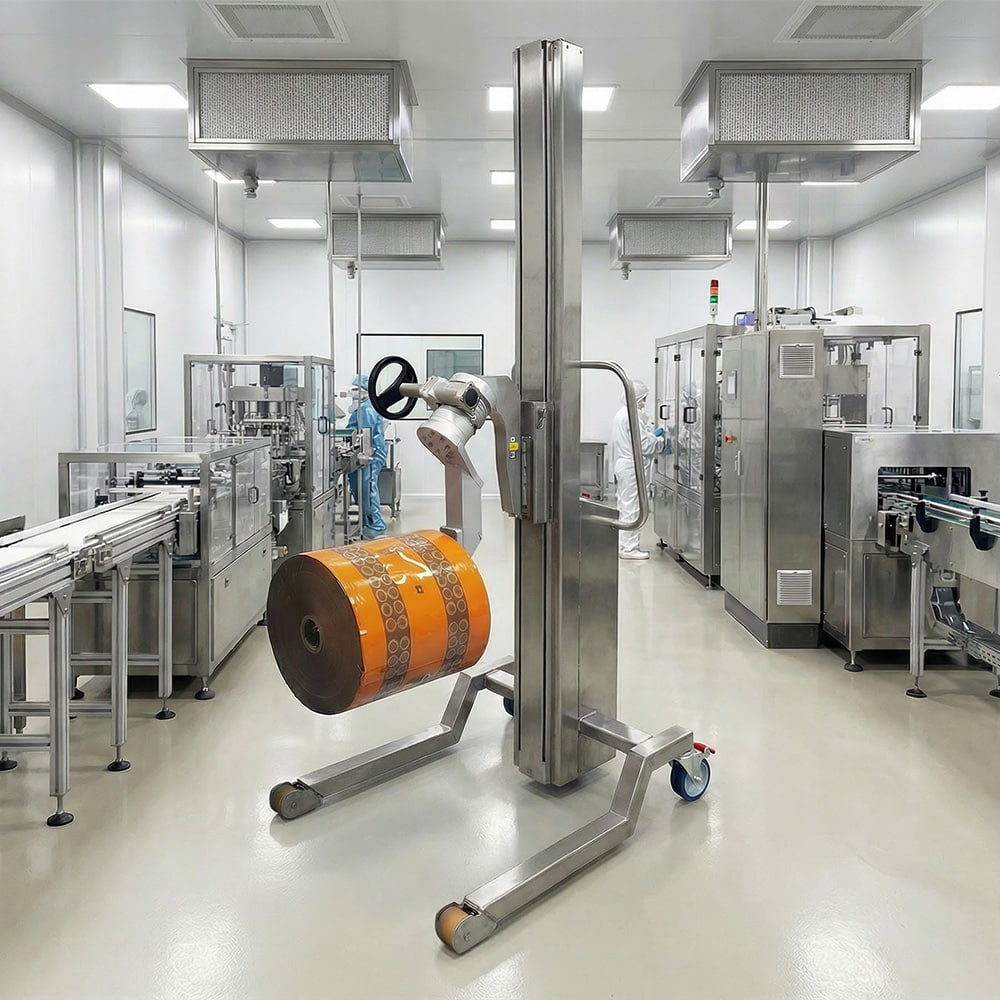

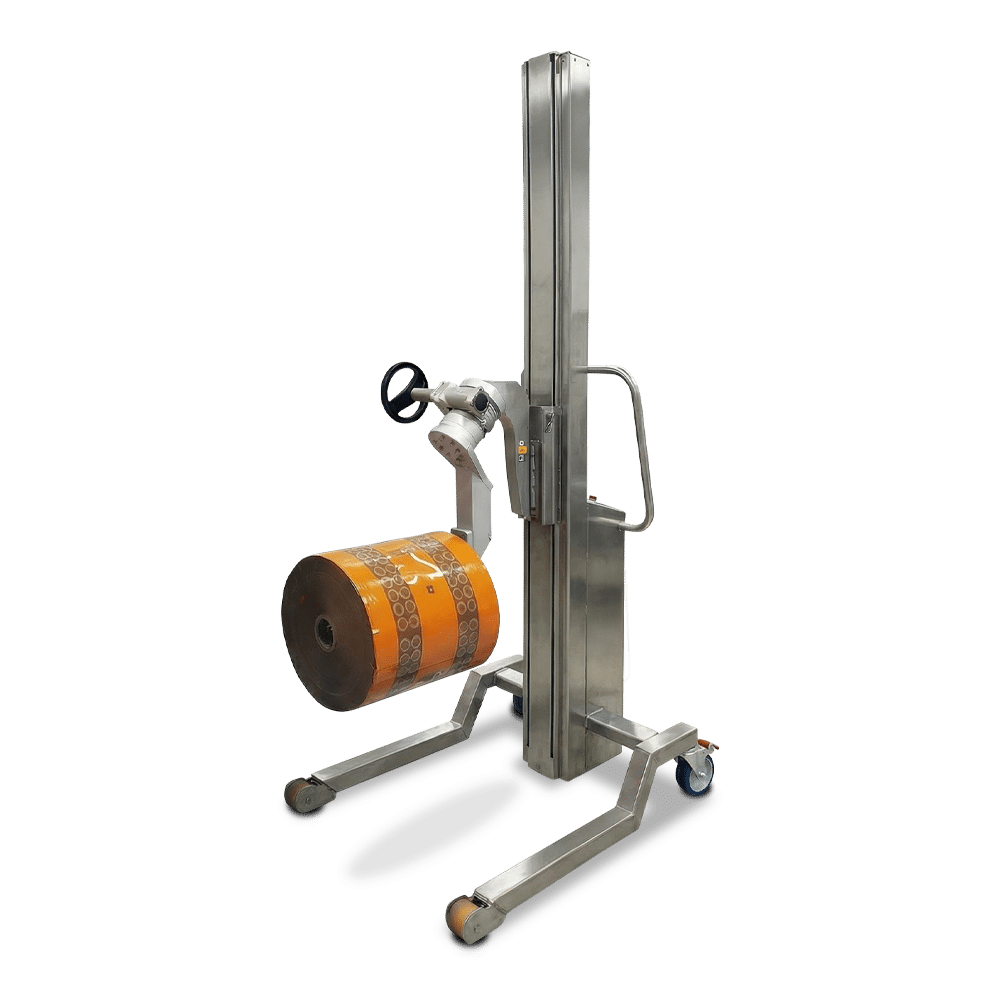

Roll Heavy Duty Stainless Steel Electric Lifter is designed for high-capacity roll handling equipment in hygiene-sensitive environments. Combining a reinforced heavy-duty frame with stainless steel construction, it supports heavier rolls in food production, film processing, pharmaceutical manufacturing and clean converting facilities where corrosion resistance and washdown compatibility are essential.

With capacity up to 300kg and a 500mm load centre, this roll lifter provides stable lifting and controlled positioning during machine loading, changeovers and web handling tasks. Electric lift operation reduces manual handling strain, while fixed 85mm front castors maintain straight tracking under load and 125mm braked swivel rear castors provide controlled manoeuvrability and secure staging.

Attachment options allow the unit to adapt to different roll core sizes, diameters and handling styles — from simple shaft-based pickup to powered gripping for higher repetition workflows. This model is built for heavier rolls in hygiene-critical production zones. For industrial areas without washdown requirements, the heavy-duty steel roll lifter offers equivalent capacity in a standard finish.

Highly Configurable

• Attachments: boom and core gripper options matched to roll diameter, core size and handling method
• Mast / lift height: fully customisable mast configurations to align with unwind stands and processing equipment
• Controls: electric lift system for smooth, controlled raising and lowering
• Leg / base configuration: arranged for load stability and clearance around machines and storage bays
• Castors: fixed 85mm front castors for straight travel; 125mm braked swivel rear castors for controlled positioning
• Capacity alignment: up to 300kg depending on roll geometry and selected attachment

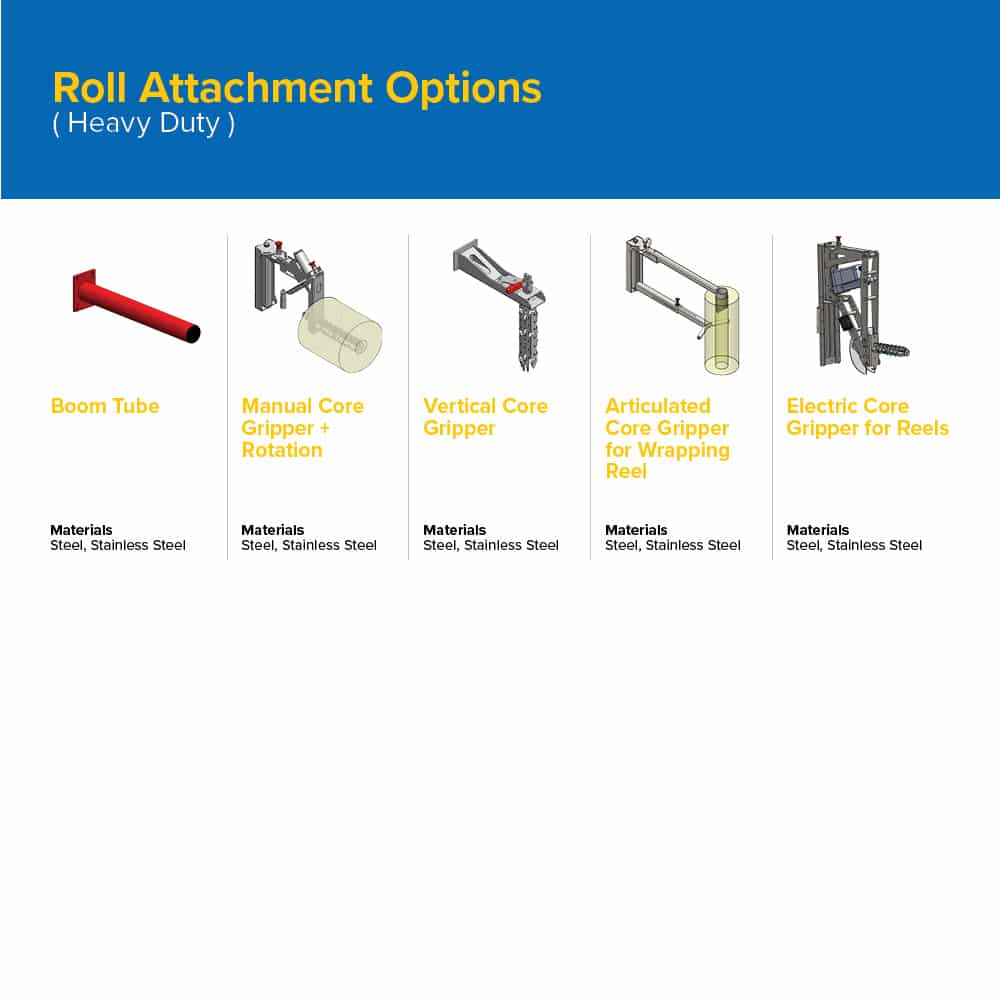

Attachment Options for Roll Handling

Manual Core Gripper for Reels: Mechanical core engagement suited to consistent roll lifting and straightforward changeovers.

Boom – Tube Ø35: Ideal for shaft-based roll transfer where rolls are lifted via mandrel or bar.

Articulated Core Gripper for Wrapping Reel: Supports controlled presentation of rolls during wrapping or web handling processes requiring angle adjustment.

Vertical Core Gripper for Reels: Maintains upright roll orientation for precise spindle alignment and stable loading.

Electric Core Gripper for Reels: Powered gripping for high-frequency handling where repeatability and reduced operator effort are critical.

Attachment choice influences workflow: boom handling supports simple transfer tasks, while core grippers prioritise controlled alignment and safer web handling integration.
