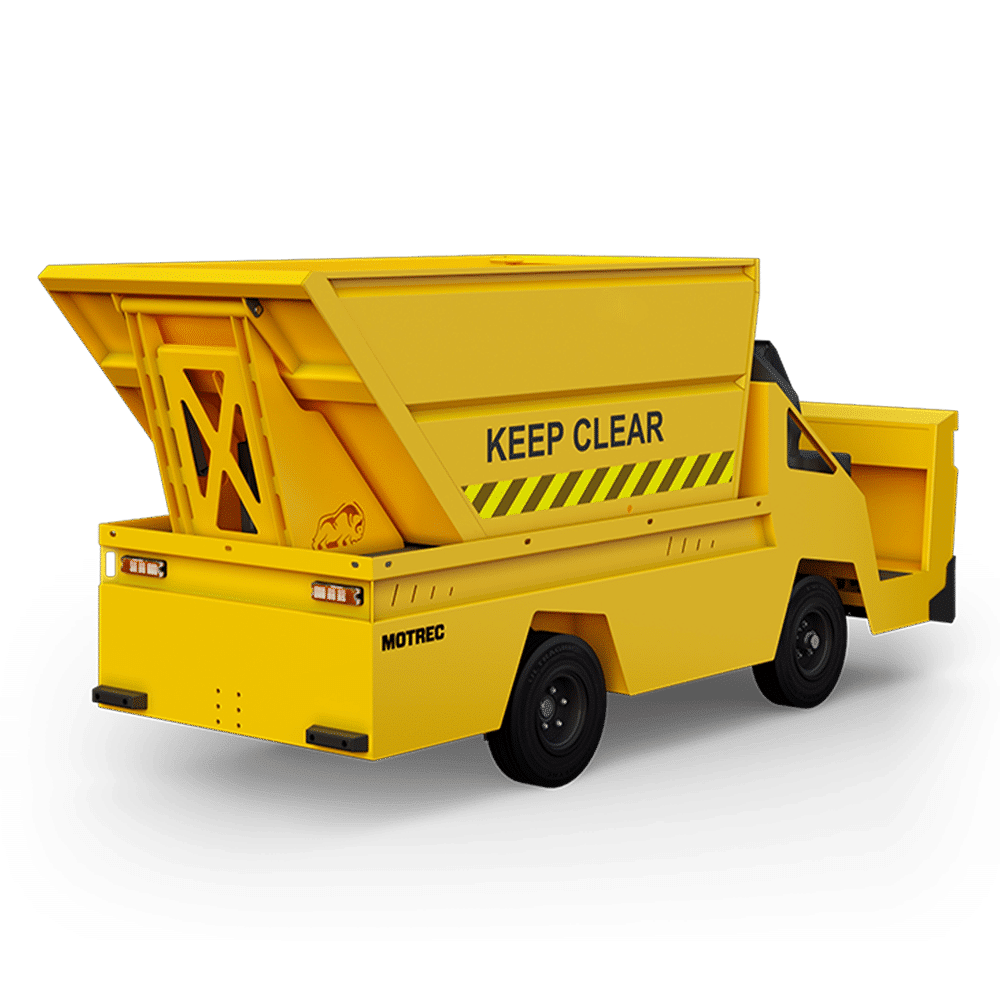

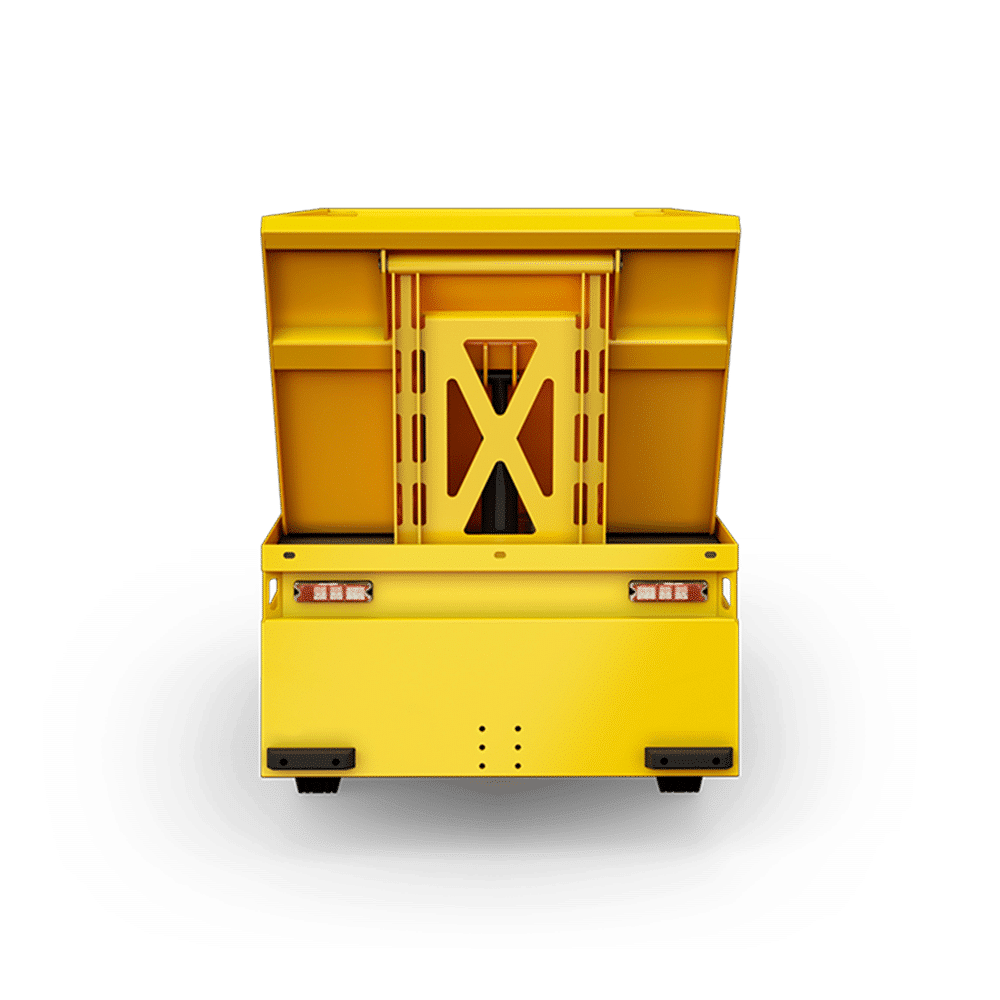

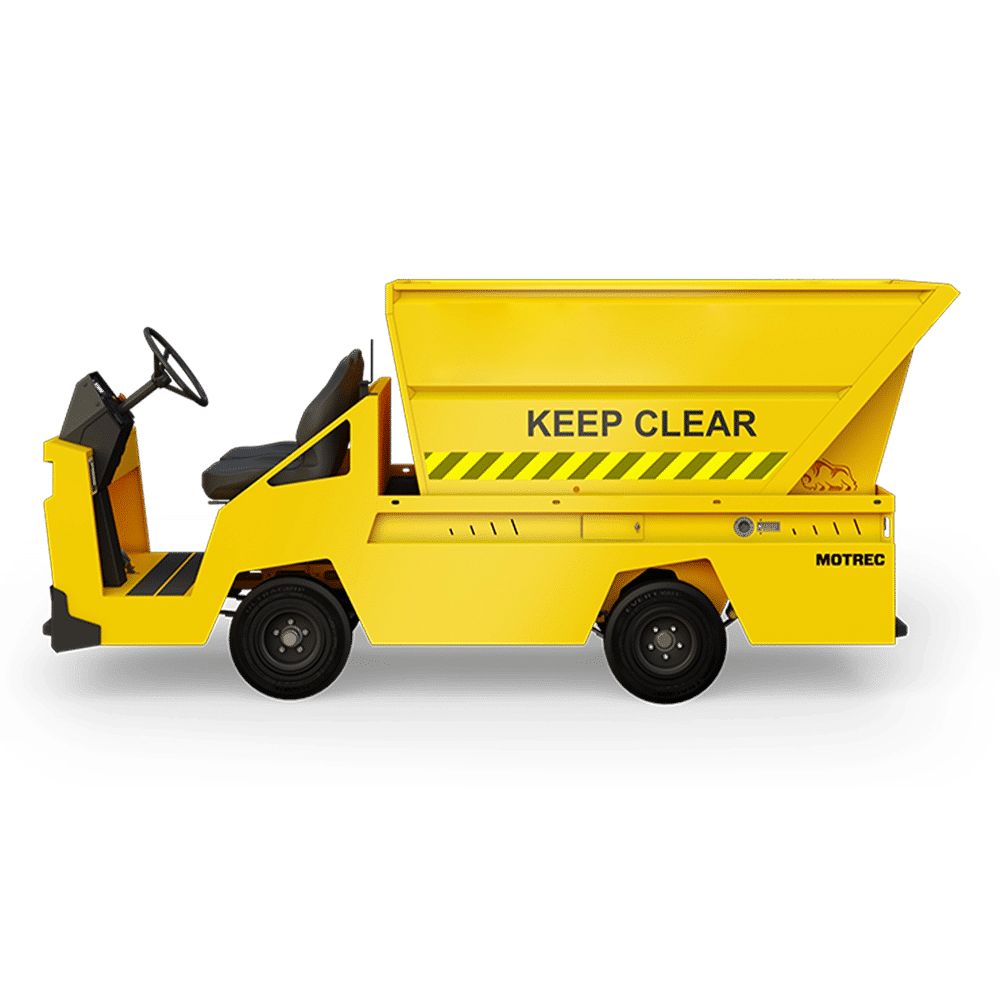

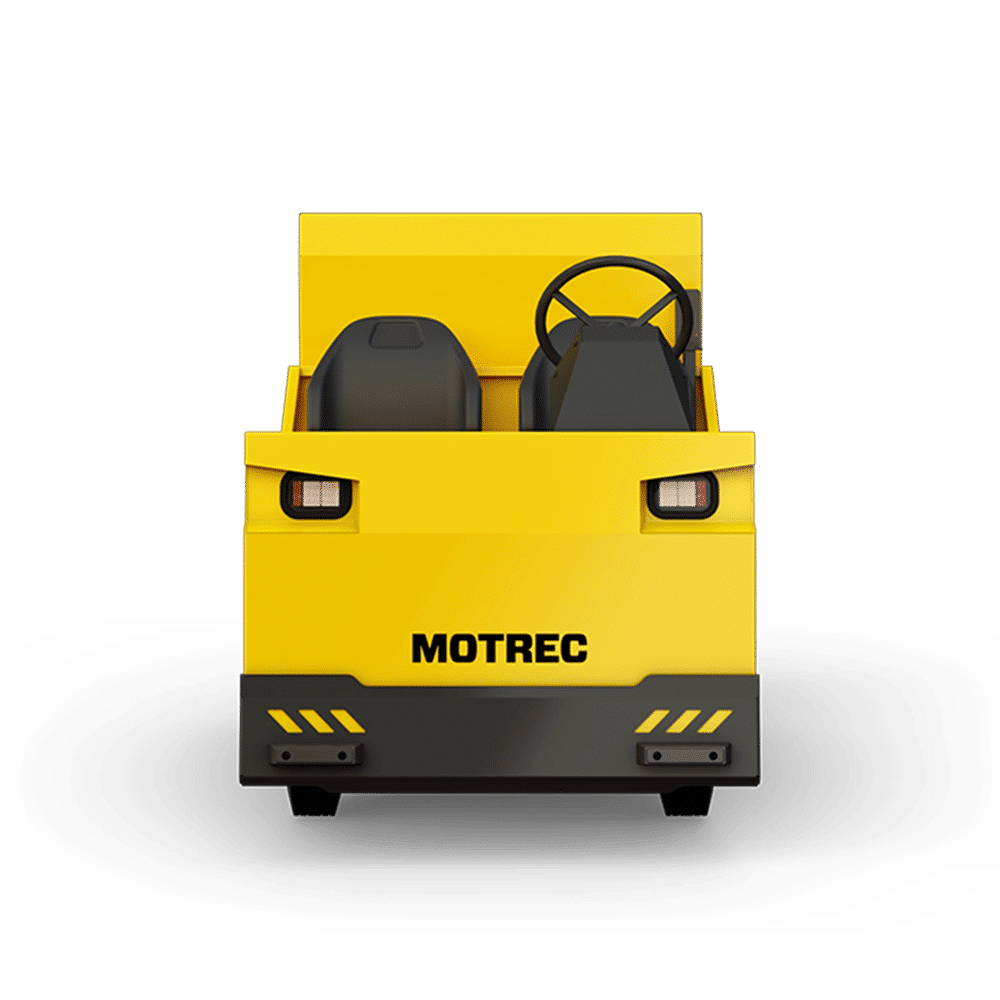

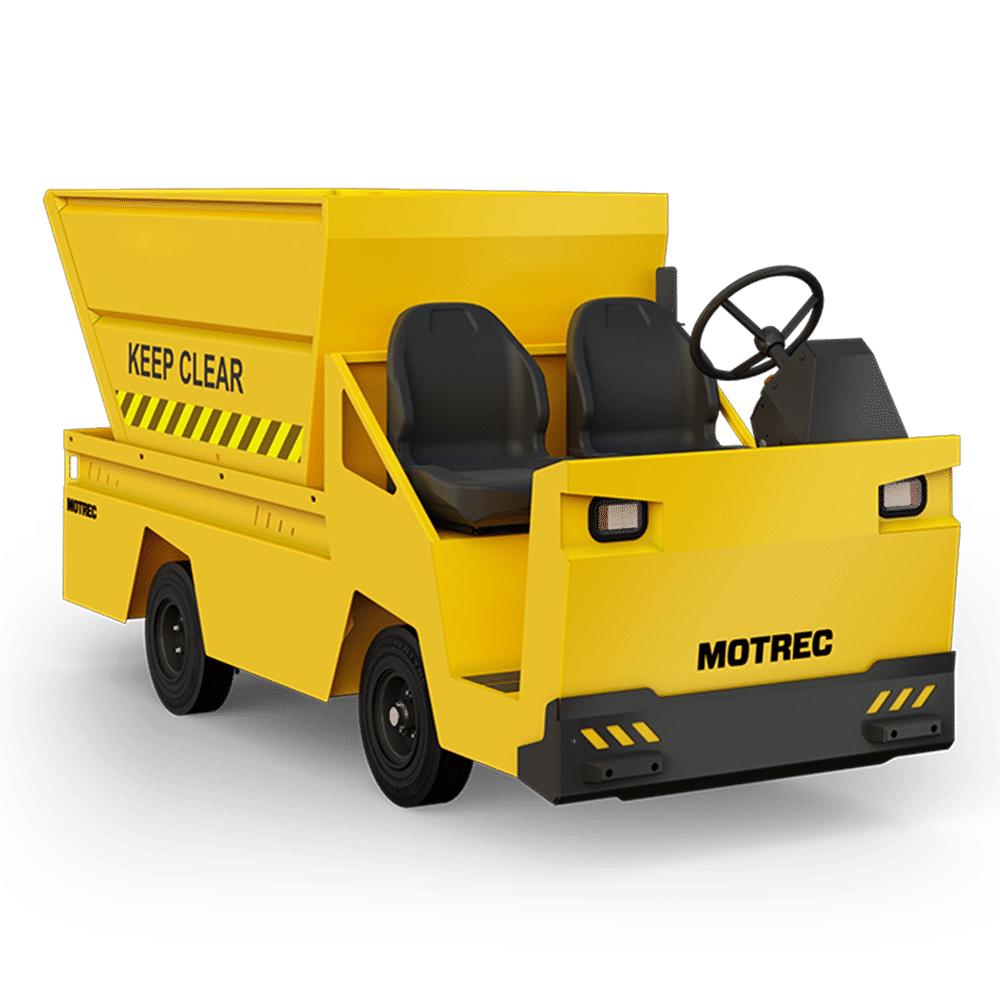

Solve your trash problems and improve maintenance productivity. This zero-noise, zero-emission refuse hauler makes a great choice for shopping malls, campuses, resorts, and more. It holds an impressive 0.5 tons of trash, reducing the number of return trips needed per shift. Optional cab and roll-out battery compartment. A safe, rugged vehicle with unlimited configurations.
48V | 48V Lithium | |||||
|---|---|---|---|---|---|---|
Power Train | ||||||
|---|---|---|---|---|---|---|
Motor | 15 HP brushless AC motor | 15 HP brushless AC motor | ||||
Drive Axel | Helical gear differential | Helical gear differential | ||||
Transmission | Direct drive | Direct drive | ||||
Controller | AC Electronic speed controller | AC Electronic speed controller | ||||
Energy | ||||||
|---|---|---|---|---|---|---|
Voltage
| 48V | 48V | ||||
Battery
| Eight 6V-225AH batteries | Lithium 48V-360Ah 18.6kwh, Lithium 48V-180Ah 9.3Kwh, Lithium 48V-120Ah 6.2Kwh | ||||
Charger
| High-frequency charger (85-265VAC / 45-65Hz, 1kw), Built-in and automatic | 48V High-frequency on-board charger 3.6Kwh, 48V High-frequency on-board charger 1.2Kwh | ||||
Chassis | ||||||
|---|---|---|---|---|---|---|
Body | – | All-steel unibody construction. Powder Coating | ||||
Suspension | Dual leaf springs on front and rear | Dual leaf springs on front and rear | ||||
Brakes
| Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking | Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking | ||||
Wheels
| 5.7×8 LRD pneumatic tires | 5.7×8 LRD pneumatic tires | ||||
Steering | Automotive steering wheel | Automotive steering wheel | ||||
Seats | Two premium seats on slide adjusters | Two premium seats on slide adjusters | ||||
Equipment | ||||||
|---|---|---|---|---|---|---|
Lights | LED dual headlights & tail/brake lights, dual back-up lights | LED dual headlights & tail/brake lights, dual back-up lights | ||||
Indicators | Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability | Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability | ||||
Accessories | Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator | Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator | ||||
Safety | Deadman seat switch, reverse alarm, horn | Deadman seat switch, reverse alarm, horn | ||||
Specifications and standard equipment are subject to change without notice.
Power Train | ||
|---|---|---|
Motor | 15 HP brushless AC motor | |
Drive Axel | Helical gear differential | |
Transmission | Direct drive | |
Controller | AC Electronic speed controller | |
Energy | ||
|---|---|---|
Voltage
| 48V | |
Battery
| Eight 6V-225AH batteries | |
Charger
| High-frequency charger (85-265VAC / 45-65Hz, 1kw), Built-in and automatic | |
Chassis | ||
|---|---|---|
Body | – | |
Suspension | Dual leaf springs on front and rear | |
Brakes
| Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking | |
Wheels
| 5.7×8 LRD pneumatic tires | |
Steering | Automotive steering wheel | |
Seats | Two premium seats on slide adjusters | |
Equipment | ||
|---|---|---|
Lights | LED dual headlights & tail/brake lights, dual back-up lights | |
Indicators | Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability | |
Accessories | Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator | |
Safety | Deadman seat switch, reverse alarm, horn | |
Specifications and standard equipment are subject to change without notice.
Power Train | ||
|---|---|---|
Motor | 15 HP brushless AC motor | |
Drive Axel | Helical gear differential | |
Transmission | Direct drive | |
Controller | AC Electronic speed controller | |
Energy | ||
|---|---|---|
Voltage
| 48V | |
Battery
| Lithium 48V-360Ah 18.6kwh, Lithium 48V-180Ah 9.3Kwh, Lithium 48V-120Ah 6.2Kwh | |
Charger
| 48V High-frequency on-board charger 3.6Kwh, 48V High-frequency on-board charger 1.2Kwh | |
Chassis | ||
|---|---|---|
Body | All-steel unibody construction. Powder Coating | |
Suspension | Dual leaf springs on front and rear | |
Brakes
| Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking | |
Wheels
| 5.7×8 LRD pneumatic tires | |
Steering | Automotive steering wheel | |
Seats | Two premium seats on slide adjusters | |
Equipment | ||
|---|---|---|
Lights | LED dual headlights & tail/brake lights, dual back-up lights | |
Indicators | Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability | |
Accessories | Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator | |
Safety | Deadman seat switch, reverse alarm, horn | |
Specifications and standard equipment are subject to change without notice.
